Schematic Diagrams
GPU Decoupling - FBVDDQ B - 23
B.Schematic Diagrams

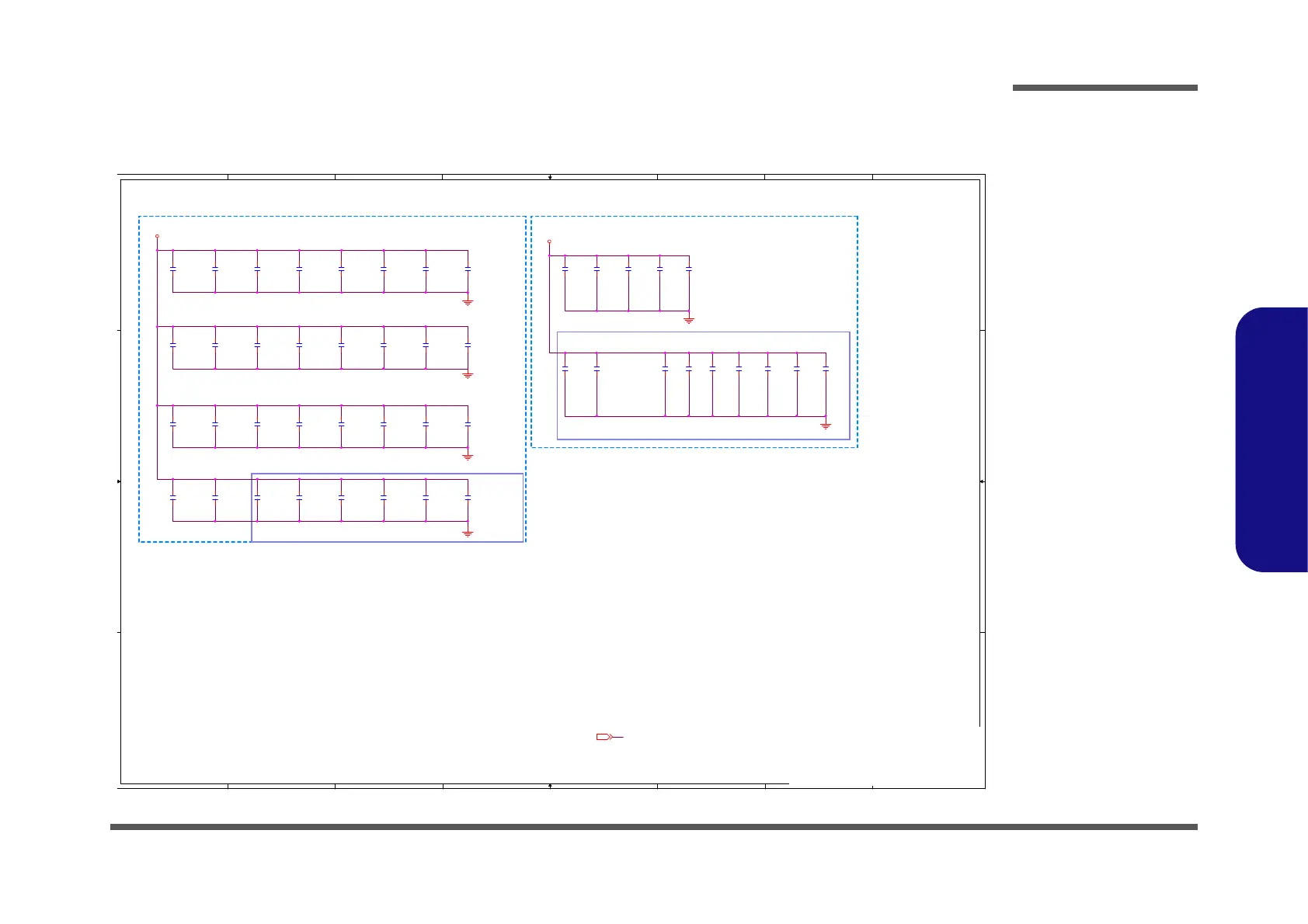

GPU Decoupling - FBVDDQ
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
Partition A
6x 1uF and 2x 10uF
Partition C
FBVDDQ_GPU
Partition B
Partition D
6x 1uF and 2x 10uF
6x 1uF and 2x 10uF
6x 1uF and 2x 10uF
Close to GPUUnder GPU
follow common design 22u_4V_X6S_06 E5/4*9, E3*7
RSVD.
GND
GND
GND
GND
GND
GND
FBVDDQ
FBVDDQ
FBVDDQ11,12,13,14,15,16,17,18,22,66
Title
Size Document Number Rev
Date: Sheet
of
6-71-NP5H0-D02
D02
A3
24 71Thursday, April 08, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
TGL-H+GN20-E3
[24] GPU Decoupling-FBVDDQ
Title
Size Document Number Rev
Date: Sheet
of
6-71-NP5H0-D02
D02
A3
24 71Thursday, April 08, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
TGL-H+GN20-E3
[24] GPU Decoupling-FBVDDQ
Title
Size Document Number Rev
Date: Sheet
of
6-71-NP5H0-D02
D02
A3
24 71Thursday, April 08, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
TGL-H+GN20-E3
[24] GPU Decoupling-FBVDDQ
C518
10u_4V_X6S_06
NV_0603
C522
1u_6.3V_X6S_04
NV_0402
C237
1u_6.3V_X6S_04
NV_0402
C364
22u_4V_X6S_06
NV_0603
C235
1u_6.3V_X6S_04
NV_0402
C195
1u_6.3V_X6S_04
NV_0402
C245
1u_6.3V_X6S_04
NV_0402
C427
10u_4V_X6S_06
NV_0603
C526
1u_6.3V_X6S_04
NV_0402
C231
10u_4V_X6S_06
NV_0603
C174
10u_4V_X6S_06
NV_0603
C393
1u_6.3V_X6S_04
NV_0402
C317
1u_6.3V_X6S_04
NV_0402
C532
*1u_6.3V_X6S_04
NV_0402
C370
*10u_4V_X6S_06
NV_0603
C232
*1u_6.3V_X6S_04
NV_0402
C507
*22u_4V_X6S_06
NV_0603
C414
22u_4V_X6S_06
NV_0603
C478
1u_6.3V_X6S_04
NV_0402
C533
10u_4V_X6S_06
NV_0603
C176
22u_4V_X6S_06
NV_0603
C181
22u_4V_X6S_06
NV_0603
C375
1u_6.3V_X6S_04
NV_0402
C175
10u_4V_X6S_06
NV_0603
C199
1u_6.3V_X6S_04
NV_0402
C361
1u_6.3V_X6S_04
NV_0402
C291
10u_4V_X6S_06
NV_0603
C234
1u_6.3V_X6S_04
NV_0402
C513
1u_6.3V_X6S_04
NV_0402
C227
1u_6.3V_X6S_04
NV_0402
C552
10u_4V_X6S_06
NV_0603
C226
1u_6.3V_X6S_04
NV_0402
C538
1u_6.3V_X6S_04
NV_0402
C312
1u_6.3V_X6S_04
NV_0402
C520
10u_4V_X6S_06
NV_0603
C525
*1u_6.3V_X6S_04
NV_0402
C500
1u_6.3V_X6S_04
NV_0402
C178
22u_4V_X6S_06
NV_0603
C523
*1u_6.3V_X6S_04
NV_0402
C519
*10u_4V_X6S_06
NV_0603
C307
*10u_4V_X6S_06
NV_0603
C169
22u_4V_X6S_06
NV_0603
C217
22u_4V_X6S_06
NV_0603
C457
*22u_4V_X6S_06
NV_0603
C443
1u_6.3V_X6S_04
NV_0402
C408
10u_4V_X6S_06
NV_0603
Sheet 22 of 69
GPU Decoupling -
FBVDDQ
