2 - 14 Removing and Installing the the M.2 SSD Module
2.Disassembly
M.2 SSD-2 Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 6).
2. Locate the module, it is visible at point
(Figure 10a).
3. Remove the screw from the module
(Figure 10b).
4. The module will pop-up
(Figure 10c).
5. Lift the module up and off the computer
(Figure 10d).
6. Reverse the process to install a new module.

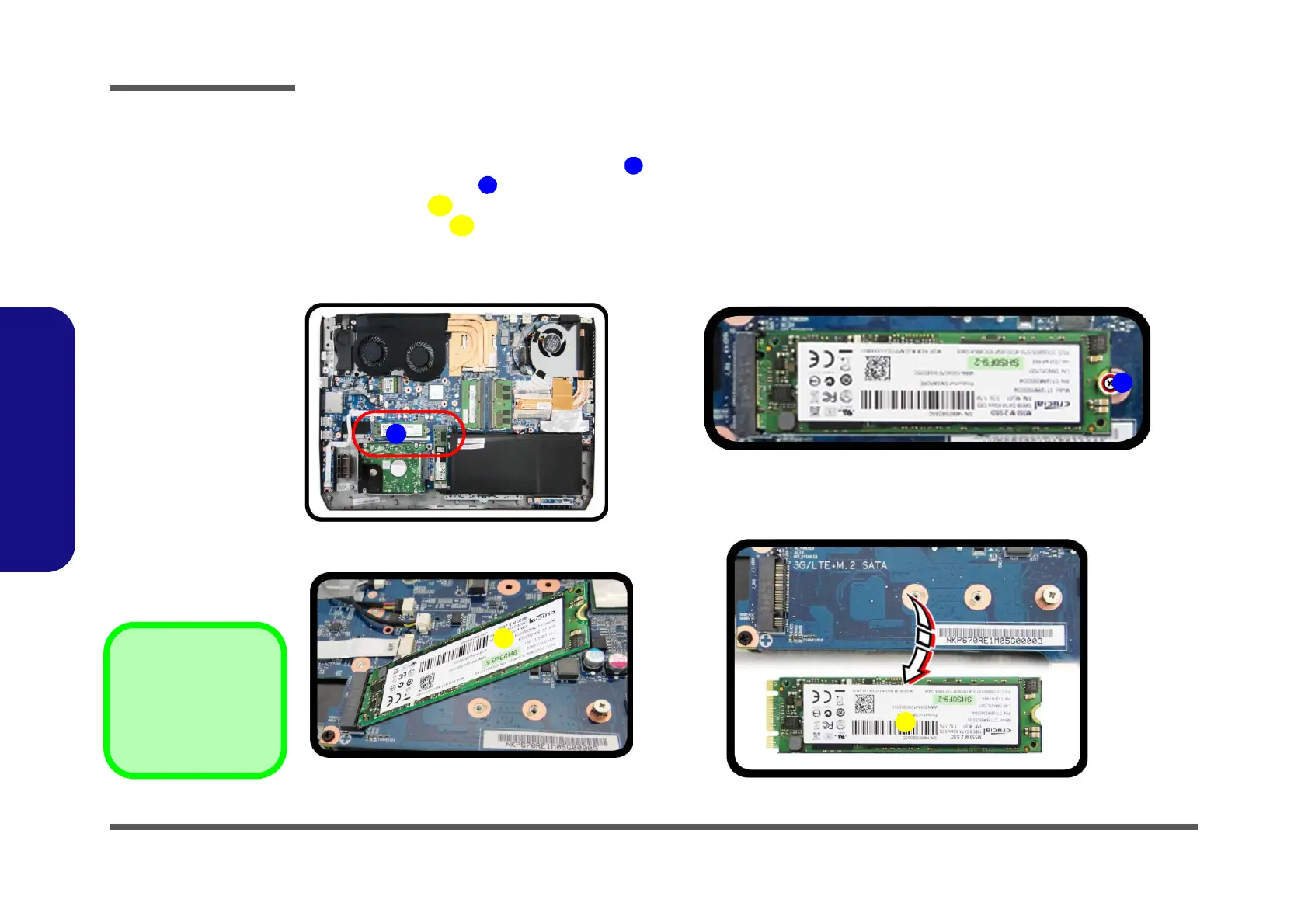

Figure 10
M.2 SSD-2 Module
Removal
a. Locate the module.
b. Disconnect the cables and
remove the screw.
c. The module will pop-up.
d. Lift the module up off the
socket.
1
2
3
3
a.
c.
1
b.
d.
2
3
3

3. M2 SATA Module
•1 Screw
