Removing the M.2 SATA Module
M.2 SATA-1 Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 6).
2. Locate the module, it is visible at point
(Figure 14a).
3. Carefully remove the screw from the module
(Figure 14b).
4. The module will pop-up
(Figure 14c).
5. Lift the module up and off the computer
(Figure 14d).
6. Reverse the process to install a new module.

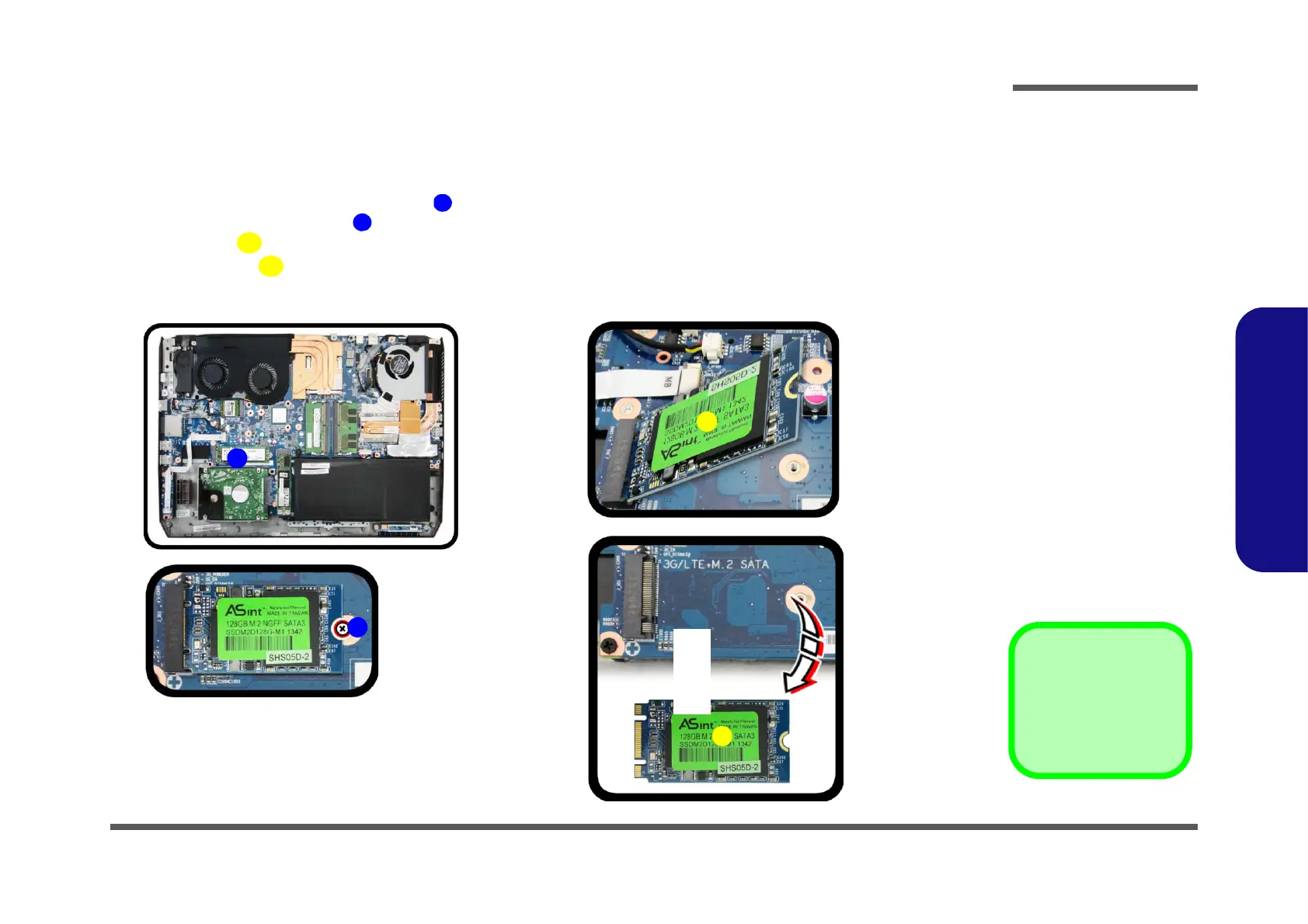

Figure 14
M.2 SATA-1 Module
Removal
a. Locate the module.
b. Remove the screw.
c. The module will pop-up.
d. Lift the module up off the
socket.
1
2
3
3
a.
b.
1
2
3
c.
3
d.

3. M2 SATA Module
•1 Screw
