Disassembly
2 - 16 Removing and Installing the the M.2 SSD Module
2.Disassembly
4. Press down the mylar and thermal pad into place at point as shown (Figure 12d).
5. Make sure that the mylar is secure in place and the thermal pad is in place along the contour (no glue is
required).
6. Replace the component bay cover and tighten the screws.
4
5
6
7
8
d.
7
4
c.
5
6
8

4. Mylar
5. Thermal Pad

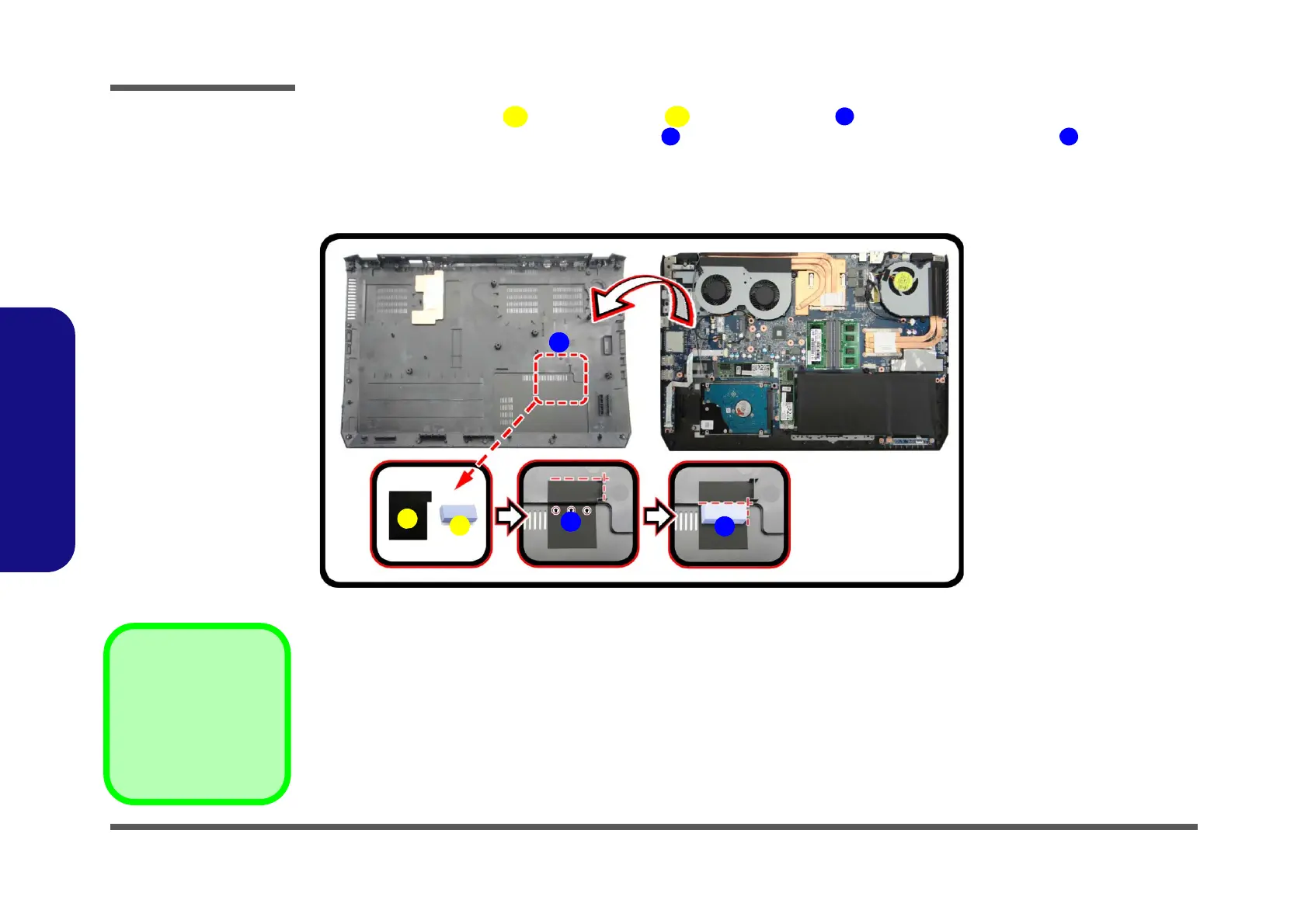

Figure 12
M.2 SSD-2 Module
Installation (cont’d)
d. Place the mylar and
thermal pad as shown.
