Disassembly
2 - 14 Removing and Installing the Processor
2.Disassembly
Removing and Installing the Processor
Processor Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5), and component bay cover (page 2 - 10).
2. Remove screws - from the heat sink unit in the order indicated on the label (i.e screw first through to
screw last Figure 10a)
.
3. Carefully (it may be hot) remove the heat sink unit (Figure 10b).
1
8
8
1
9

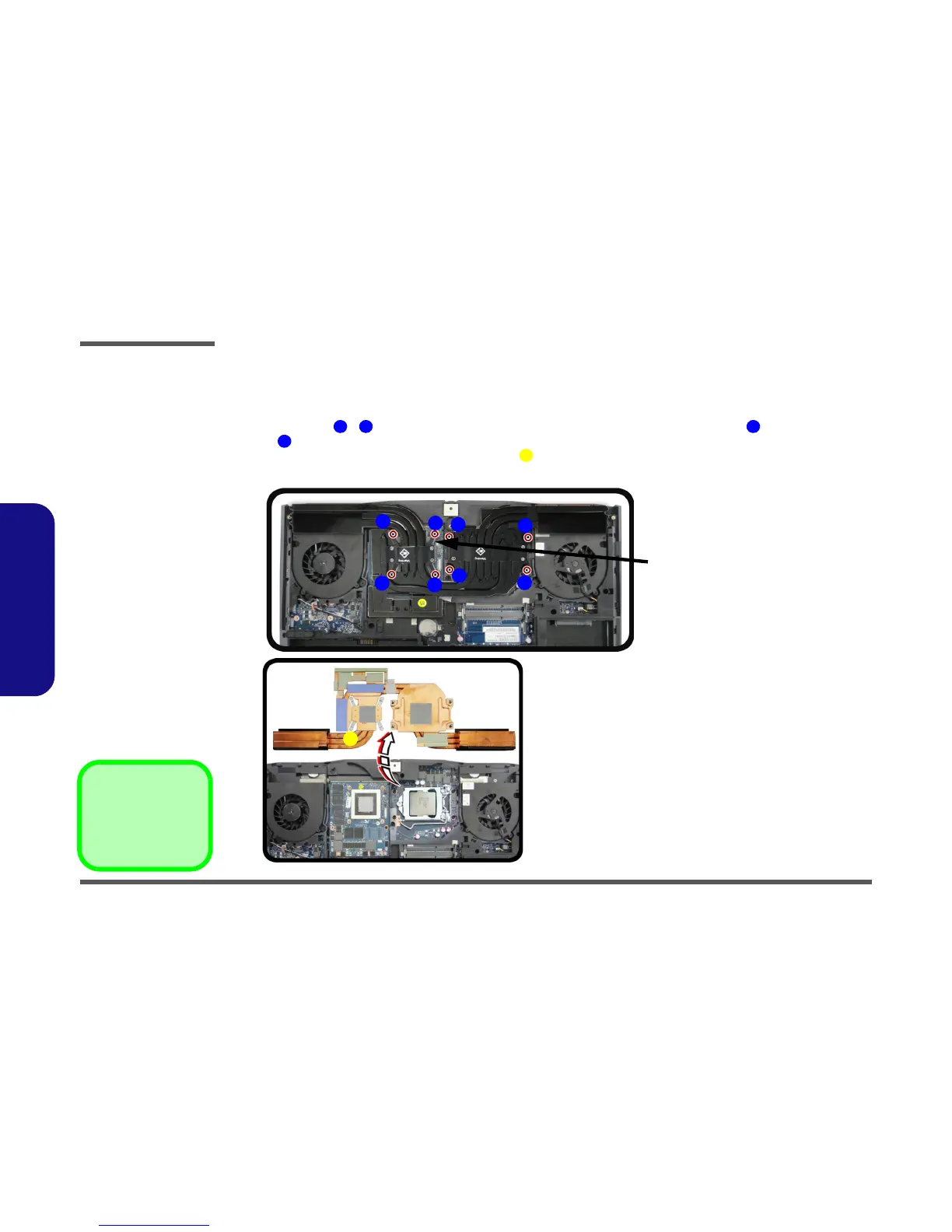

Figure 10
Processor
Removal
Procedure
a. Remove the screws
in the correct order.
b. Carefully remove
the heat sink unit.
9. Heat Sink Unit
•8 Screws
a.
9
b.
Note:
Loosen the screws in the reverse
order 8-7-6-5-4-3-2-1 as indicated.
3
4
1
2
5
7
6
8
