M.2 SATA Installation Procedure

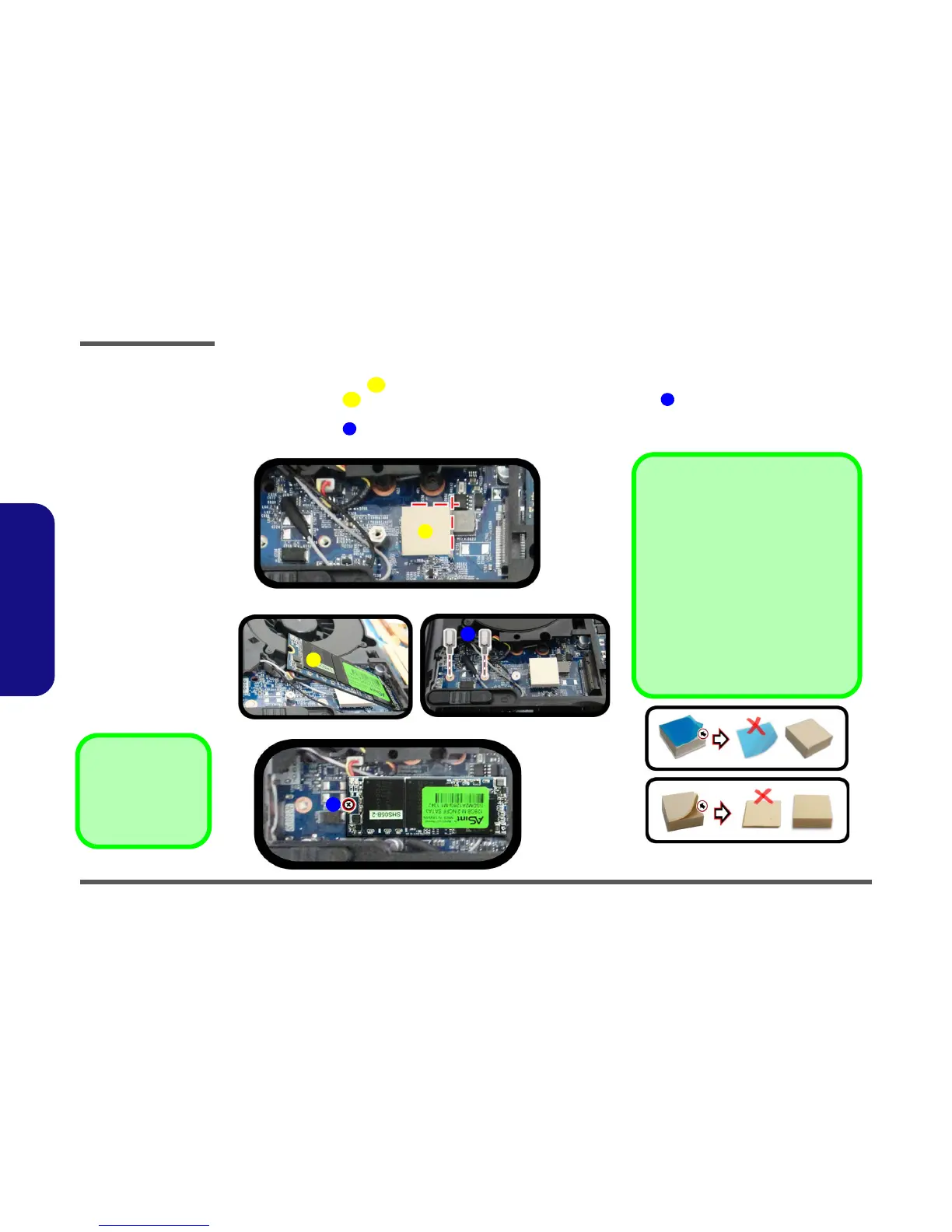

1. Place the thermal pad on the computer as shown (Figure 15a).
2. Insert the module in the computer. Make sure that the hexagonal screw
is in the correct location (Figure
15b
).
3. Tighten the screw to secure it in place (Figure 15c).
a.
4
2
b.
1
c.
3
Thermal Pad
Make sure you place the thermal pad’s adhe-
sive side down onto the computer surface as
illustrated.
The usage of the thermal pad will depend
upon the thickness of the module being used.
• If you are using the thinner module, then
apply the whole thermal pad provided on
the computer.
• If you are using the thicker module, sepa-
rate the pad into its two parts. Use the
larger part and place the adhesive side
onto the computer (discard the smaller
part that you have separated).
