Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly
4. Lift the hard disk bay cover off the computer (Figure 3c)
5. Slightly lift and pull the HDD-2 assembly (if available) in the direction of the arrow to remove the hard disk
assembly
(Figure 3d).
6. Slightly lift and pull the HDD-1 assembly in the direction of the arrow
to remove the hard disk assembly (Fig-
ure 3e
).
7. Remove screws - and the adhesive cover
from the hard disk (Figure 3f).
8. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
6
4
5
6
6
7
6
8
9
12
13
14
c. d.
8
4
7
e.
13
5
HDD-2
HDD-1
6
4
9
14
f.
12
10
11

4. HDD Bay Cover
6. HDD-2 Assembly
8. HDD-1 Assembly
13. Adhesive Cover
14. HDD
•4 Screws

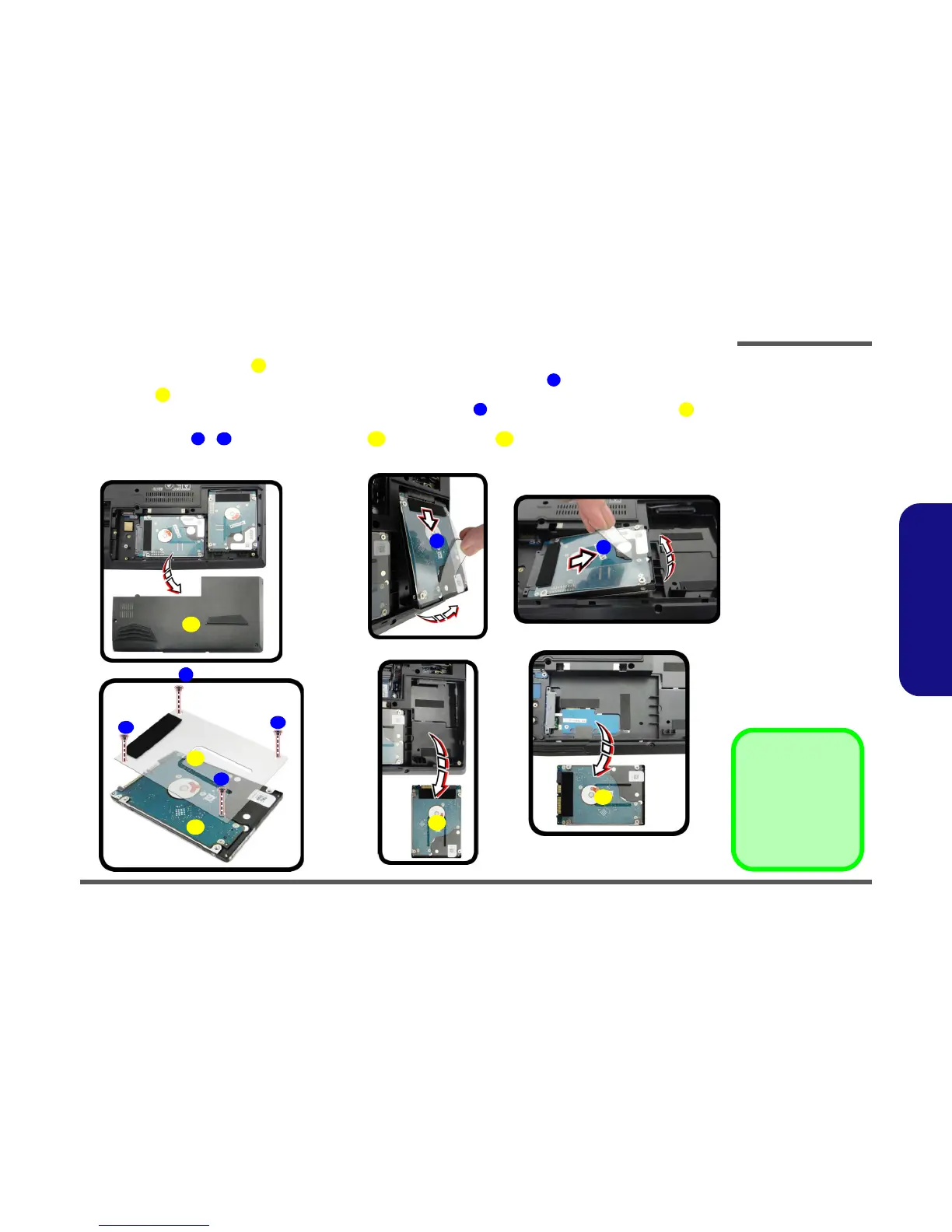

Figure 3
HDD Assembly
Removal (cont’d.)
c. Remove the HDD bay
cover.
d. Lift and pull the HDD-2
assembly in the direction
of the arrow to remove
the hard disk assembly.
e. Lift and pull the HDD-1
assembly in the direction
of the arrow to remove
the hard disk assembly.
f. Remove the screws and
the adhesive cover.
