Disassembly
Removing the Mainboard 2 - 23
2.Disassembly
Removing the Mainboard
1. Turn off the computer, remove the battery (page 2 - 5), HDD (page 2 - 6), M.2 SSD (page 2 - 9), RAM (page 2 -
10), CPU (page 2 - 14),WLAN (page 2 - 17), M.2 SATA (page 2 - 19), and keyboard (page 2 - 12)
.
2. Carefully disconnect cables - (Figure 18a).
3. Lift the top case up and off the computer (Figure 18b).
4. Release the rear ports - from the bottom case, and carefully lift the main board as shown (Figure 18c).
5. Remove the main board from the bottom case (Figure 18d).
1
5
6
7
9
10
11
b.
a.
d.
3
c.
4
2
5
6
7
10
98
11
1

6. Top Case
10. Main Board
11. Bottom Case

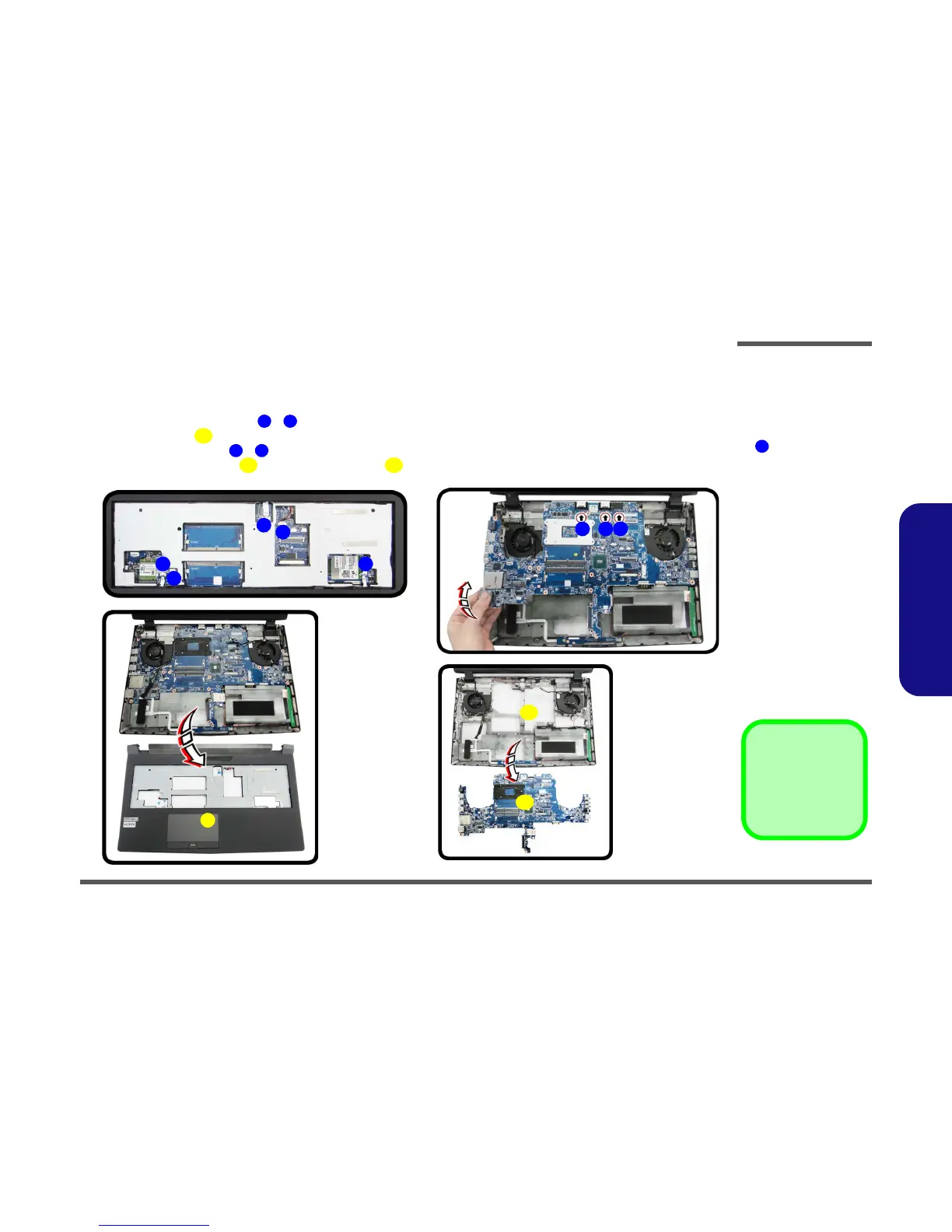

Figure 18
Mainboard Removal
a. The Wireless LAN mod-
ule will be visible at point
under the keyboard
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
d. Lift the WLAN module
out.
1
