Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction

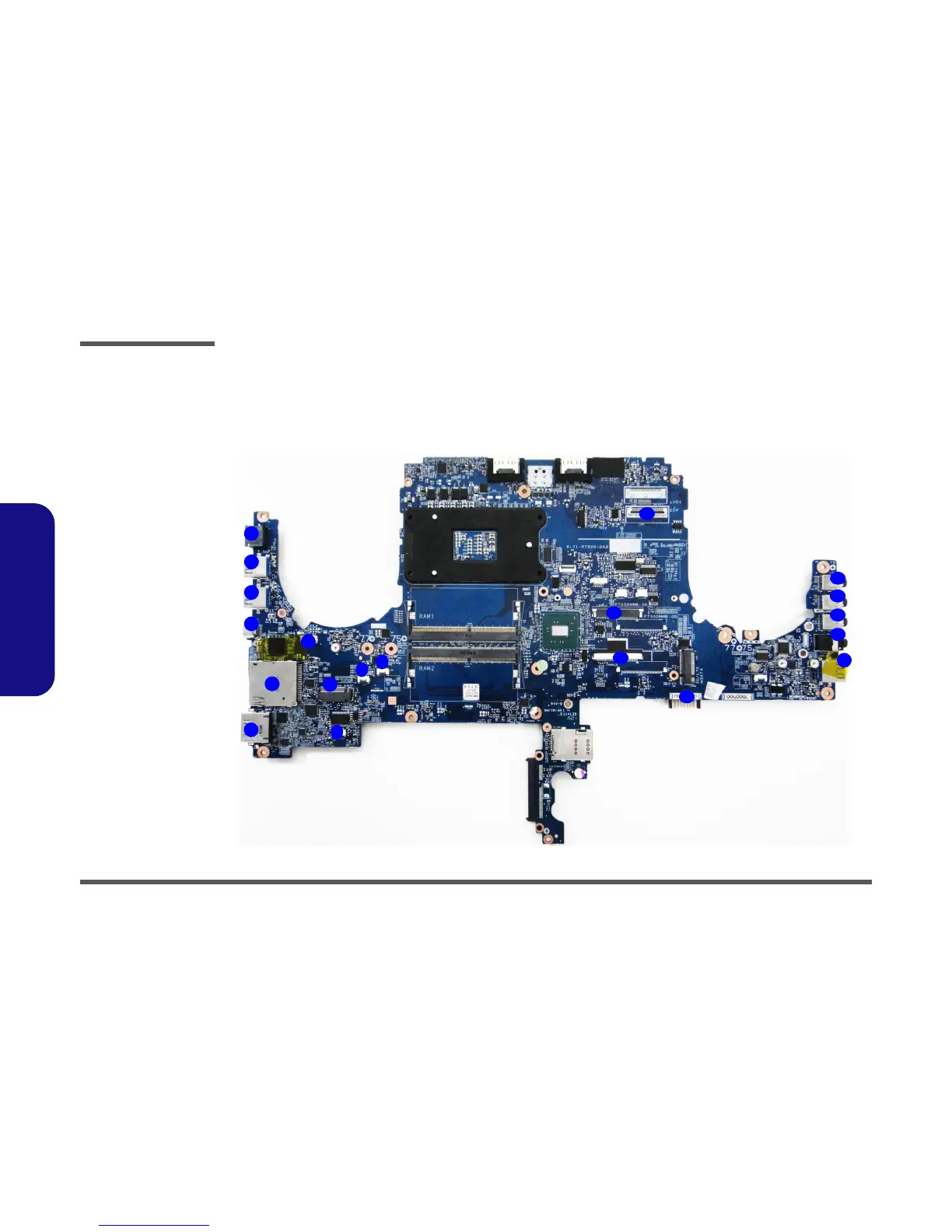

Mainboard Overview - Top (Connectors)
Figure 9
Mainboard Top
Connectors
1. RJ-45 LAN Jack
2. USB 3.0 Port
3. USB 3.1 Port
4. Multi-in-1 Card
Reader
5. USB 3.0 Port /
e-SATA
6. KB LED
Connector
7. WLAN Card
Connector
8. Button LED
Connector
9. TP FFC Cable
Connector
10.Panel Cable
Connector
11. Keyboard Cable
Connector
12.Battery
Connector
13.S/PDIF-Out Jack
14.Headphone Jack
15.Microphone Jack
16.Line-In Jack
1
2
4
5
6
7
8
14
9
12
13
15
16
3
3
2
9
10
11
11
