Clevo P955ER - Mainboard Overview - Bottom (Key Parts)

1
2
3
6
4
5
7

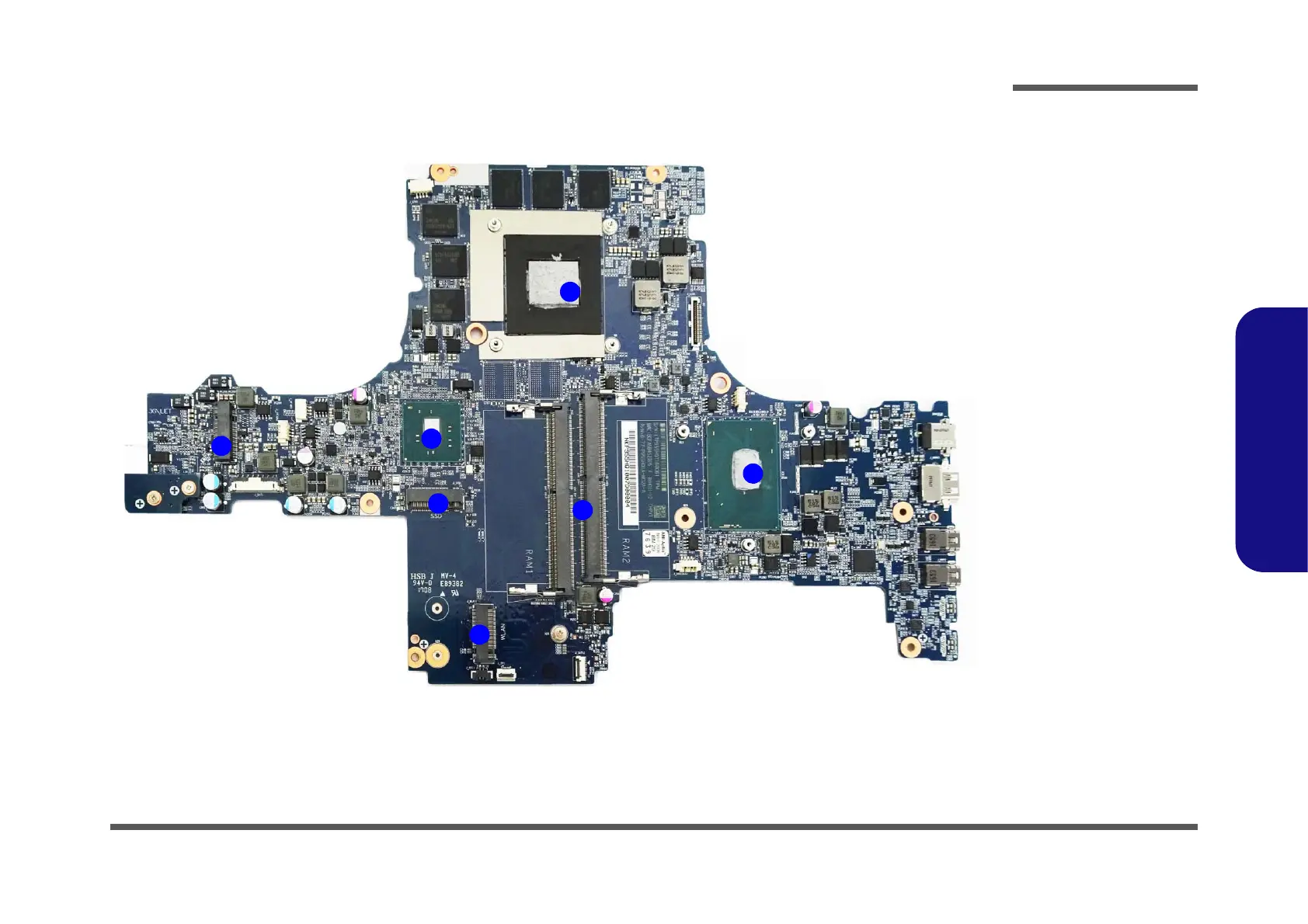

Figure 8
Mainboard Bottom
Key Parts
1. Mini-Card
Connector (M.2
3G/SATA Module)
2. Mini-Card
Connector (M.2
PCIE/SATA SSD
Module)
3. Mini-Card
Connector (WLAN
Module)
4. PCH
5. GPU-GTX1070
6. Memory Slots
DDR4 SO-DIMM
7. CPU
Introduction
Mainboard Overview - Bottom (Key Parts) 1 - 9
1.Introduction
Mainboard Overview - Bottom (Key Parts)
