Mainboard Overview - Top (Connectors)

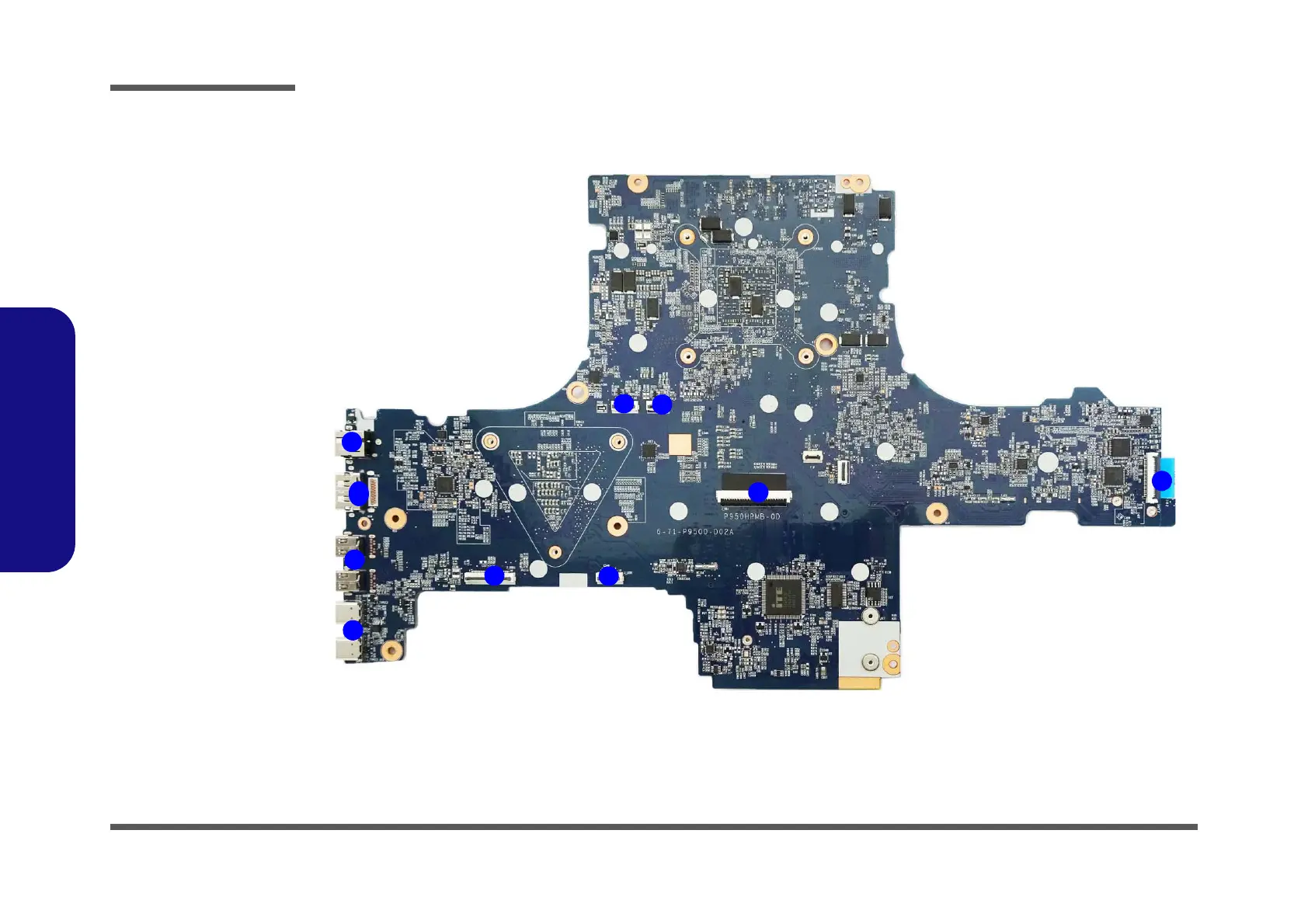

Figure 9
Mainboard Top
Connectors
1. DC-In Jack
2. HDMI Port
3. Mini Display Ports
4. USB Port 3.1
Connector
5. USB Board
Connector
6. LED Board
Connector
7. LED KB
Connector
8. Keyboard Cable
Connector
9. LAN Board
Connector
10
11
9
7
8
6
5
1
3
4
2
