Clevo W230SD User Manual

Disassembly
Removing the 3G Module 2 - 15
2.Disassembly
Removing the 3G Module
1. Turn off the computer, turn it over and remove the battery (page 2 - 5), and component bay cover (page 2 - 7).
2. The 3G module will be visible at point on the mainboard (Figure 11a).
3. Carefully remove the screw (Figure 11b)
.
4. Carefully slide the 3G module (in the direction of the arrow - Figure 11c) out of the interface adaptor and
then lift it up (do not exceed 10 degrees) to remove it from the computer (Figure 11d).
5. Carefully remove the screw
(Figure 11e).
6. The min-card interface adaptor will pop-up, and you can remove it from the computer (Figure 11f).
1
2
3
4
5
6
1
a.
d.
2
3
f.
3
e.
4
b.
5
c.
6

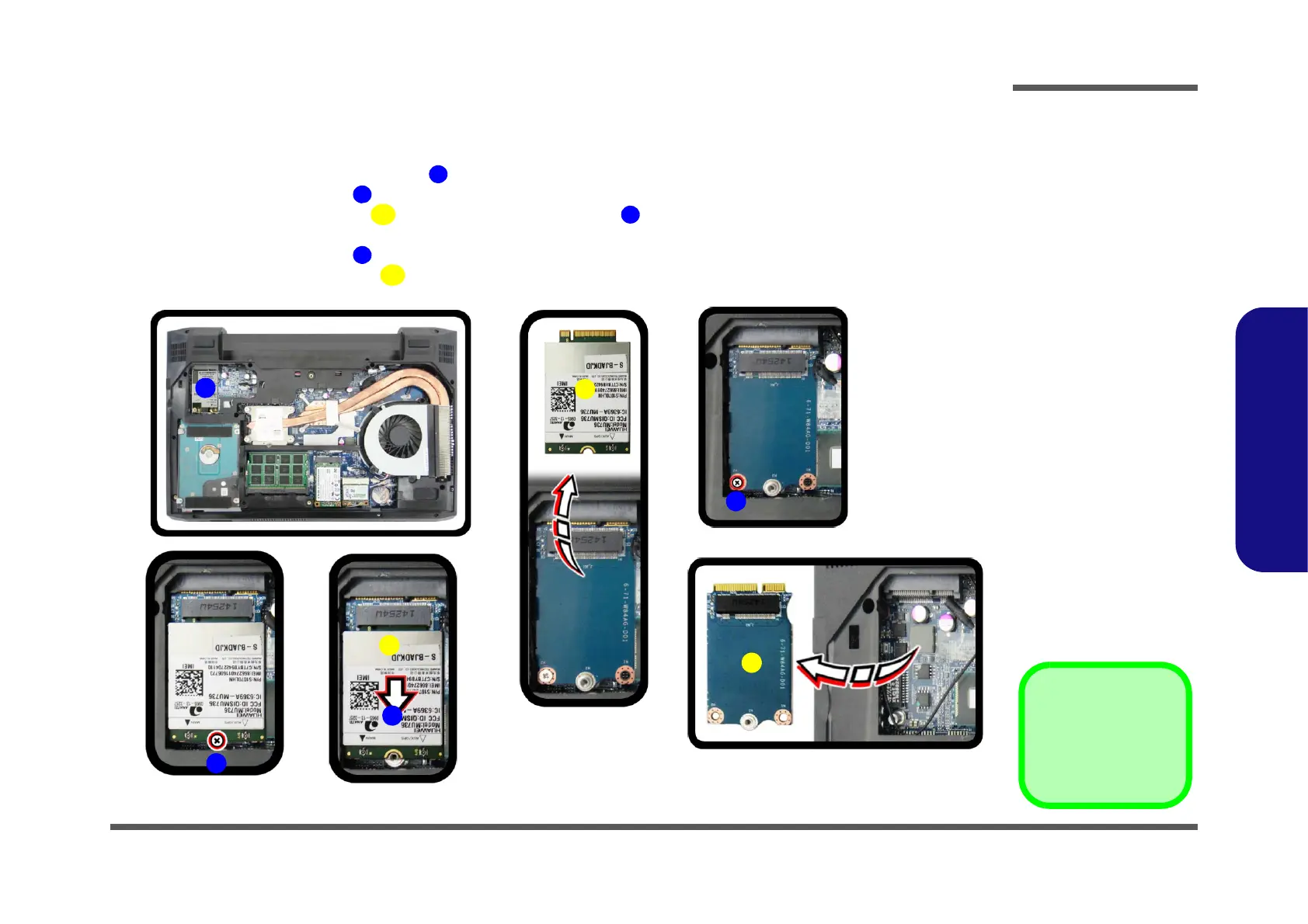

Figure 11
3G Module
Removal
a. Locate the 3G module.
b. Remove the screw.
c. Slide the module in the
direction of the arrow
and lift it out.
d. Remove the 3G mod-
ule.
e. Remove the screw.
f. Remove the interface
adaptor.

5. 3G Module
6. Interface Adaptor
•2 Screws

Clevo W230SD Specifications

General

Processor	Intel Core i7-4700MQ
Operating System	Windows 8.1
Display	13.3 inches, 1920 x 1080 pixels
Storage	256 GB SSD
Graphics	NVIDIA GeForce GTX 860M
Dimensions	330 x 230 x 25 mm
