Disassembly
Removing the WLAN Module 2 - 15
2.Disassembly
Removing the WLAN Module
1. Turn off the computer, turn it over and remove the battery (page 2 - 5), and component bay cover (page 2 - 6).
2. The WLAN module will be visible at point on the mainboard (Figure 11a).
3. Carefully remove the screw
and disconnect cables & (Figure 11b).
4. The WLAN module (Figure 11c) will pop-up, and you can remove it from the computer (Figure 11d).

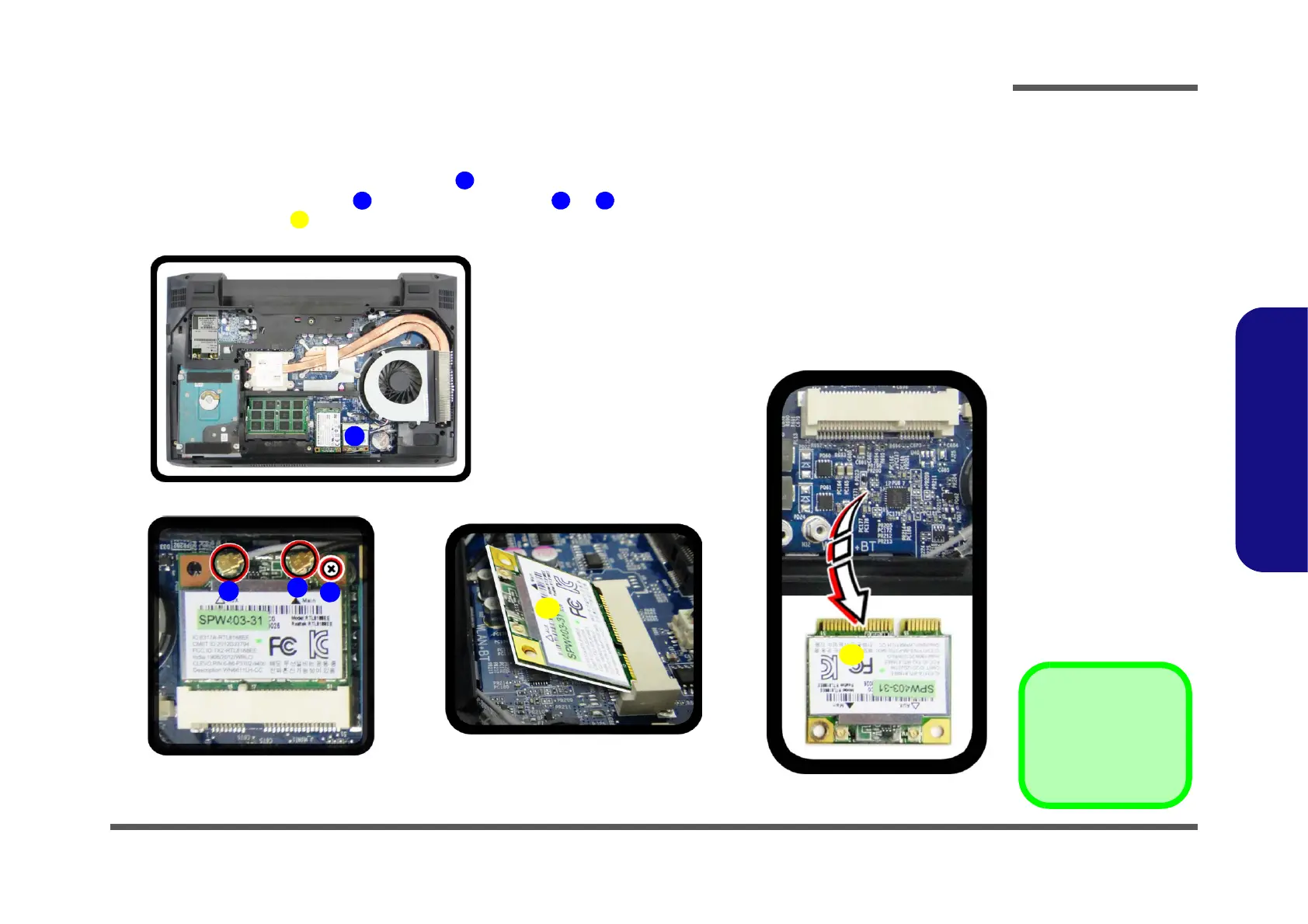

Figure 11
WLAN Module
Removal
a. Locate the WLAN
module.
b. Remove the screw and
disconnect the cables.
c. The module will pop-
up.
d. Remove the WLAN
module.
To Next Page
