Clevo W230ST Service Manual

Disassembly
Removing the CCD Module 2 - 17
2.Disassembly
Removing the CCD Module
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5).

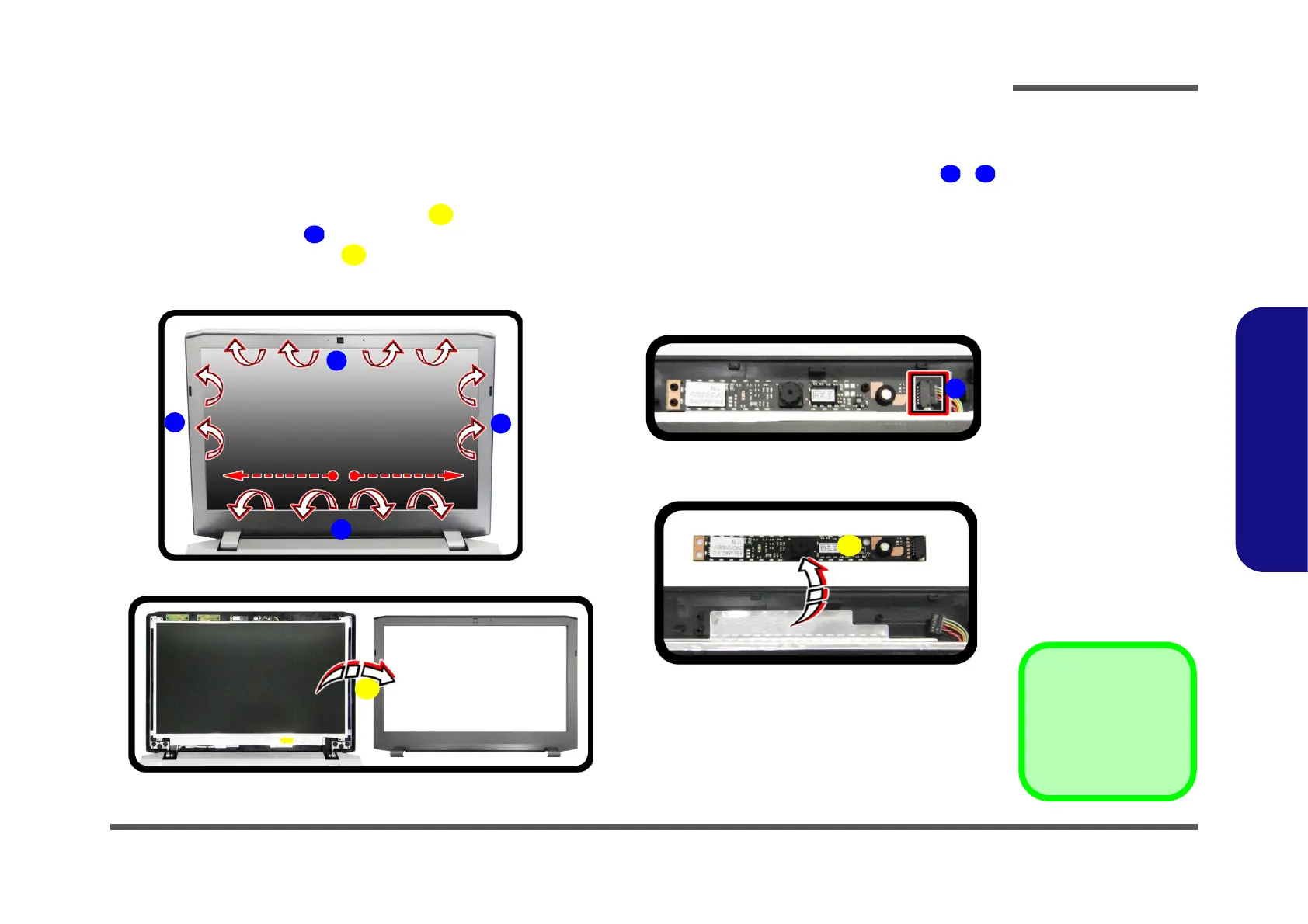

2. Carefully run your fingers around the inner frame of the LCD panel at the points as indicated by the arrows -
(Figure 13a).
3. Carefully remove the LCD front panel off (Figure 13b).
4. Disconnect the cable (Figure 13c).
5. Remove the CCD module (Figure 13d).
6. Reverse the process to install a new CCD module.
1
3
4
5
6
b.
c.
a.
d.
3
1
2
5
2
4
6

4. LCD Front Panel
6. CCD Module
Figure 13
CCD Module
Removal
a. Carefully run your fin-
gers around the inner
frame of the LCD panel
at the points indicated by
the arrows.
b. Remove the LCD front
panel.
c. Disconnect the cable.
d. Remove the CCD mod-
ule.

Clevo W230ST Specifications
