Clevo W251ESQ - Mainboard Overview - Bottom (Key Parts)

1
2
3
6
4
5
7

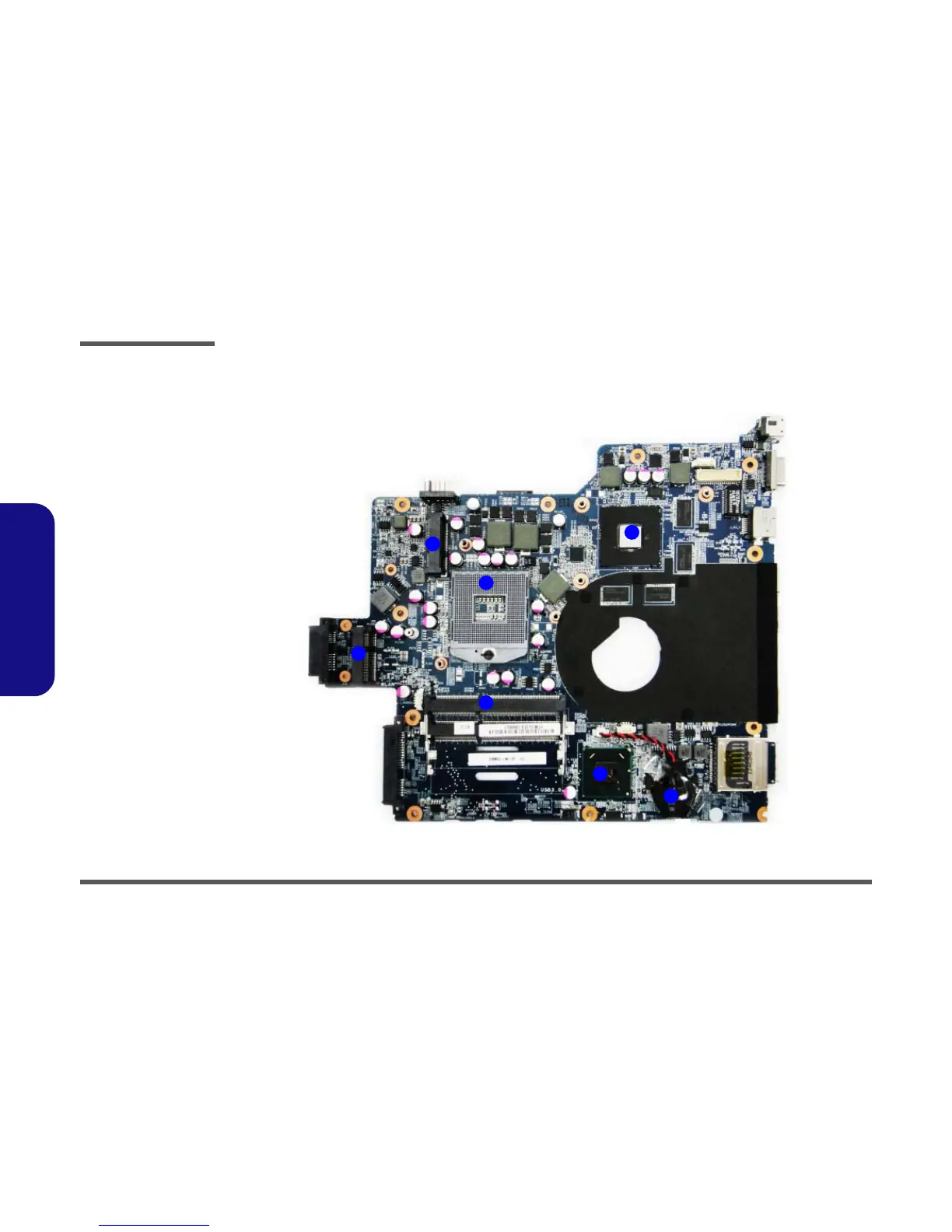

Figure 8
Mainboard Bottom
Key Parts
1. Memory Slots
DDR3 SO-DIMM
2. CMOS Battery
3. Mini-Card
Connector (WLAN
Module)
4. CPU Socket (no
CPU installed)
5. Mini-Card
Connector (3G
Module)
6. nVIDIA VGA
7. Platform Controller
Hub
