Clevo W251ESQ - Mainboard Overview - Bottom (Connectors)

Introduction
1 - 12 Mainboard Overview - Bottom (Connectors)
1.Introduction
Mainboard Overview - Bottom (Connectors)

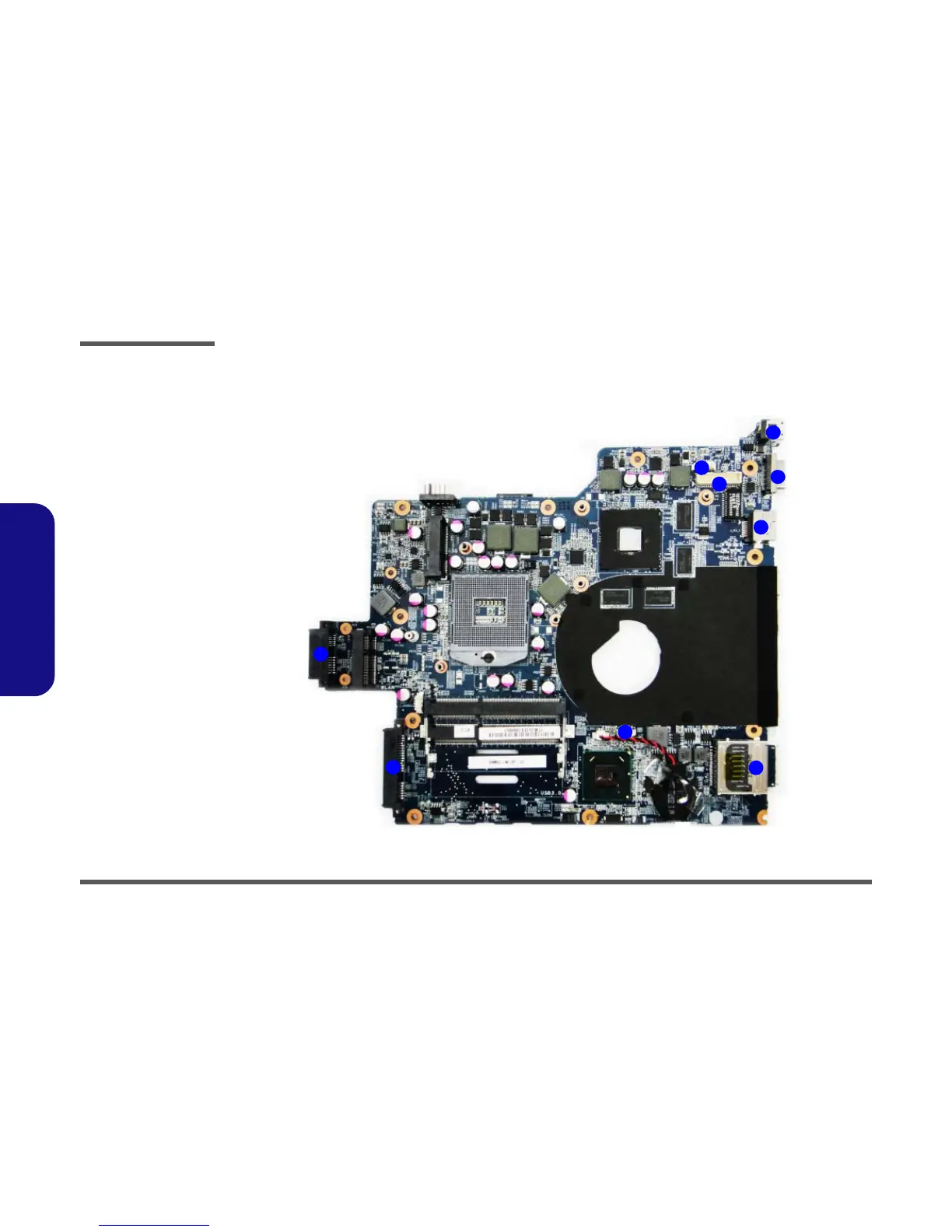

Figure 10
Mainboard Bottom
Connectors
1. ODD Connector
2. HDD Connector
3. CPU Fan Cable
Connector
4. Multi-in-1 Card
Reader
5. RJ-45 LAN Jack
6. External Monitor
Port
7. DC-In Jack
8. CCD Cable
Connector
9. LCD Cable
Connector
1
2
4
5
6
7
8
9
3
