Disassembly
Removing the Wireless LAN Module 2 - 15
2.Disassembly
Removing the Wireless LAN Module

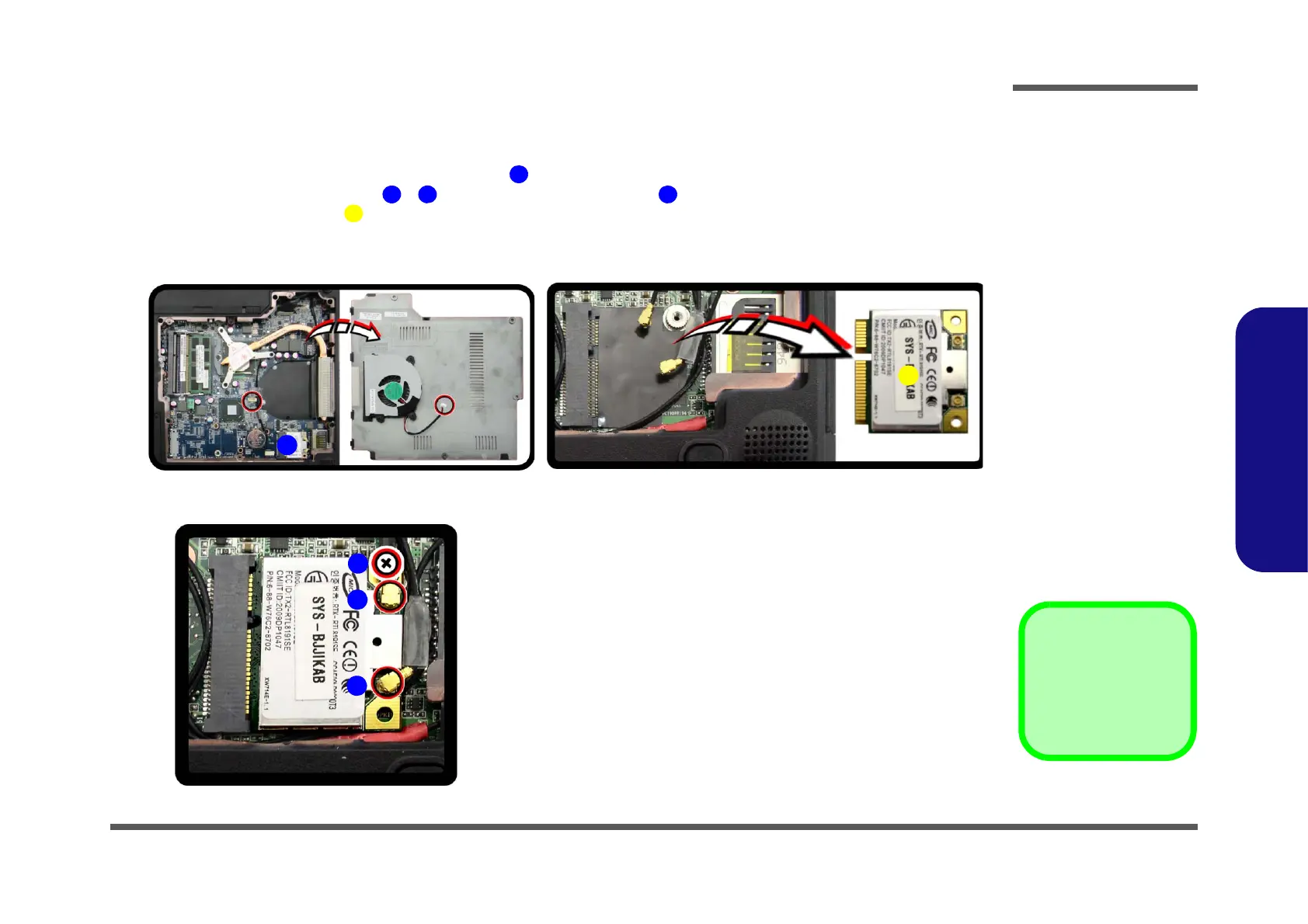

Figure 11
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cable
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 11b).
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 11a).
3. Carefully disconnect the cables
- , and then remove the screw (Figure 11b).
4. The Wireless LAN module (Figure 11c) will pop-up, and you can remove it from the computer.
1
2
3
4
4
b.
a.
2
3
5
1
c.
4
4.Wireless LAN Module
•2 Screw
