Clevo W253EUQ User Manual

Disassembly
2 - 16
2.Disassembly
Removing the Keyboard

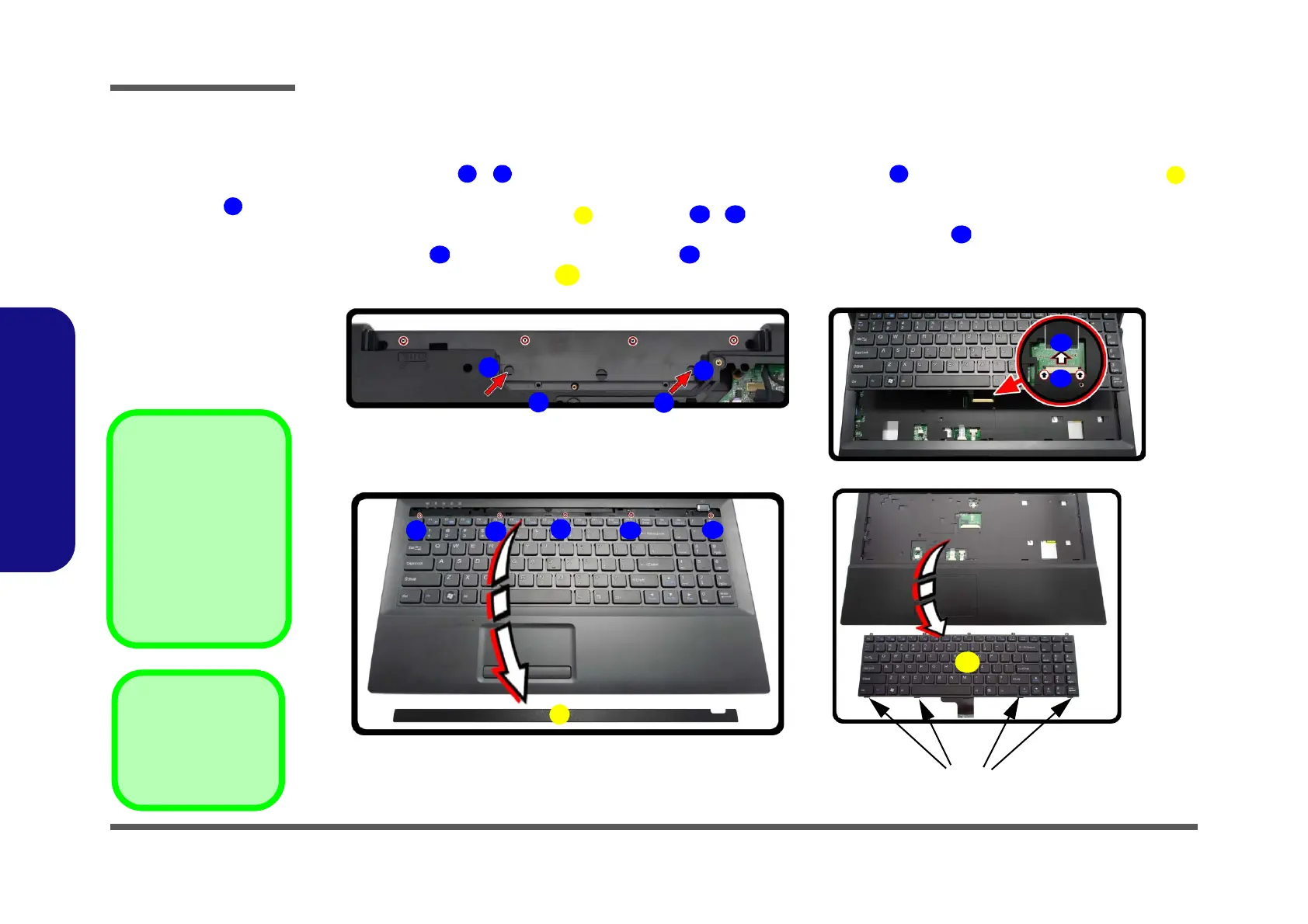

Figure 12
Keyboard Removal
a. Remove screws from the
bottom of the computer.
Press at points to un-
snap the LED cover
module.
b. Remove the LED cover
module and screws
from the keyboard.
c. Carefully lift the key-
board up and disconnect
the keyboard ribbon ca-
ble from the locking col-
lar socket.
d. Remove the keyboard.
3
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Remove screws
- from the bottom of the computer. Press at points to unsnap the LED cover module
(you may need to use the Eject Pin Tool to do this (Figure 12a).
3. Remove the LED cover module and screws - from the keyboard (Figure 12b).
4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable . Disconnect the keyboard
ribbon cable from the locking collar socket (Figure 12c)
5. Carefully lift up the keyboard (Figure 12d) off the computer.
1
2
3
4
4
5
9
10
10
11
12

Re-Inserting the
Keyboard
When re-inserting the
keyboard firstly align the
four keyboard tabs at the
bottom (Figure 12c) at
the bottom of the key-
board with the slots in the
case.
a.
Keyboard Tabs
1
3
2
3
5
c.
b.
d.
6
7
12
8
9
10
4
11

4. LED Cover Module
12. Keyboard
•7 Screws
