Disassembly
Removing the 3.75G Module 2 - 11
2.Disassembly
Removing the 3.75G Module
1. Turn off the computer, remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).
2. The 3.75G module will be visible at point on the mainboard.
3. Carefully disconnect the cable , then remove the screw from the module socket.
4. The 3.75G module will pop-up.
5. Lift the 3.75G module (Figure 7d) up and off the computer.

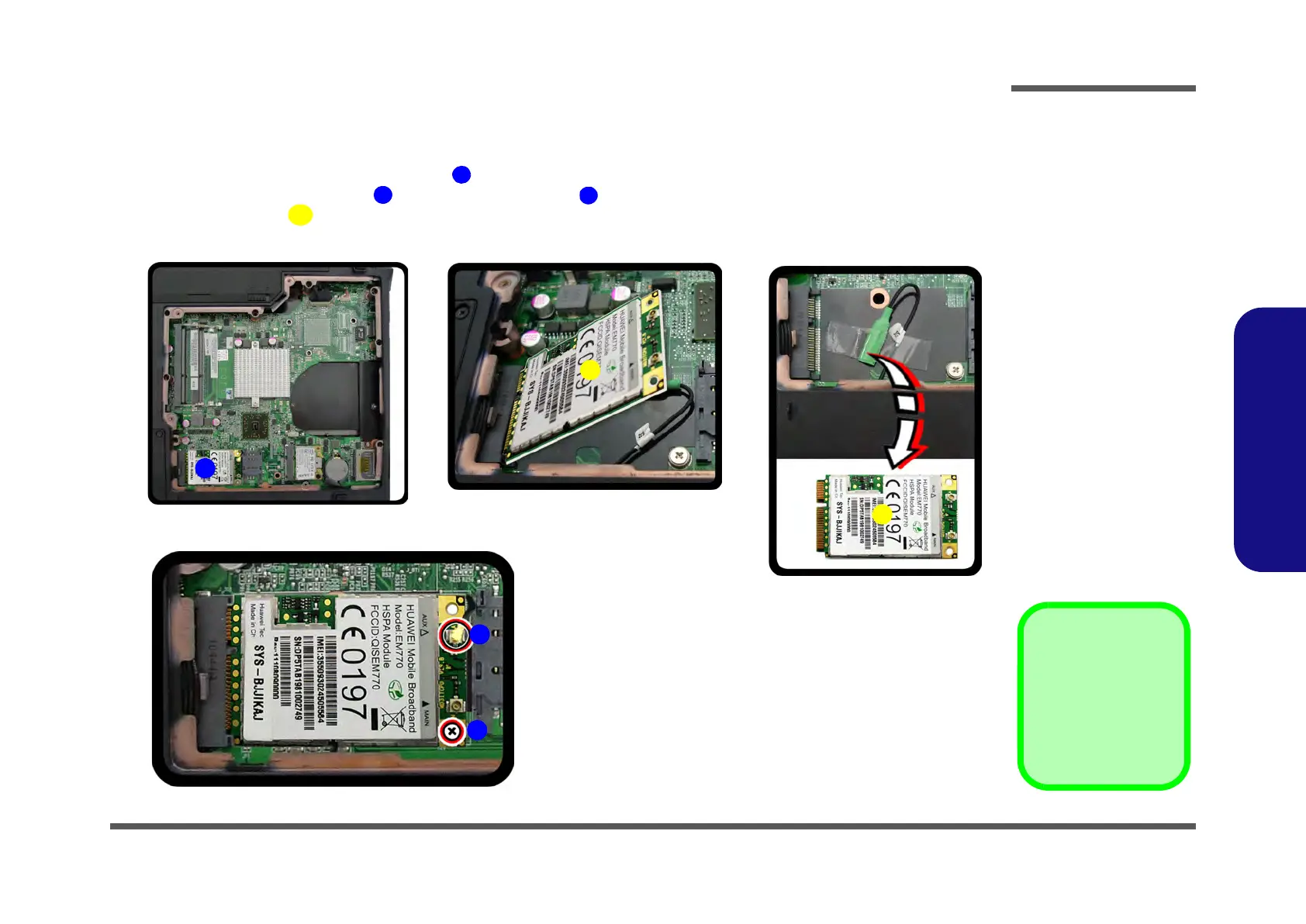

Figure 7
3.75G Module
Removal
a. Remove the cover.
b. Disconnect the cable
and remove the screw.
c. The 3.75G module will
pop up.
d. Lift the 3.75G module
out.
1
2
3
4
4
b.
a.
d.
2
3
4
1
c.
d.

4. 3.75G Module.
•1 Screw
