Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly
3. Remove the hard disk bay cover .
4. Grip the tab and slide the hard disk in the direction of arrow .
5. Lift the hard disk out of the bay .
6. Remove the screw and the adhesive cover from the hard disk .
7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
6
3
4
5
6 6
7
6
8
4
b.
c.
e.
5
6
d.
3
7
8
3. HDD Bay Cover
7. Adhesive Cover
8. HDD
•2 Screws
Figure 3
HDD Assembly
Removal (cont’d.)

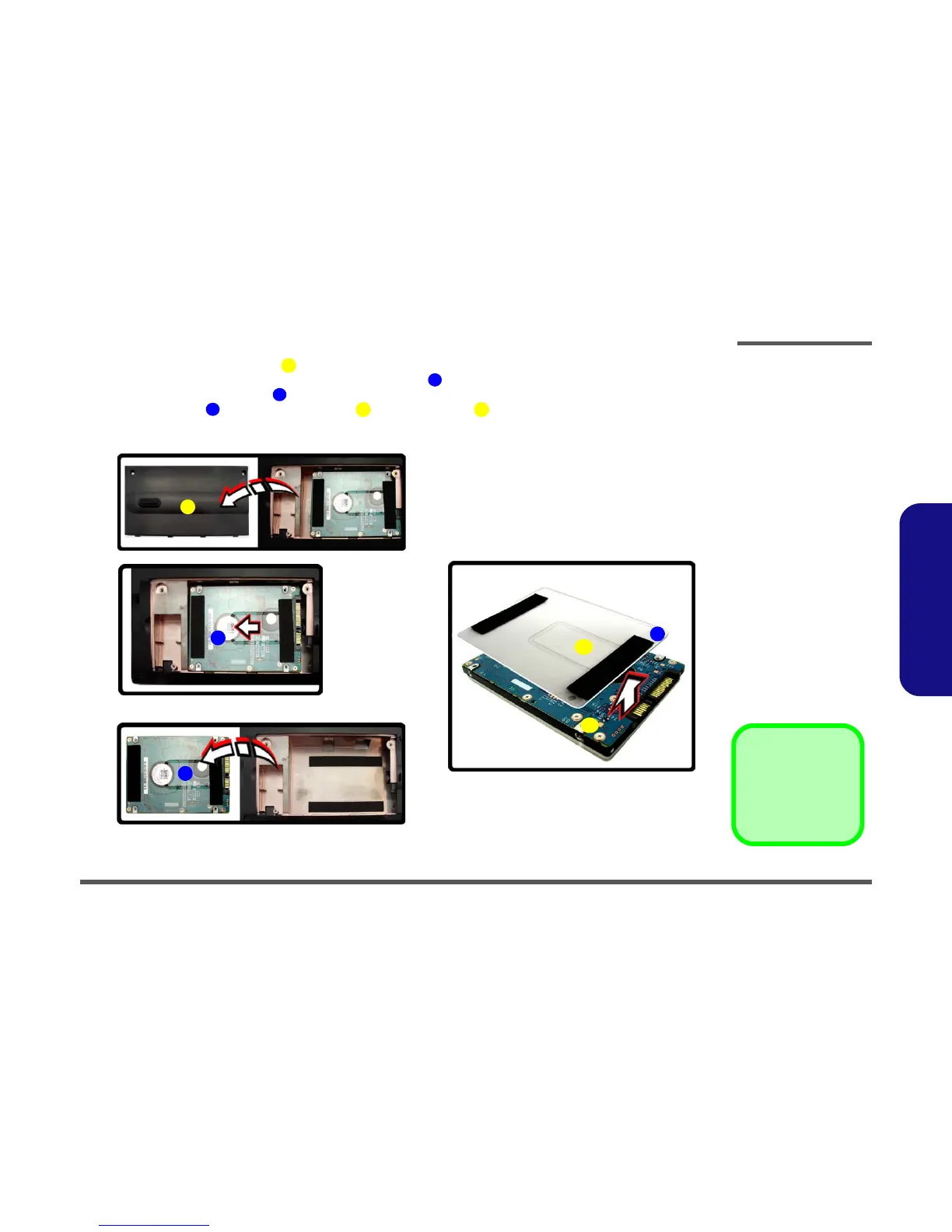

b. Remove the HDD bay
cover.
c. Grip the tab and slide the
HDD in the direction of
the arrow.
d. Lift the HDD assembly
out of the bay.
e. Remove the screws and
adhesive cover.
