Disassembly
2 - 12 Removing and Installing the Processor
2.Disassembly
Removing and Installing the Processor
Processor Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).
2. Loosen the CPU heat sink screws in the order
, & (the reverse order as indicated on the label).
3. Carefully lift up the heat sink (Figure 8c) off the computer.
3 2 1
4

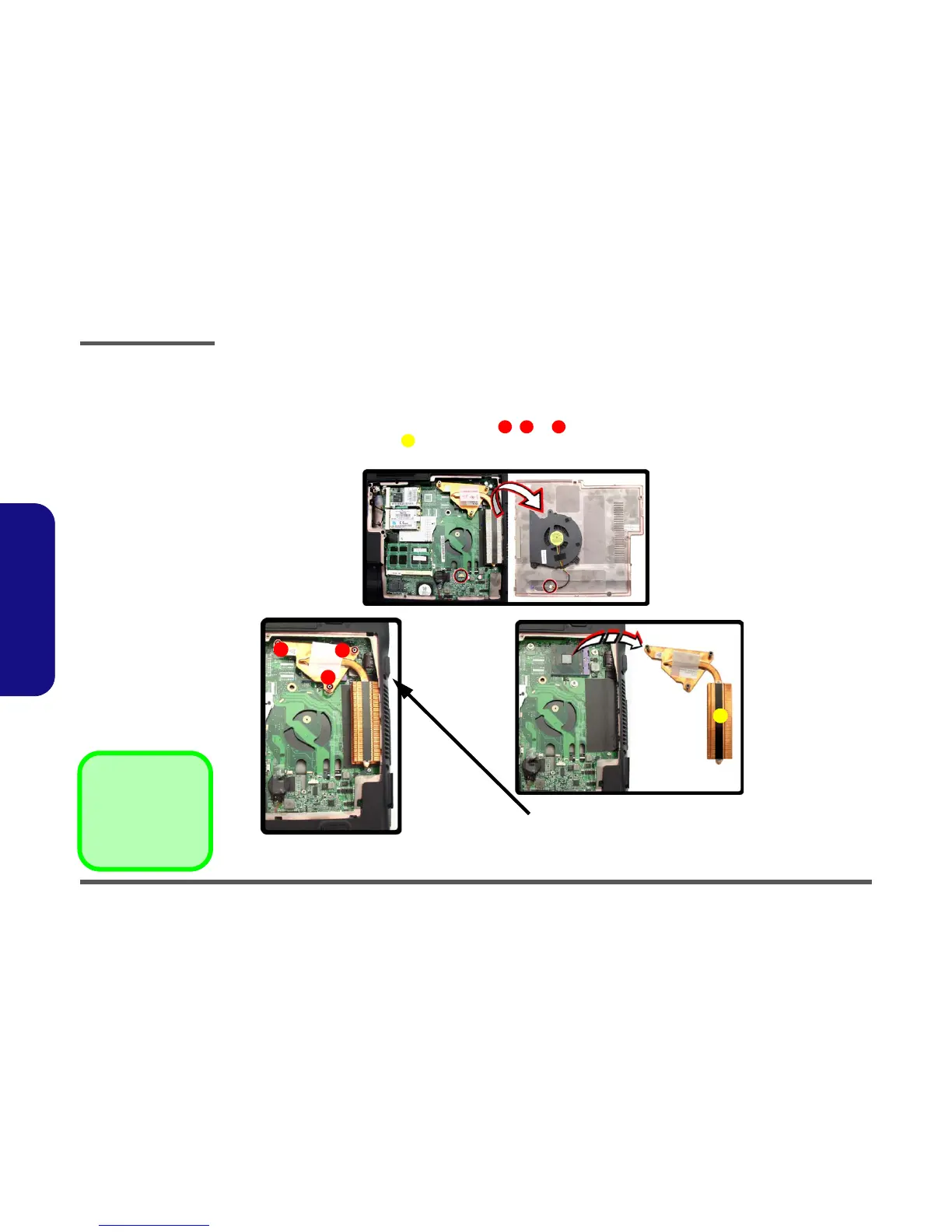

Figure 8
Processor Removal
a. Remove the cover and
Iocate the heat sink.
b. Loosen the screws in the
order indicated.
c. Remove the heat sink.
4. Heat Sink
•3 Screws
a.
4
1
b. c.
3
2
Note:
Loosen the screws in the order 3, 2, 1 as indicated on the label.
