Disassembly
Removing the Modem 2 - 19
2.Disassembly
4. Carefully lift the top case up and off the computer (Figure 15c).
5. Remove screws - (Figure 15d) from the computer.
6. Remove screws - (Figure 15e) and disconnect the cable from the modem module.
7. Lift the modem up and separate the modem from the connector .
8. Lift the modem off the computer.
28
29 31
32
33
34
35
36
28. Top Case
36. Modem
•5 Screws
d.
28
c.
e.
f.
27
29
34
31
30
33
32
36
35

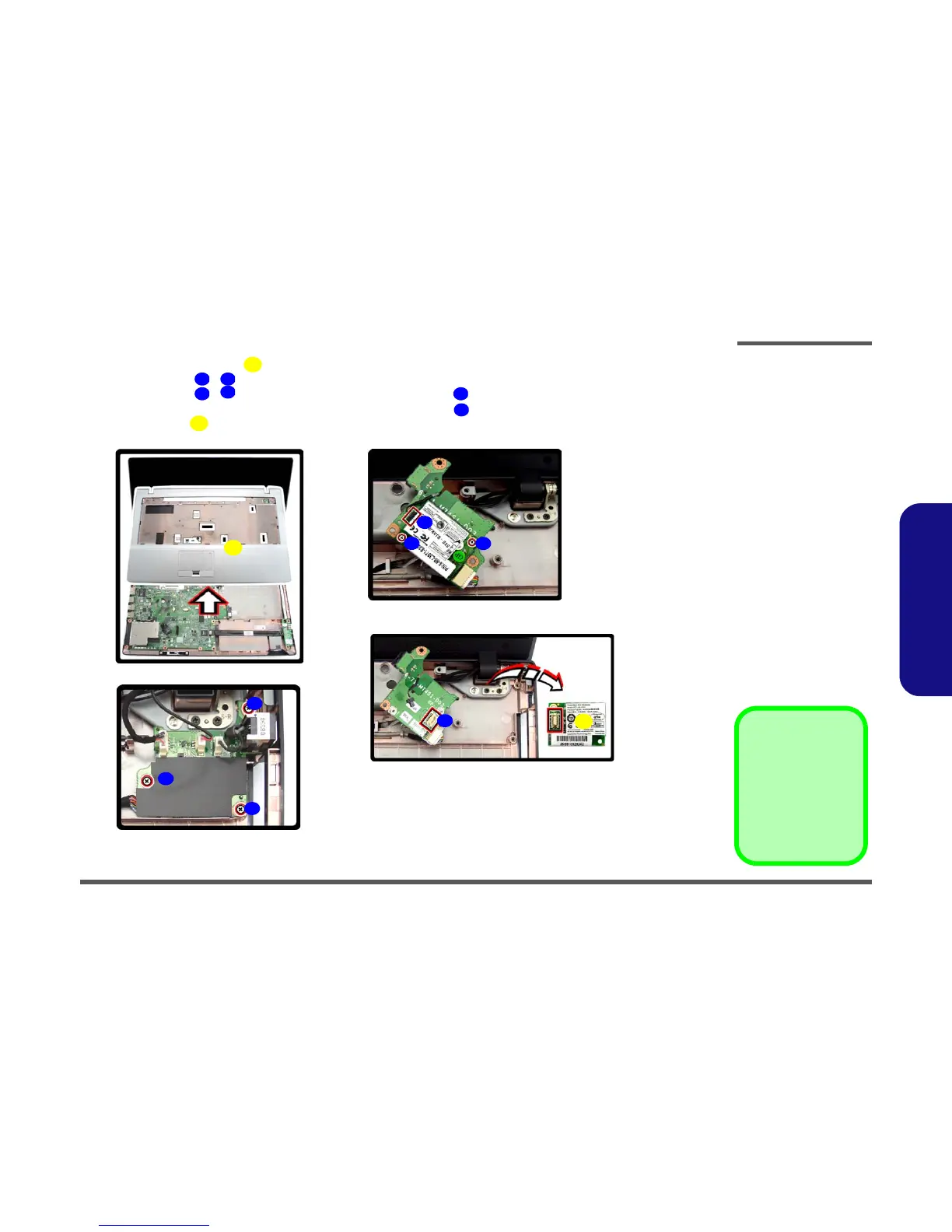

Figure 15
Modem Removal
(cont’d.)
c. Lift the cover off the
computer.
d. Remove the screws.
e. Remove the screws and
disconnect the connec-
tor.
f. Lift the modem out.
