Clevo W765S User Manual

Disassembly
Removing the Keyboard 2 - 17
2.Disassembly
Removing the Keyboard
1. Turn off the computer.
2. Remove the battery
3. Remove the screws
- and use a screwdriver to carefully push out the top cover module at point .
4. Remove the top cover module and the screws - (Figure 13d),
5. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable (Figure 13e).
6. Disconnect the keyboard ribbon cable from the locking collar socket .
7. Carefully lift up the keyboard (Figure 13f) off the computer.
2 3
5
4
5
6 10
11
12 13

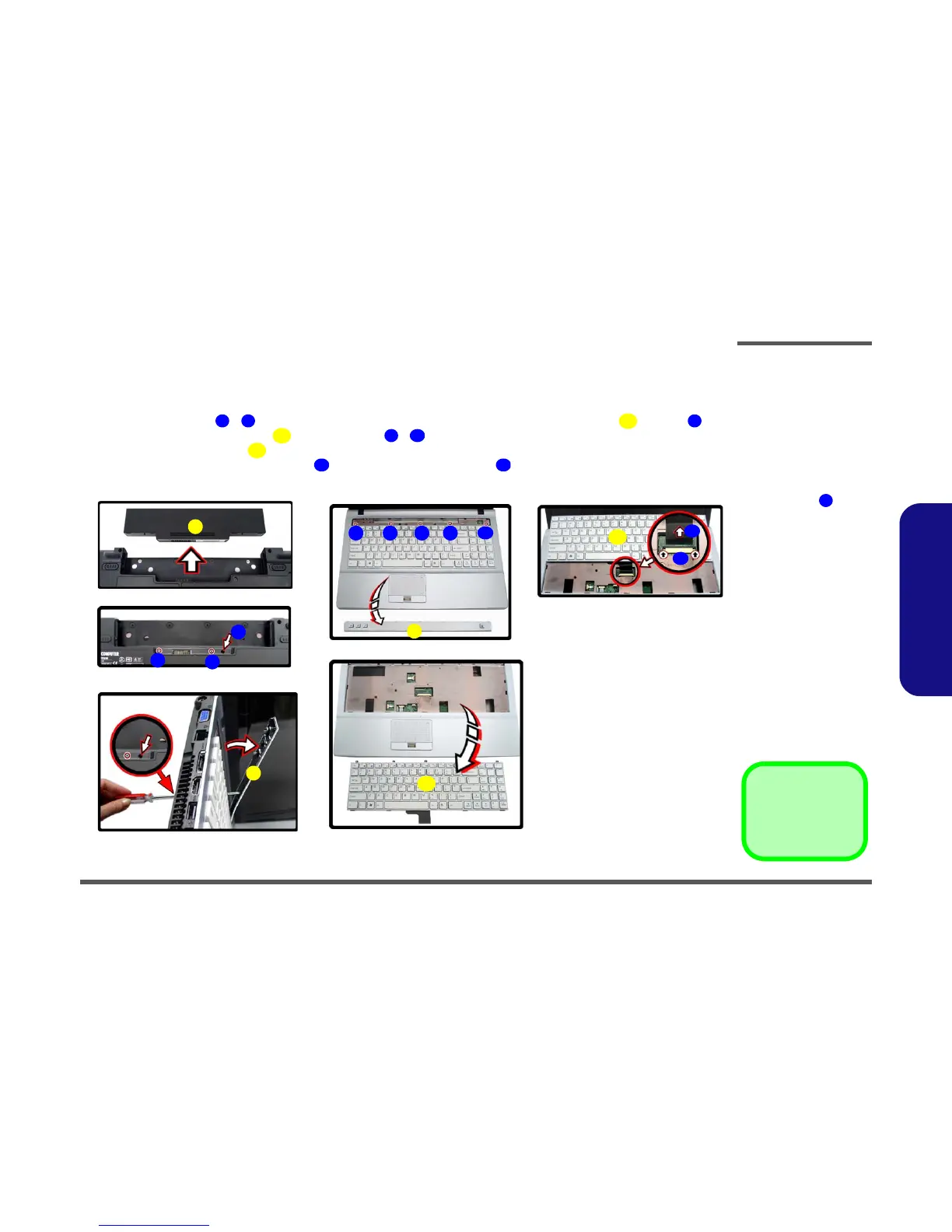

Figure 13
Keyboard Removal
a. Remove the battery.
b. Remove the screws and
use a screwdriver to care-
fully push out the top cover
module at point .
c. Remove the Top cover
module.
d. Remove the screws.
e. Lift the keyboard up and
disconnect the cable from
the locking collar.
f. Remove the keyboard.
4
a.
b.
2
1
3
4
96 87
5
c.
5
10
e.
d.
f.
13
12
11
11

1. Battery
5. Top cover module
11. Keyboard
