H2/2 LIGHT GREEN/BLACK (-) Factory Disarm Output
This wire sends a negative pulse every time the remote engine starting system is activated. This can
be used to pulse the disarm wire of the vehicle's factory anti-theft device. Use a relay to send a (-)
or (+) pulse to the disarm wire as shown in the diagrams below. This wire can also be used as a
special accessory output. (See Feature Descriptions section of this guide.)

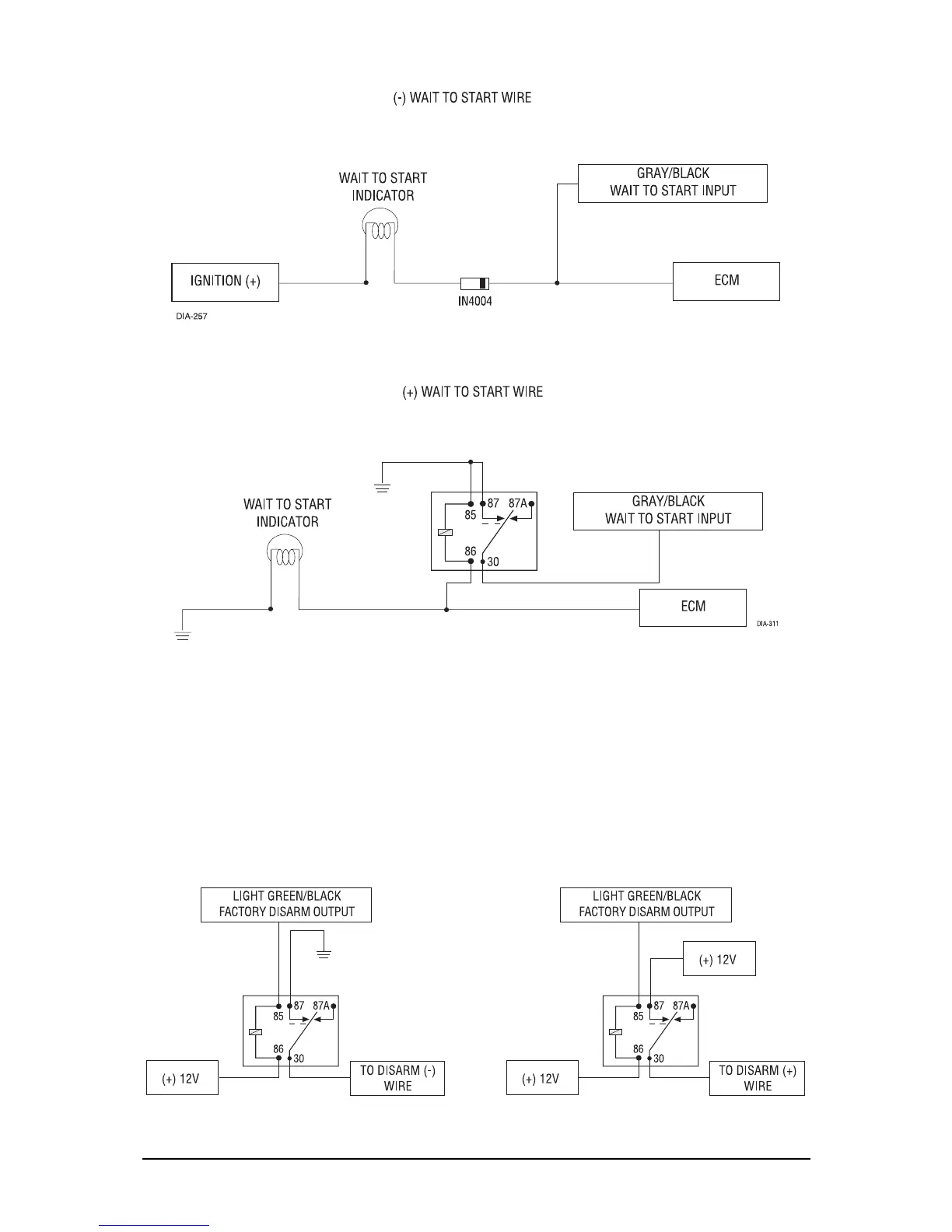

RELAY FOR NEGATIVE (-) DISARM WIRE RELAY FOR POSITIVE (+) DISARM WIRE
www.clifford.com
13
