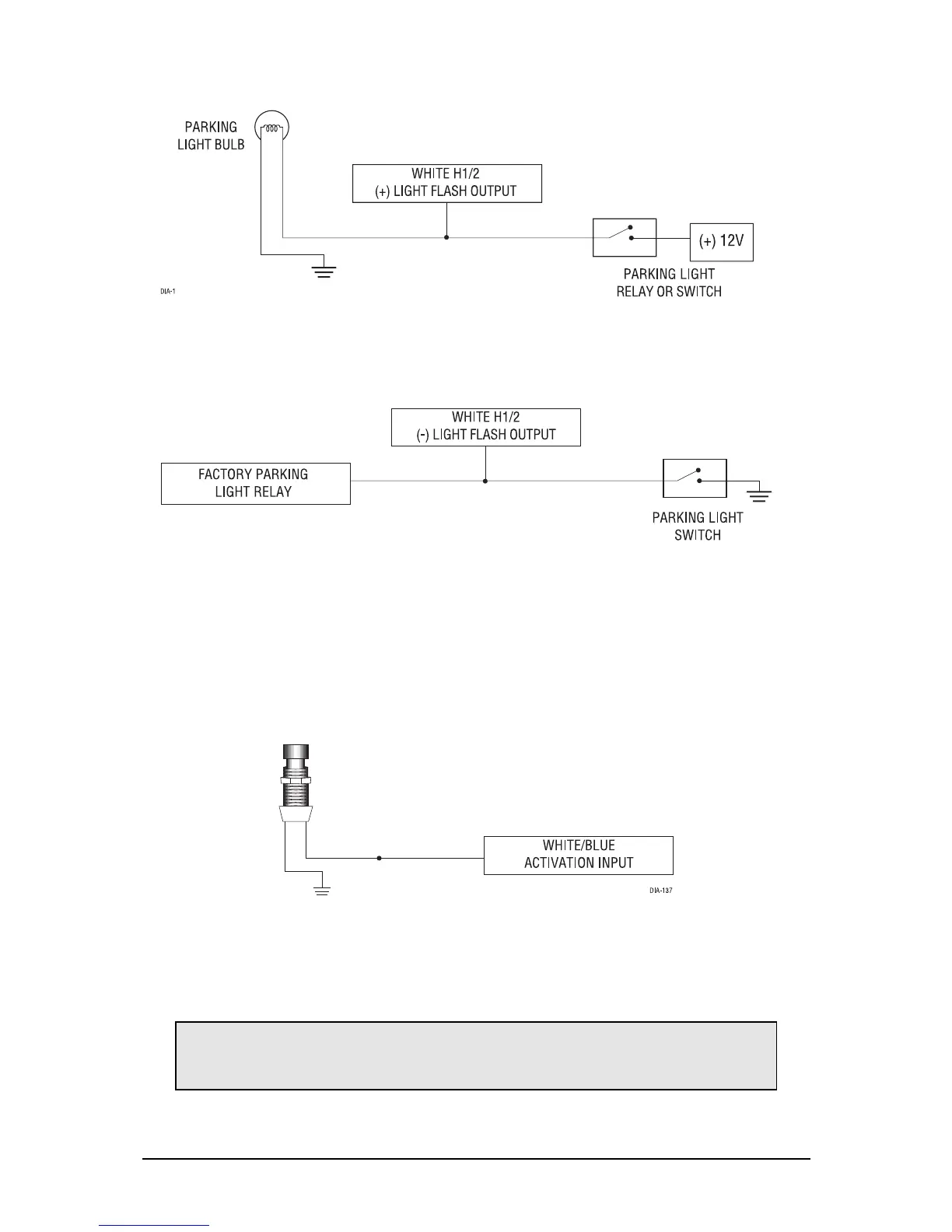

(+) POSITIVE LIGHT FLASH OUTPUT
(-) LIGHT FLASH OUTPUT
H1/3 WHITE/BLUE Remote Start (-) Activation Input
A momentary input on this wire will start or stop the motor, just as transmitting Channel 3 from
the remote transmitter does. It is often connected to an optional momentary push-button switch to
make access to Valet Take Over Mode and Timer Mode more convenient.
H1/4 BLACK /WHITE (-) 200 mA Domelight Supervision Output
Connect this wire to the optional domelight supervision relay as shown in the following diagram.
IMPORTANT! The H1/4 output is only intended to drive a relay. It cannot be connected
directly to the domelight circuit because the output cannot support the current draw of
one or more light bulbs.
www.clifford.com
9
