CV112EIDZ –CV168EI –CV168EIDZ Models :
Unplug the product from the electrical outlet.

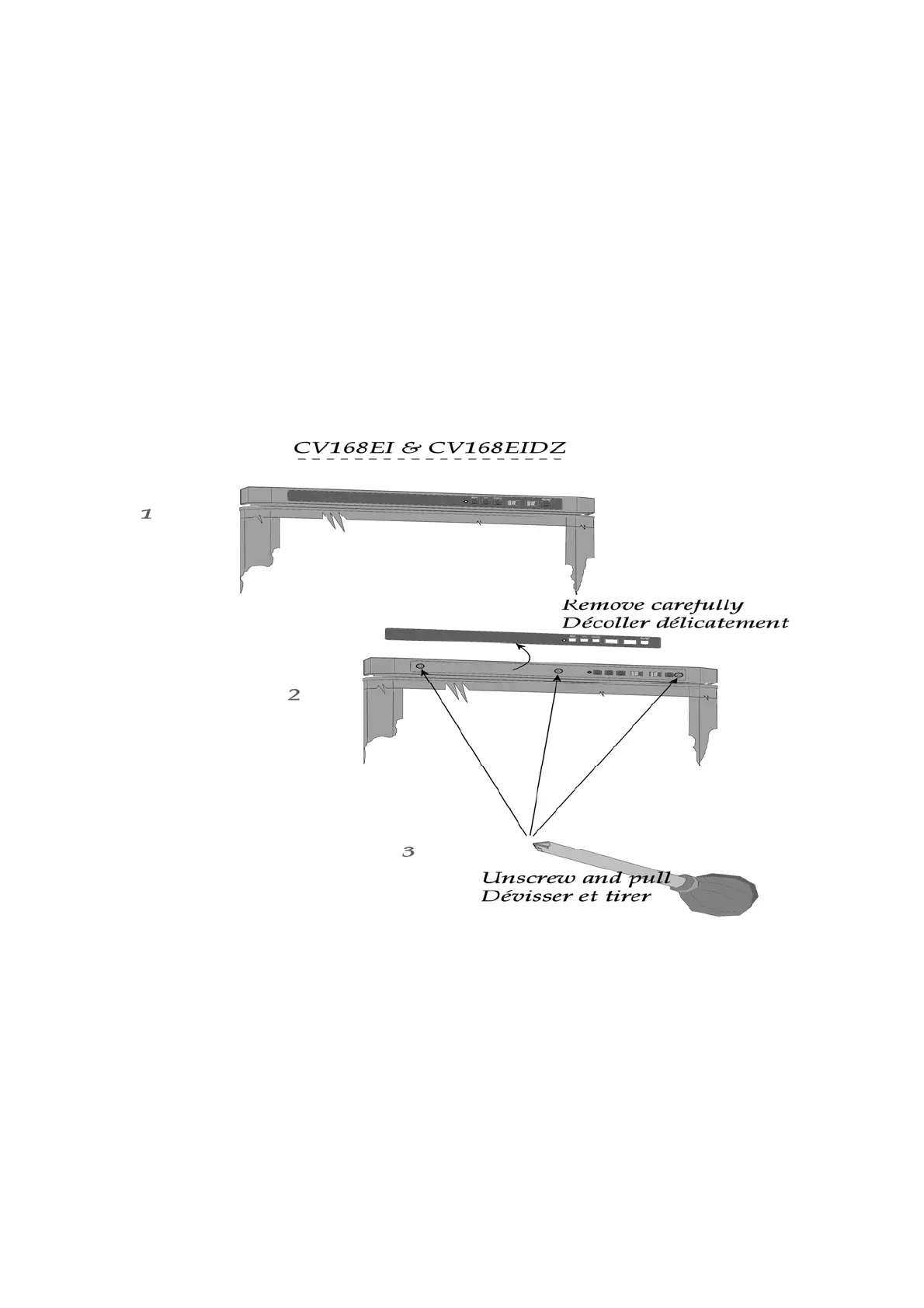

Pull off delicately the serigraphy from the control panel to reach the fixations screws.
Dismantle the control panel to reach the upper hinge.
Take off the door and place the pivot of the lower hinge on the opposite side.
Put the door in new position and fix it like it was before on the opposite side.
Reassemble the control panel then put back the serigraphy.
19
