Climate Technology 43168 - Mount Wallplate

8
9
Mount Wallplate

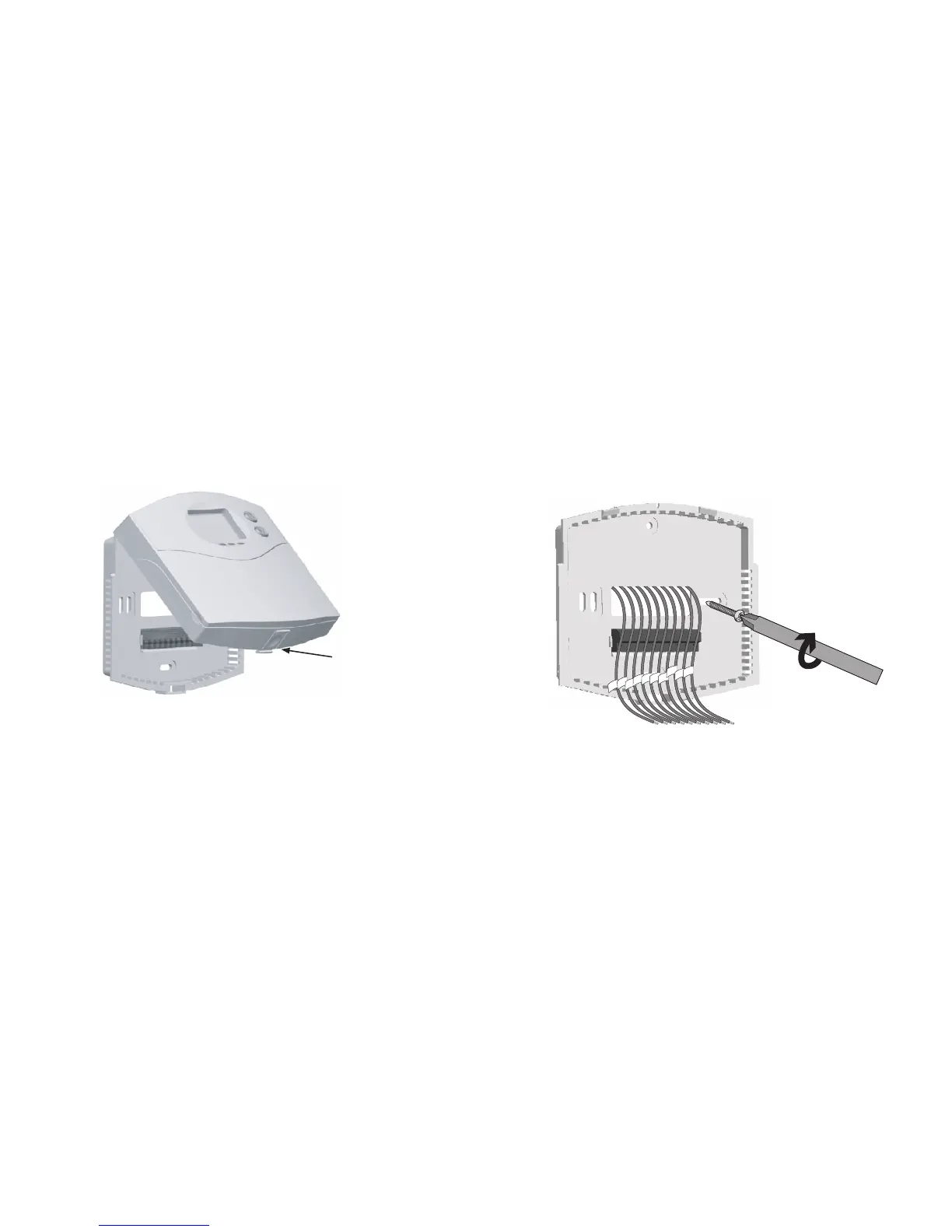

• Remove the wallplate from the thermostat by pressing the release tab on the bottom of the thermostat.
See Figure 2.
Figure 2
• Positionwallplateonwallandpullexistingwiresthroughthelargeopening,thenlevelforappearance.If
the existing mounting holes from the old wallplate line up with the slots in the new wallplate, then use the
exisitng holes. If the exisitng holes do not line up with the slots in your new wallplate, then mark the wall
for holes for the provided plastic anchors.
• Drillholeswith3/16”bitandgentlytapanchorsintotheholesuntilushwithwall.
• Reposition wallplate, pulling wires through large opening. Insert provided mounting screws into wall
anchor and tighten. See Figure 3.
Figure 3
Release Tab
R
E
B
G
W2
O
Y1
Y2
L
C
Wallplate
Thermostat
