Climate Wizard CW-H15 - Cooler Views; Cooler Dimensions

COOLERVIEWS
2
SeeleyInternationalPtyLtd
CWH-10&15

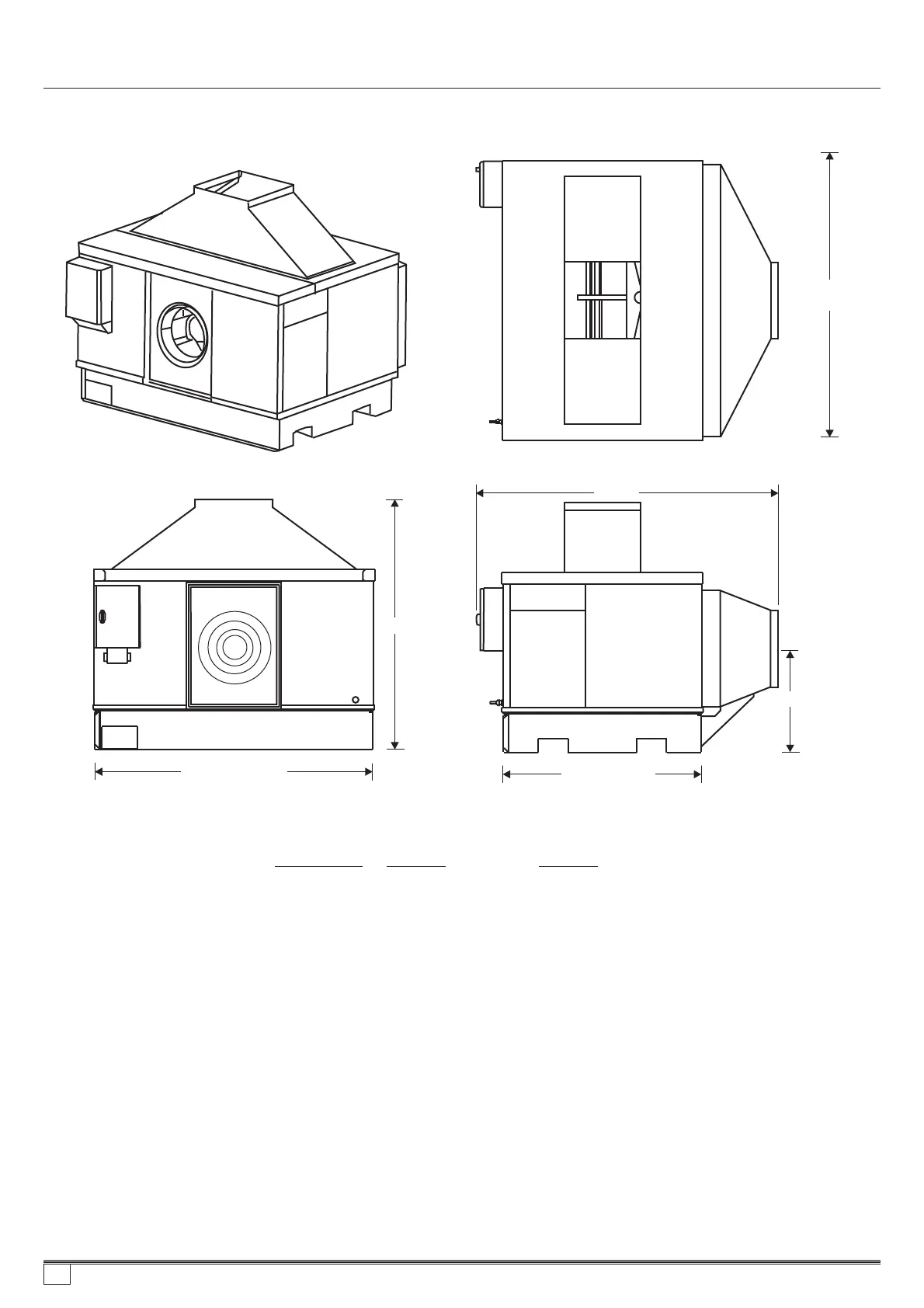

Dimensions CW-H10 CW-H15
Width: 1230 1825
Height* 1610 1610
Length 1985 1985
Width 1206 1800
Length 1300 1300
InletDuct 500(W)x500(H) 500(W)x500(H)
OutletDuct 500(W)x500(H) 500(W)x500(H)
Centrelineofoutletductabovebase
667 667
*
Overall
MountingPlinth
Overallheightcanvaryasshownduetomanufacturingandmaterialtolerances.
(withControlBoxhandle)
REAR
ISOMETRIC
MountingPlinth
1206(CW-H10)
1800(CW-H15)
1610
TOP
1825CW-H15
1230CW-H10
SIDE
1985
MountingPlinth
1300
667
859736-A AU1007
+20
-0
+20
-0
