ClimateMaster Tranquility 30 Series - Horizontal Service Access Requirements

7
Residential H&V - 60Hz HFC-410A
Rev:January 30, 2017
climatemaster.com

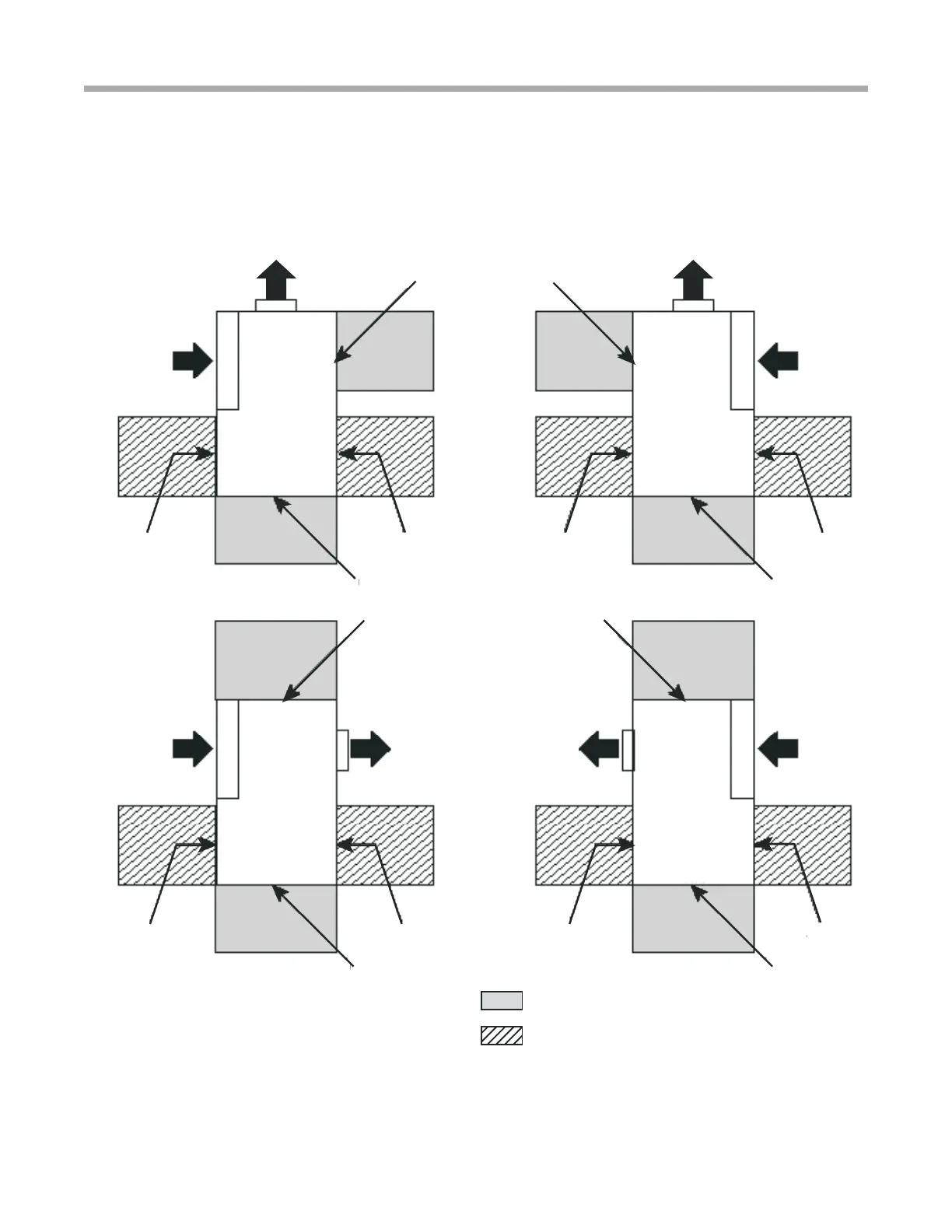

Horizontal Service Access
Left Return Back Discharge
Right Return Back Discharge
Supply
Air Flow
Supply
Air Flow
Return
Air Flow
Return
Air Flow
Air Coil
Air Coil
Air Coil
Air Coil
Front Front
Front
Front
BSP
BSP
ASPASP ASP ASP
ASP ASP ASPASP
CCP
CCP
CCP
CCP
BSP BSP
Return
Air Flow
Return
Air Flow
Supply
Air Flow
Supply
Air Flow
Left Return Straight Discharge
Right Return Straight Discharge
= mandatory 2Ⱦ service access
= (optional) additional 2Ⱦ service access
Notes:
1. While clear access to all removable panels is not required,
installer should take care to comply with all building codes
and allow adequate clearance for future fi eld service.
2. CCP and BSP requires 2’ service access.
3. Blower service access is through back panel on straight
discharge units or through panel opposite air coil on back,
discharge units.
4. ASP are removable panels that provide additional access
to the units interior. Clear access to ASP panels is not
required and they are not to be used in place of the
mandatory CC and BSP panels.
Legend:
CCP = Control/Compressor Access Panel
BSP = Blower Service Panel
ASP = Additional Service Panel (not required)
