AIR-CONDITIONERS
COMPACT and SPLIT QUATTRO models
page 10
www.climma.it

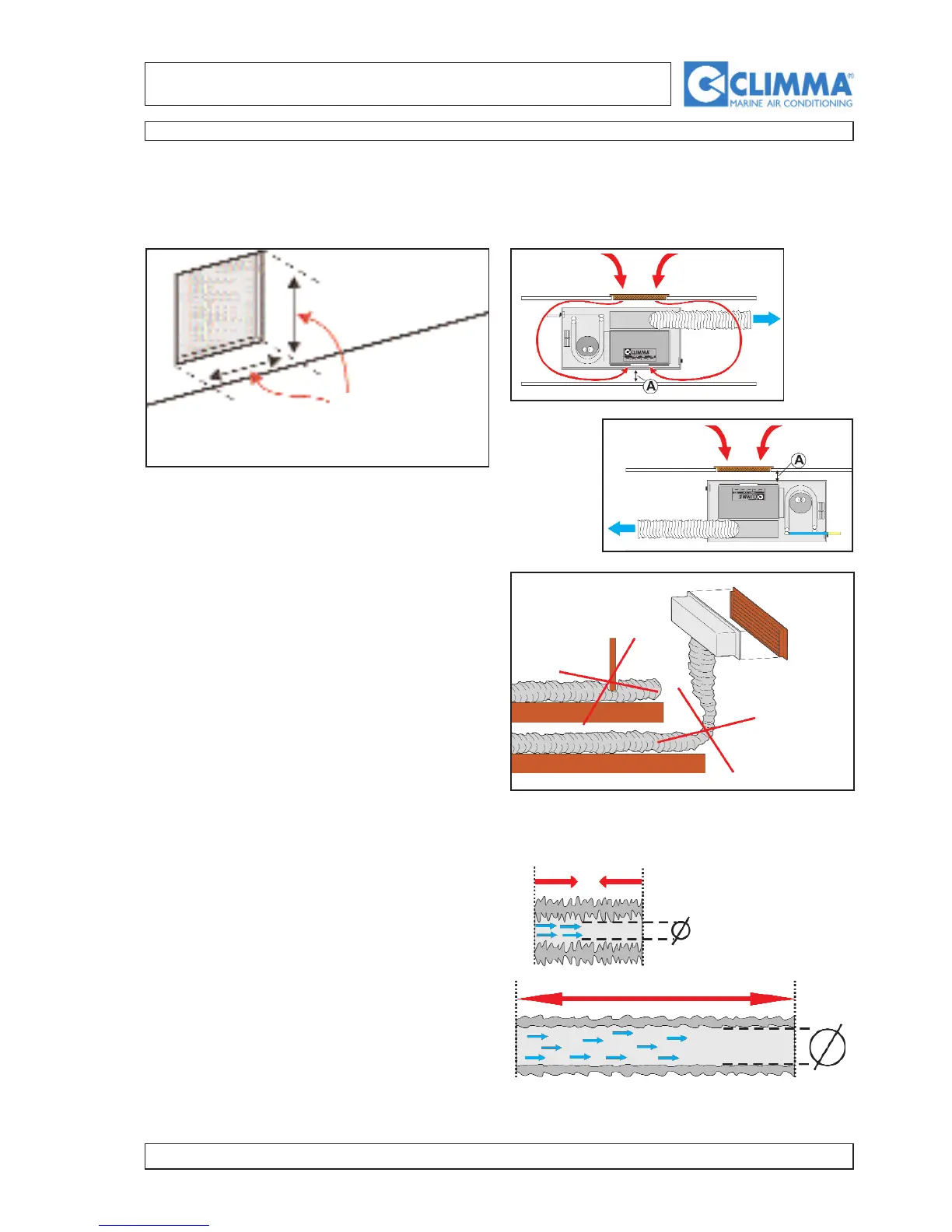

3 INSTALLATION OF THE COMPONENTS
3.9- AIR CIRCULATION SYSTEM (see examples on page 12)
3.9.A - Sucking up
The ambient air is sucked up through one or more
grills of suitable dimensions. The minimum dimen-
sions are 244x244.
(To canalize the air flow back, call the technical
assistance).
min 244 x 244
3.10.B - Air circulation
3.11.B - Air ducts
The efficiency of the installation depends on the air
volume. So it is important to avoid narrow passages
in the air circulation system, keeping the original
diameter dimensions and using short pipes.
The isolated ducts must not be bent so that the air
can circulate currently. Cut out the unuseful lenght.
View from above
Viiew from above
