3 INSTALLATION OF THE COMPONENTS
3.13 - ELECTRICAL BOX
It contains the following electrical connections:
- to the grid;
- to the compressor-fan-checks group;
- to the control panel;
- to the sea water electrical pump;
- to the external temperature probe.

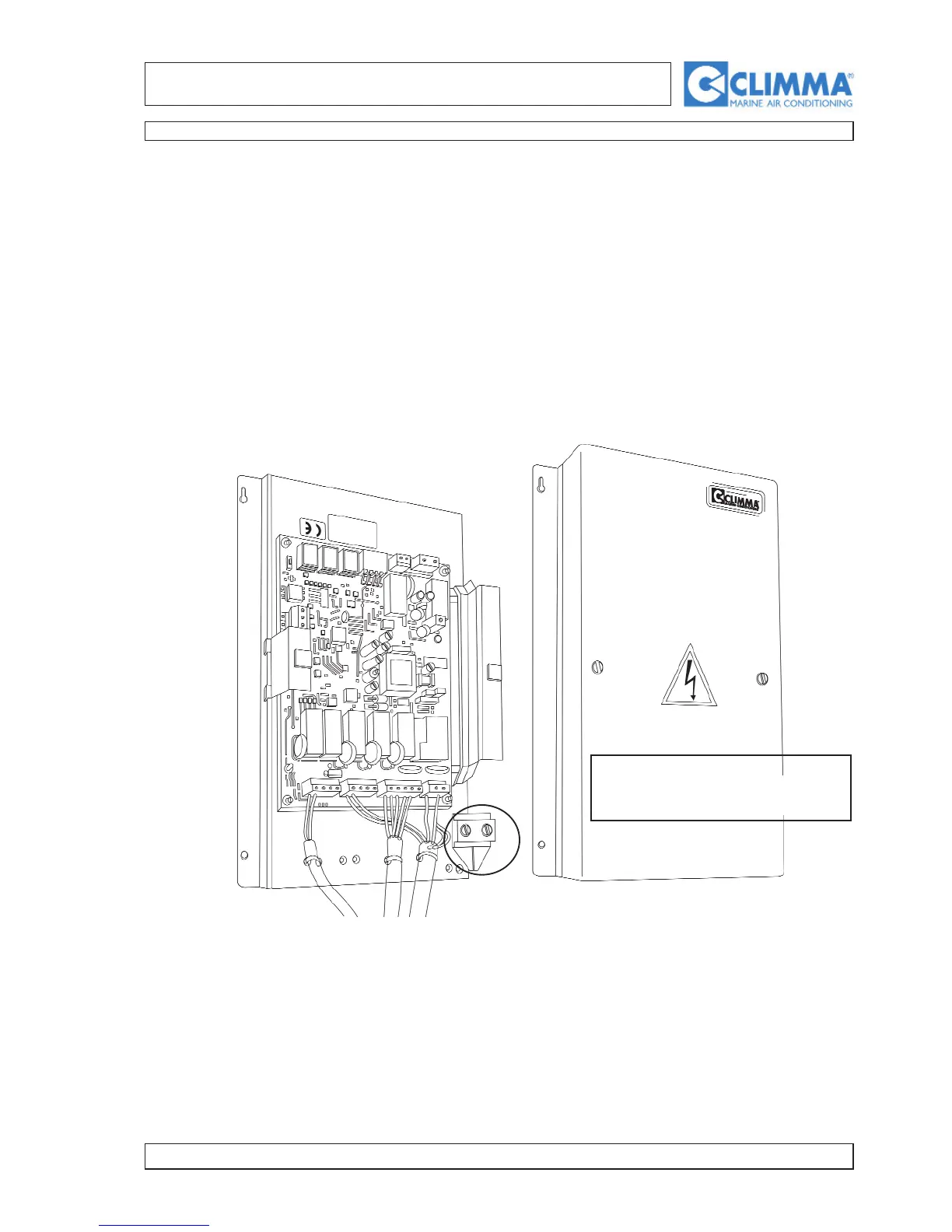

3.13.A - PLACING
You must install the electrical box near the air-condi-
tioning unit, to which it is connected by means of a 2
m cable. It must be easily accessible for the mainte-
nance or repair. Fasten the inlet cables with the suit-
able terminal (A).
You must fasten the electrical box on
the wall by means of four screws, using
the holes provided in the base.
You can install the electrical box
in any position.
