AIR-CONDITIONERS
COMPACT and SPLIT QUATTRO models
page 14
www.climma.it
3 INSTALLATION OF THE COMPONENTS

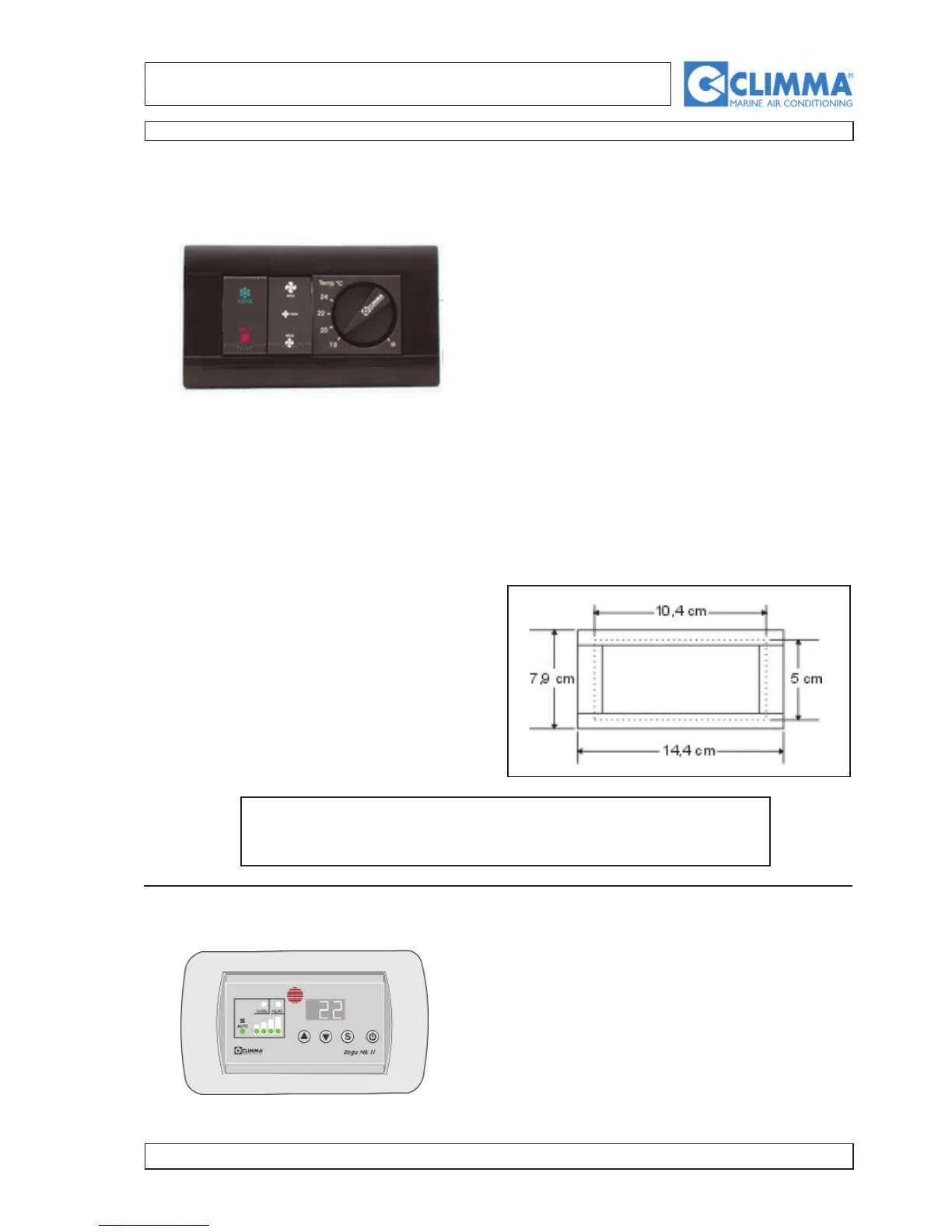

3.14- MECHANICAL CONTROL PANEL
3.15- DIGITAL CONTROL PANEL VEGA MKII
By means of the control panel, you can set and control the following functions:
A.-Switching on and off
SUMMER AIR-CONDITIONING : push the “COOL” but-
ton with the ice star.
WINTER HEATING : push the “HEAT” button with the
orange sun.
To switch off, put the switch in the central position.
B.- Setting-regulation of the temperature by means of the
thermostat (TEMP). The thermostat has got a 3 m capillary
with a bulb. The bulb must perceive the sucked up air (it
must not come into contact with the exchanger tongues; it
is in fact the battery where the refrigerant spreads: the
tongues cool down, so that if the bulb comes into contact
with them, it will perceive a temperature value that is lower
than the ambient temperature).
C.- Regulation of the fan speed: by means of the button
with the fan it is possible to regulate the four fan speeds.
Push the button to select the fan speed: upwards arrow
means speed increase and downwards arrow means
speed decrease. Switching on the fan for the first time, it
will run in MED speed. Then it will run according to the last
selected speed.
3.14.A - PLACING
You must choose the correct position to connect the
panel to the board by means of a 3 m cable (includ-
ed) and to install the thermostat bulb on the unit
exchanger. If necessary, you can install the bulb not
directly on the exchanger but in the room, choosing
the right position to control the temperature. To fas-
ten the bulb on the wall, you can use the suitable
plaque.
3.14.B.- INTERCHANGEABLE PLAQUE
The standard plaque (included) is black.
3.14.C - FASTENING
The panel has been designed for a casing fasten-
ing. You must drill into it as indicated on the right.
IMPORTANT NOTE : In the panel there is only low voltage. After having installed it,
the back must not be accessible. An optional protection cover (code: M69330) is avail-
able. If the panel back is accessible because it may suffer damages.
For the technical specifications and for the installation direc-
tions, make reference to the manual VEGA MKII (code:
A52000).
