AIR-CONDITIONERS
COMPACT and SPLIT QUATTRO models
page 21
www.climma.it
5 - FUNCTIONS OF THE BOARD
5.1 - ADJUSTABLE DELAY
When more groups are connected to the same grid
and are supplied simultaneously, it is necessary to
activate the delay function: you must turn its device
clockwise as indicated in the figure.
You can regulate the delay from 2 to 12 seconds.

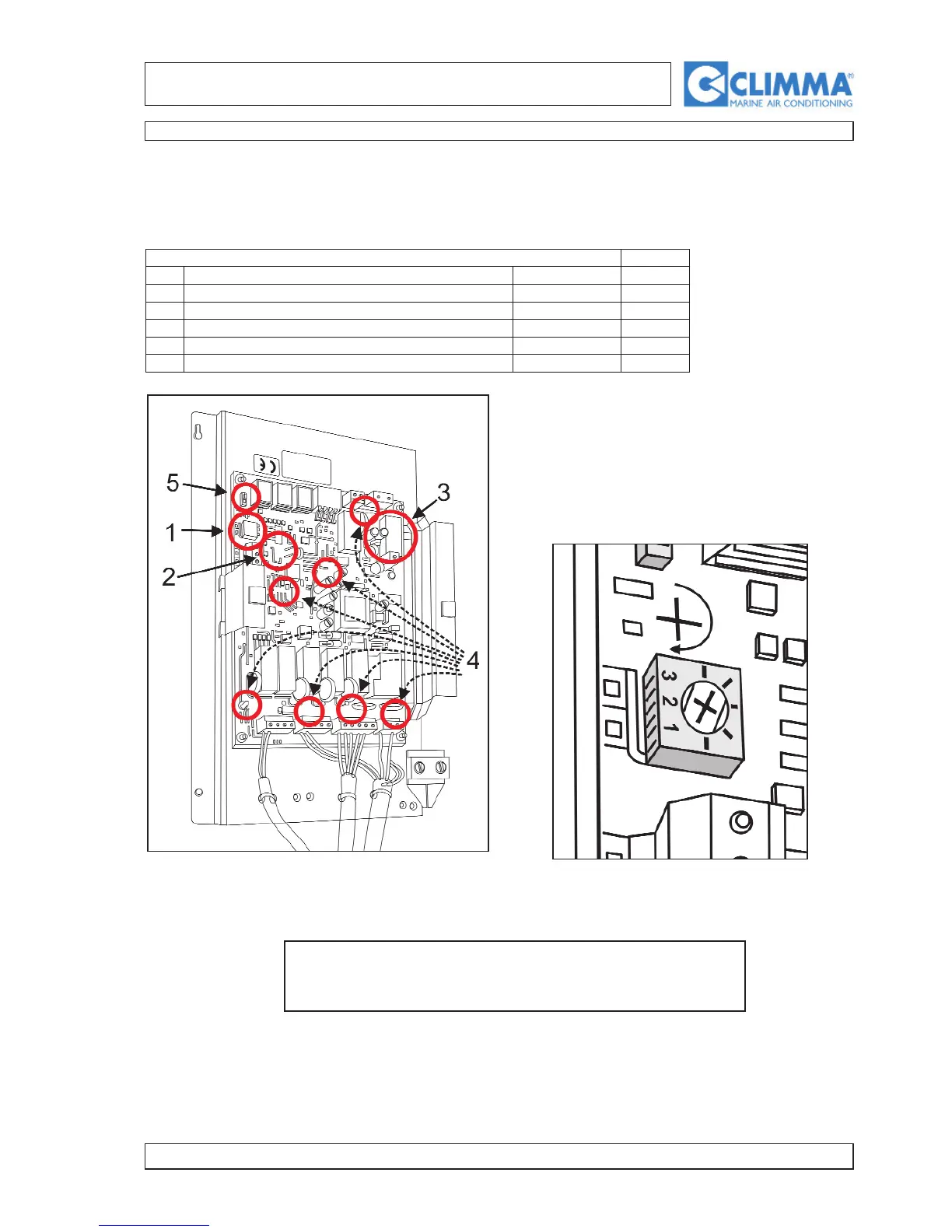

Detail of the delay device (detail 1 of the figure 1).
FUNCTIONS OF THE BOARD / CAPTION
Paragraph Page
1 ADJUSTABLE DELAY 5.1 21
2 BOARD SETTING 5.2 22
3 POWER FUSE 5.3 23
4 FUNCTIONING WARNING LIGHTS 5.4 24
5 SELECTOR FOR MULTIPLE INSTALLATIONS 5.5 25
Figure 1
NOTE : It is necessary to differentiate the switching on delays of
different air-conditioners at least of 4 seconds one from another.
5 ELECTRICAL CIRCUIT
