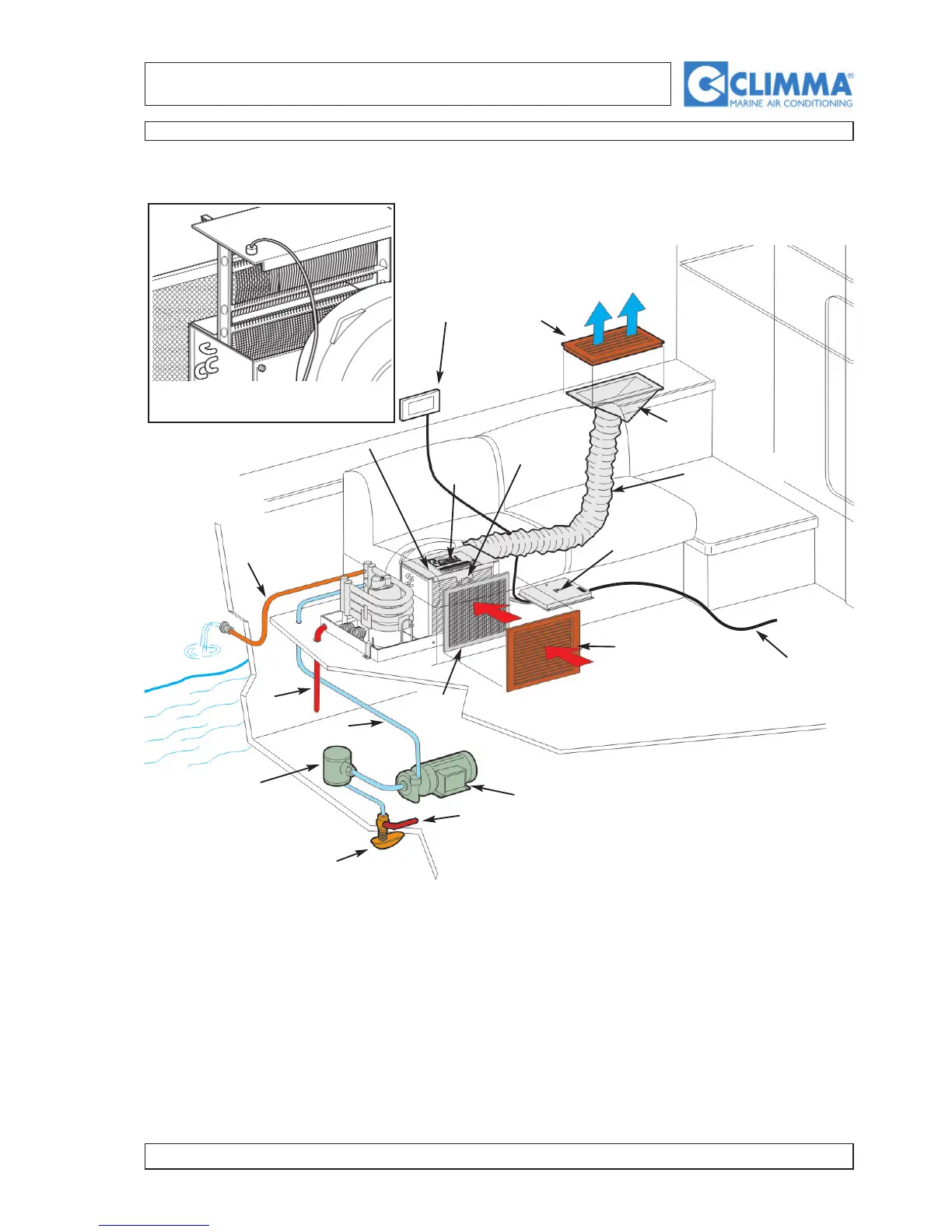

2.1 Installation diagram of the Compact air-conditioner
04) Electrical box
05) Electrical supply
06) Air inlet grill
07) Air filter
08) Remote control panel
09) Insulating flexible duct
10) Air outlet plenum
11) Air outlet grill
12) Condensation drainpipe
13) Sea water inlet pipe
14) Sea water pump
15) Sea water intake valve
16) Sea water filter
17) Sea water intake
18) Thermostat bulb
19) Air-conditioner
20) Sea water drainpipes
08
17
16
15
14
13
12
06
11
10
04
18
09
07
19
20
05
Electrical heating (EH) version.
