3 INSTALLATION OF THE COMPONENTS
E.- The air-conditioner is connected to the electrical
box through cables of different lenght. So there must
be an accessible space (next to the compressor unit
for SPLIT models) to install the electrical box.
F.- The thermostat bulb and the aspiration filter must
be mounted on the air-refrigerating gas exchanger.
This side must be accessible for the filter mainte-
nance.
G.- The maximum distance between the control panel
and the electrical box is 3 m both for the thermostat
capillary and for the connection cable.

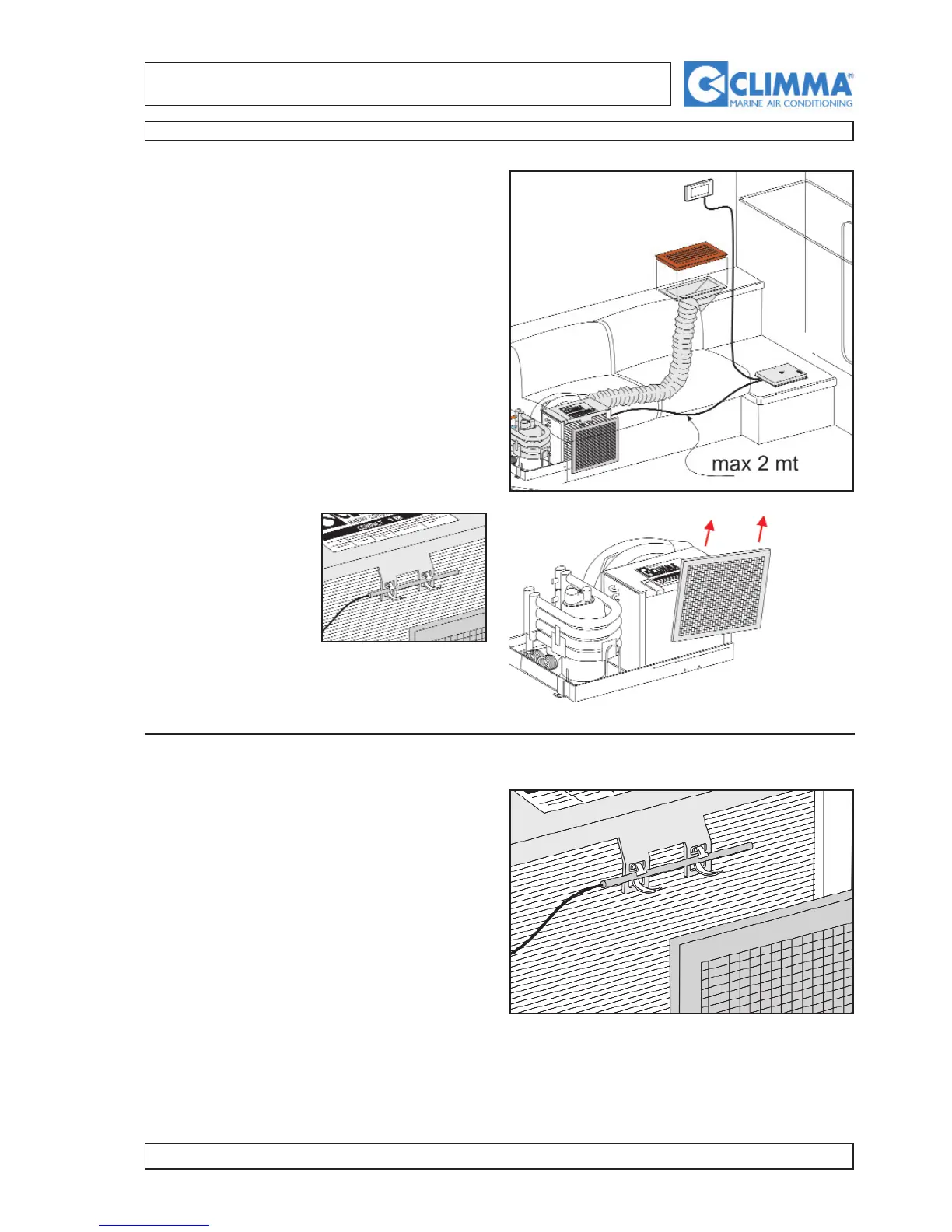

3.4 - THERMOSTAT BULB
The thermostat bulb must be fastened to the air
exchanger by means of special latches.
The bulb must keep separated from the exchanger
because it must be influenced only by the sucked up
air, but not by the refrigerating circuit. Sometimes
you can install the bulb not directly on the exchan-
ger but in the room, so that it is sensitive to the ambi-
ent temperature. To fasten the bulb to the wall, you
can use the special plaque.
