FL-20A Instruction Manual - Page 17
Model FL-20A Cable Fault Locator
Testing Large Cables with the FL-20A
If conductors are too large to insert into the probes, special attention
must be paid to insure that proper connections are made. Poor connec-
tions can be dangerous to personnel. Additionally, the FL-20A graphics
display may not function correctly due to excess electrical noise created
by improper grounding.

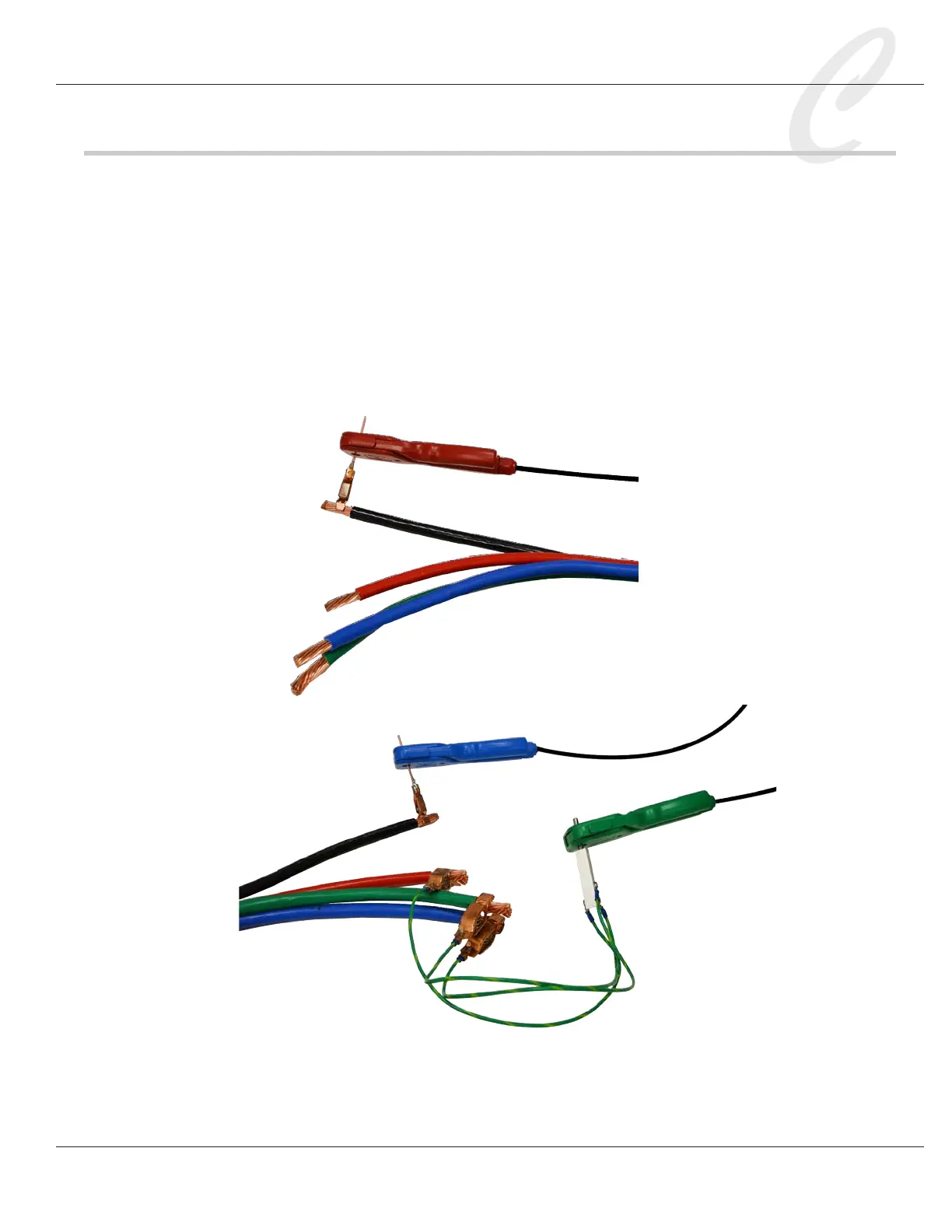

Alligator clip assemblies similar to those shown in the photos below are
highy recommended when cables to be tested are too large to t properly
in the probes. These items are available for purchase. Smaller cable sizes
can use the enclosed 3 probe clip assemblies part number 92100. Larger
cables may require part number 92113.
