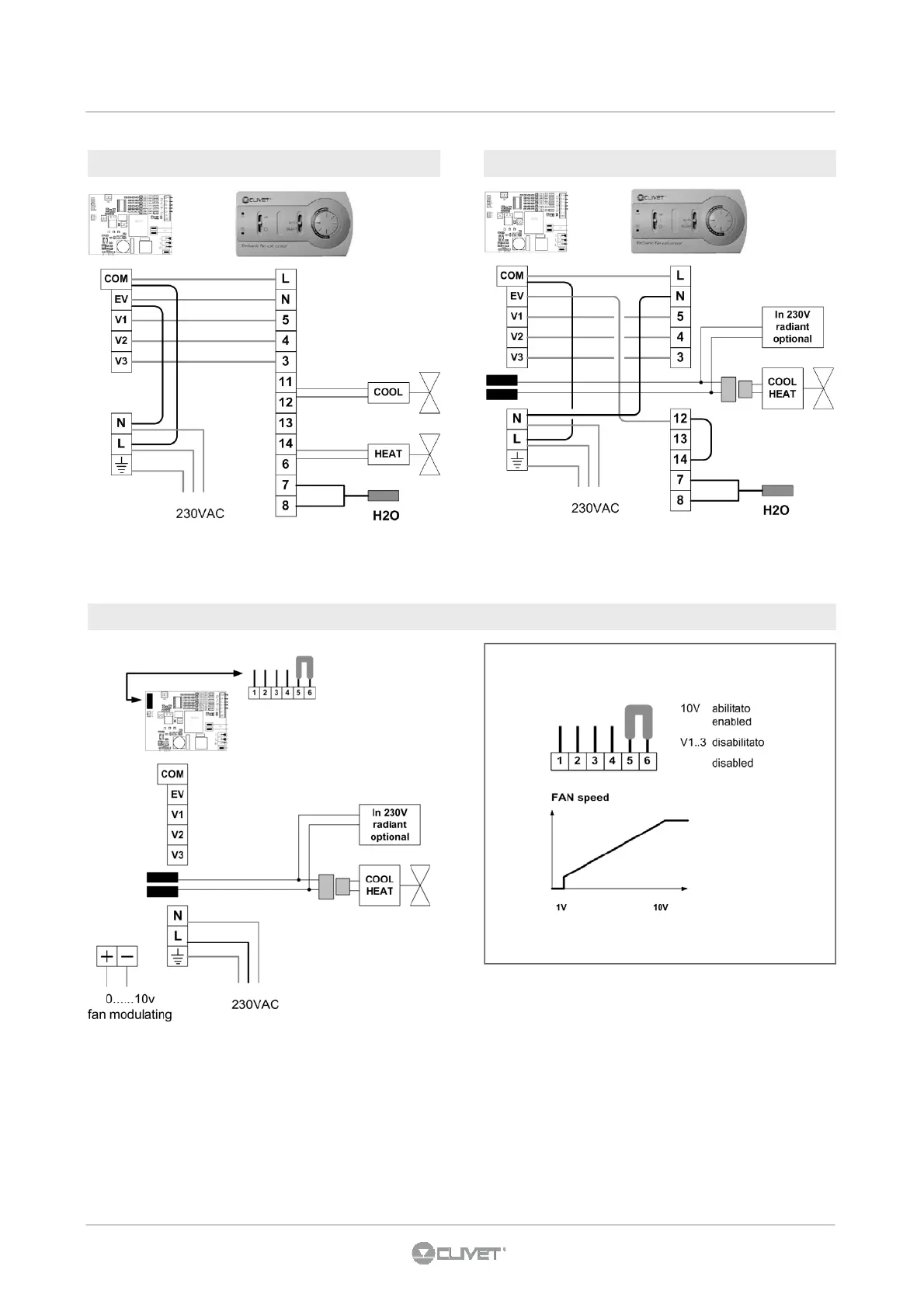

5 - ELECTRICAL CONNECTIONS
0-10V enable command
10v = fan 1400 rpm
1v = fan 450 rpm
<1v = fan off
HID-E3 thermostat - 4 pipe system
H2O water temperature probe
HID-E3 thermostat - 2 pipe system
H2O water temperature probe
66
