Installation
– Fasten the installation covers to the four corners
by pushing them inwards.

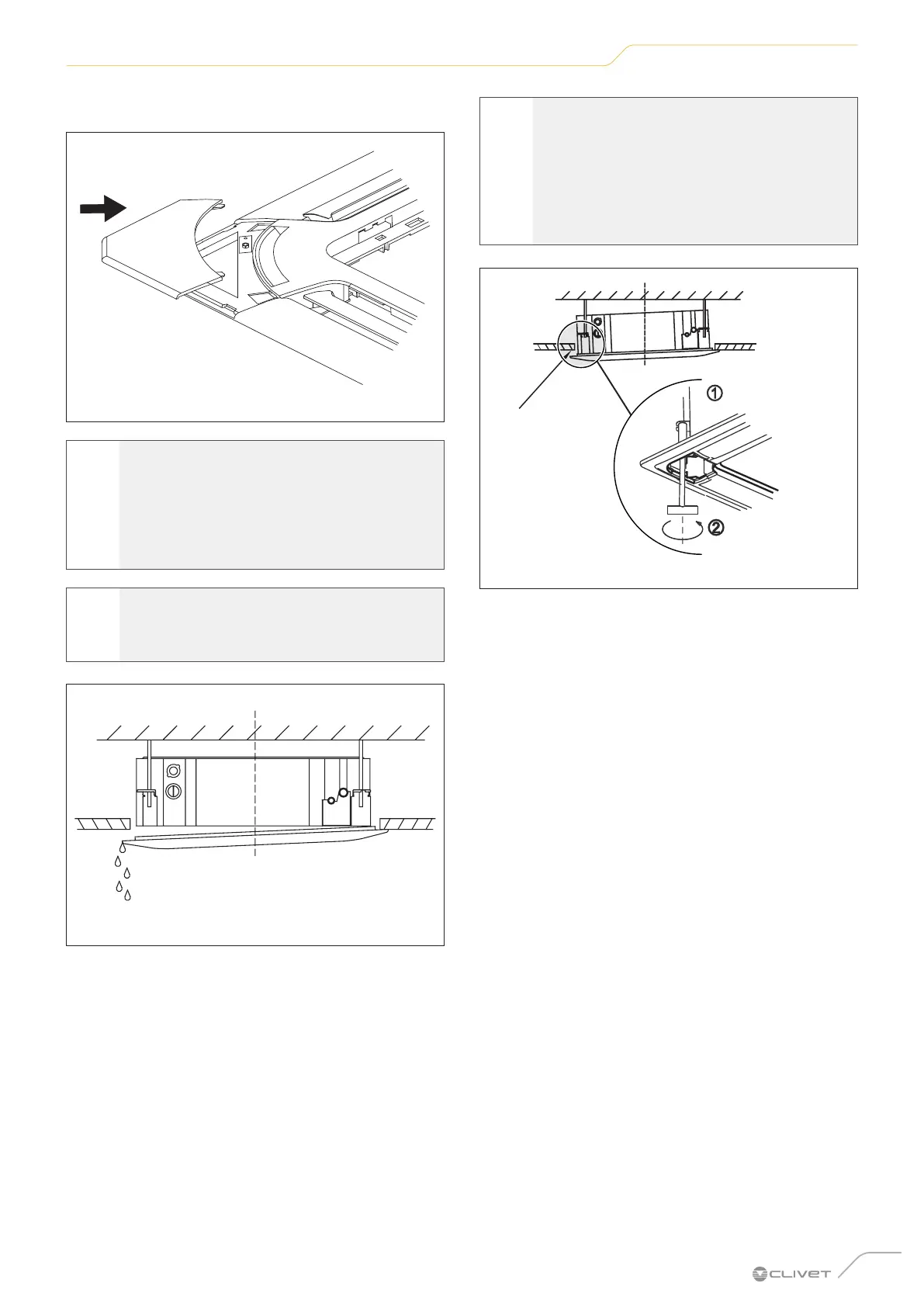

Fig. 33
l
WARNING
If the height of the indoor unit needs adjusting,
it can be done through the openings on
the four sides of the panel. Check that this
adjustment does not affect the internal
electrical connections and the drain pipe.
m
CAUTION
Insufficient tightening of the screws can cause
water leaks.
Condensate
Fig. 34
m
CAUTION
If the unit is not hung properly and there is an
empty space, the height of the unit will have
to be adjusted to ensure correct operation.
The height of the unit can be adjusted by
unscrewing the top nut and adjusting the
bottom nut.
Space not
allowed
Unscrew the
top nut
Adjust the
bottom nut
Fig. 35
