12
Installation
Larghezza
Altezza
Larghezza
Altezza
Width
Width
Height
Height

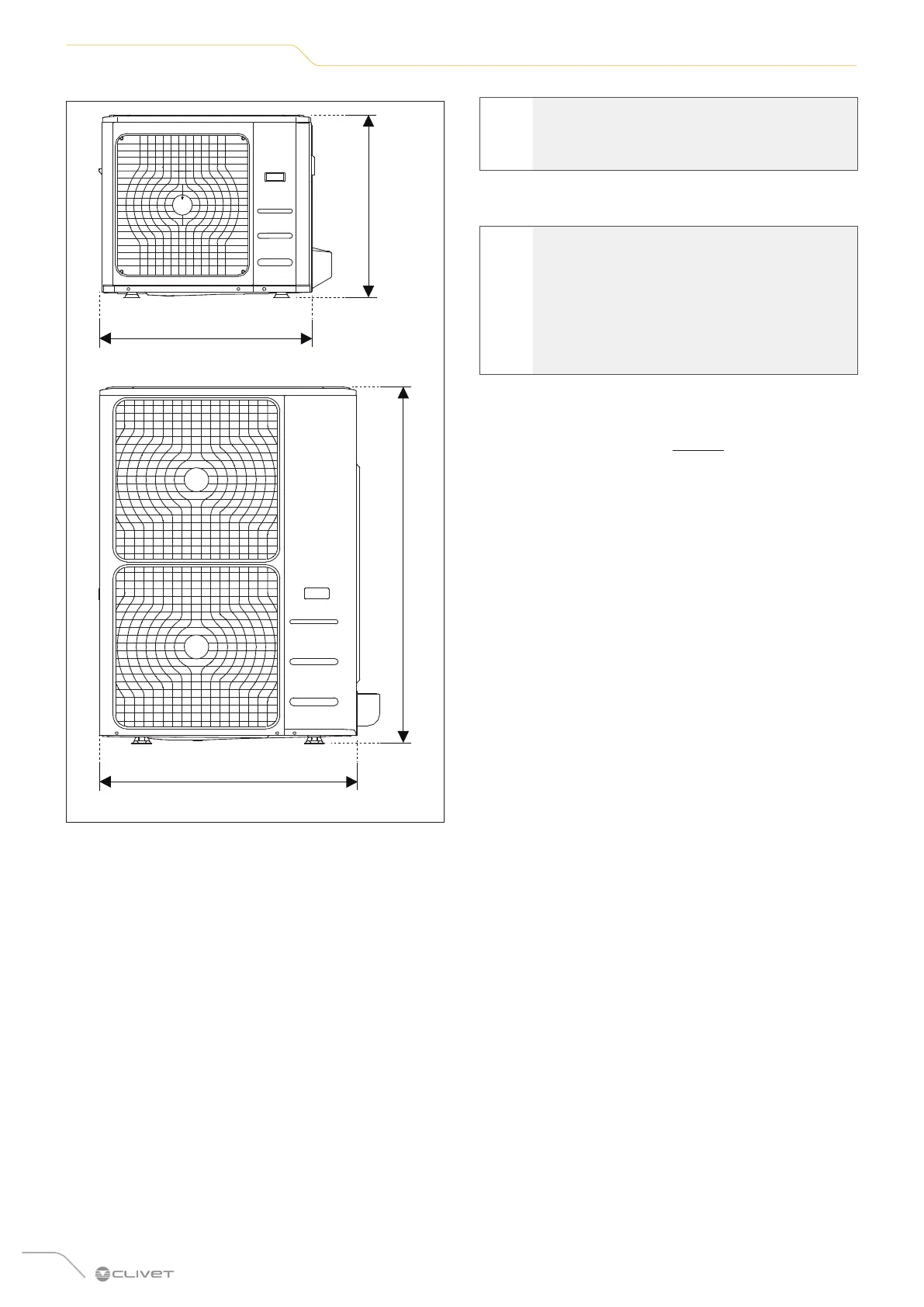

Fig. 9
If the unit is to be installed on the floor or on a concrete
mounting platform, proceed as follows:
1 Mark the positions of the four expansion bolts
according to the measurements shown in the
mounting measurements diagram.
2 Drill the holes for the expansion anchors (M10).
3 Clean the holes from concrete dust.
4 Insert a nut at the end of each expansion block (M10).
5 Hammer the expansion anchors into the holes made.
6 Remove the nuts from the expansion anchors and
place the outdoor unit on the anchors.
7 Insert a washer on each expansion plug and re-apply
the nuts.
8 Using a spanner, tighten the nuts firmly.
m
CAUTION
When drilling holes in concrete, it is
recommended to always use eye protection.
If the unit is to be installed on a wall-mounted bracket,
proceed as follows:
a
CAUTION DANGER
Before installing a wall unit, make sure the wall
is made of solid brick, concrete or materials
with similar strength characteristics. The load
capacity of the wall must be sufficient to
support at least four times the weight of the
unit.
1 Mark the positions of the holes for the brackets
according to the measurements in the mounting
dimensions diagram (see “Fig. 9”).
2 Drill the holes for the expansion anchors.
3 Clean the holes from dust and concrete residue.
4 Insert a washer and nut at the end of each expansion
plug.
5 Screw the expansion bolts into the holes of the
mounting brackets, place the brackets in position and
hammer the expansion bolts into the wall.
6 Check that the mounting brackets are aligned.
7 Lift the unit carefully and place the mounting feet on
the brackets.
8 Screw the unit firmly to the brackets.
TO REDUCE VIBRATION OF WALL MOUNTED UNITS
If possible, install the unit on the wall using rubber seals
to reduce vibration and noise.
