CLIVET MSAN-XMi 180T - 4. INSTALL THE CONNECTING PIPE

Fig.4-8
Fig.4-7
Fig.4-6
ĭ10 expansion bolt
Rubber anti-vibration
mounting
ŐPP

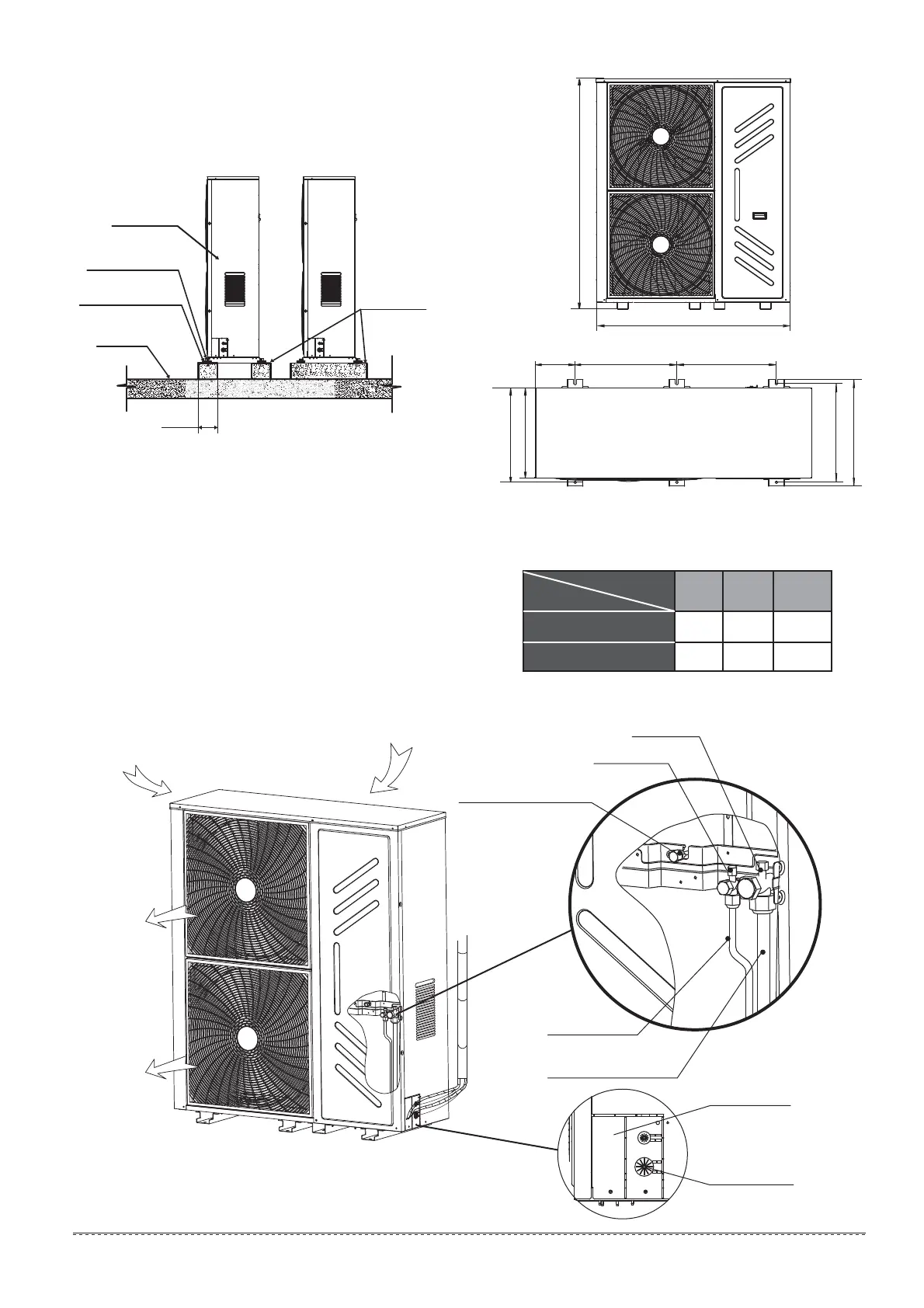

4.3 Outdoor unit basement
1Advantages of a strong and correct basement :
ŚOutdoor unit won’t subside
śOutdoor unit won’t generate abnormal noise caused by improper
basement.
2)Basement types
ŚSteel-frame basement
śConcrete basement(See
Fig.4-6 for common practice)
225
175
555
505
1460
1360
1650
33.5kW/40kW
AB C
&
540
500
505
475 450
$%
45kW
4.4 Dimension(Unit: mm)
Model
Size
Table 4-1
Fig.4-9
4.5 Pipe connection
Gas side
Liquid side
Needle valve(Pressure inspection
and refrigerant adding)
Liquid side pipe
Connecting pipe
(Accessory)
Through-pipe hole
Through-wire hole
Points of making a basement:
Ś Host unit basement should be made in strong concrete ground,
See Fig 3.6 for common practice or start after field measurement
ś The basement should be completely horizontal and make sure all
the contactors can contact symmetrically.
Ŝ Ensure the the basement supports the vertical foldings of the front
and back bottom plates directly, since its the actual bearing place.
ŝ Macadam base is unnecessary. But cocrete surface should be
roughed. The proportions used in mixing the concrete should be
cement 1/sand 2/ pebble 4, including ĭ10reinforced rebar. Even
the surface of concrete. The edge of the basement should be
chamfered.
Ş Drainage ditch should be arranged around the basement in order
to drainage water around the unit.
ş Please check endurance of the roof to ensure loading capacity
could bear the weight.
Outdoor unit
Solid ground
or roof
Concrete
foundation
