CLIVET MSAT-XEE 10.2 User Manual

22 MSAT-XEE 8.2-30.2 M09G60E14-04
Set the scheduling
1 set the scheduling num.1 scheduling 1 parameters scheduling 2 parameters scheduling 3 parameters
1.1 set event 1
Event hour → par. tE10
Event minutes → par. tE11
Unit mode → par. tE12 (0=On, 1=standby)
tE38
tE39
tE40
tE66
tE67
tE68
1.2 set event 2
Event hour → par. tE17
Event minutes → par. tE18
Unit mode → par. tE19 (0=On, 1=standby)
tE45
tE46
tE47
tE73
tE74
tE75
1.3 set event 3
Event hour → par. tE24
Event minutes → par. tE25
Unit mode → par. tE26 (0=On, 1=standby)
tE52
tE53
tE54
tE80
tE81
tE82
1.4 set event 4
Event hour → par. tE31
Event minutes → par. tE32
Unit mode → par. tE33 (0=On, 1=standby)
tE59
tE60
tE61
tE87
tE88
tE89
2 set the scheduling num.2 column → scheduling 2 parameters
3 set the scheduling num.3 column → scheduling 3 parameters
4 assign the scheduling to monday tE01 = 1 scheduling 1 = 2 scheduling 2 = 3 scheduling 3
5 assign the scheduling to tuesday tE02 = 1 scheduling 1 = 2 scheduling 2 = 3 scheduling 3
6 assign the scheduling to wednesday tE03 = 1 scheduling 1 = 2 scheduling 2 = 3 scheduling 3
7 assign the scheduling to thursday tE04 = 1 scheduling 1 = 2 scheduling 2 = 3 scheduling 3
8 assign the scheduling to friday tE05 = 1 scheduling 1 = 2 scheduling 2 = 3 scheduling 3
9 assign the scheduling to saturday tE06 = 1 scheduling 1 = 2 scheduling 2 = 3 scheduling 3
10 assign the scheduling to sunday tE07 = 1 scheduling 1 = 2 scheduling 2 = 3 scheduling 3

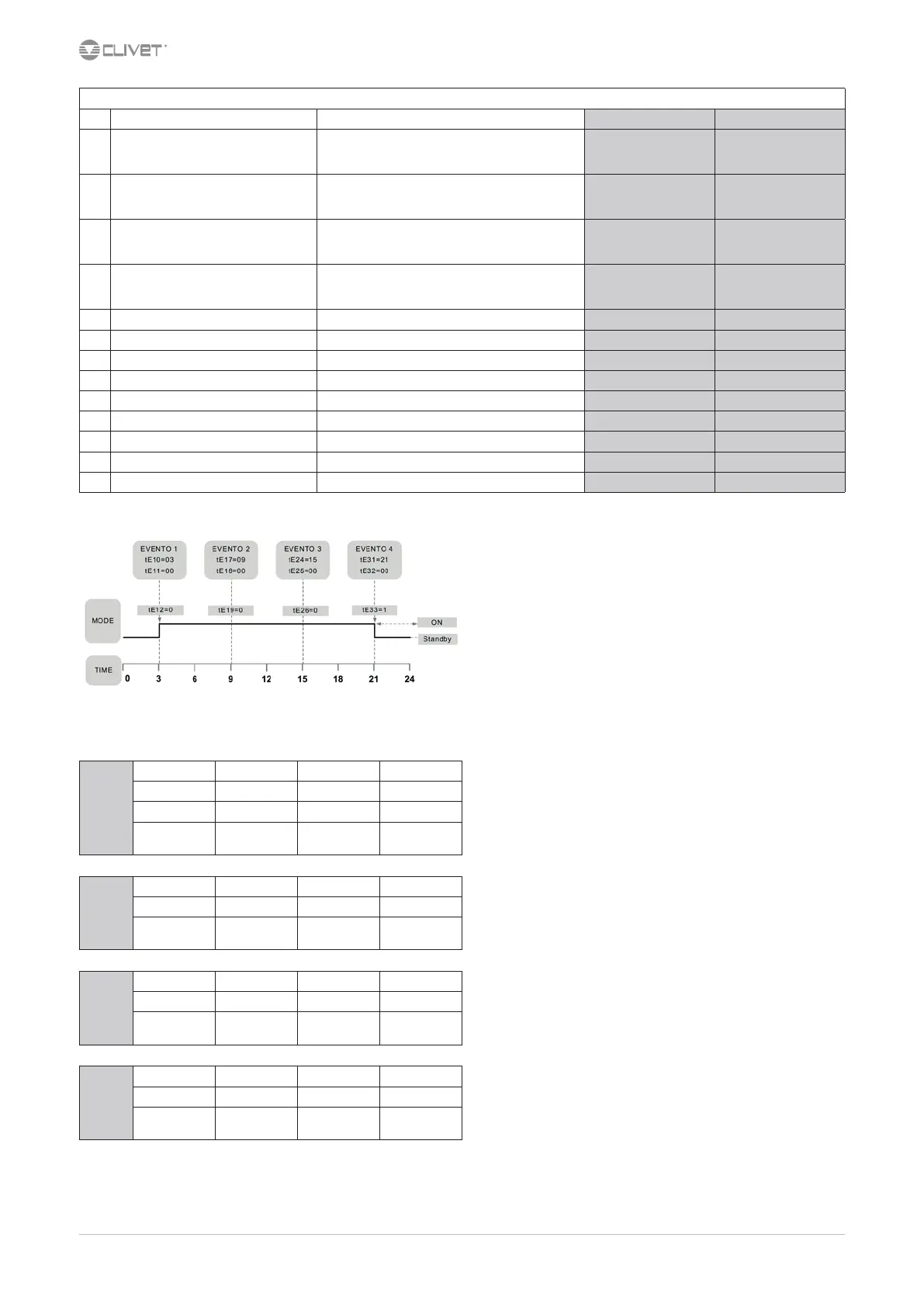

Example: scheduling 1
Events parameters
Event 1
Sched. 1 (par.) Sched. 2 (par.) Sched. 3 (par.)
Time tE10 tE38 tE66
Minutes tE11 tE39 tE67
Mode 0= on
1= standby
tE12 tE40 tE68
Event 2
Time tE17 tE45 tE73
Minutes tE18 tE50 tE74
Mode 0= on
1= standby
tE19 tE47 tE75
Event 3
Time tE24 tE52 tE80
Minutes tE25 tE53 tE81
Mode 0= on
1= standby
tE26 tE54 tE82
Event 4
Time tE31 tE59 tE87
Minutes tE32 tE60 tE88
Mode 0= on
1= standby
tE33 tE61 tE89
