CLIVET MSE-SC 65D User Manual

16 MSE-SC 65D-180F M43X41C6-03

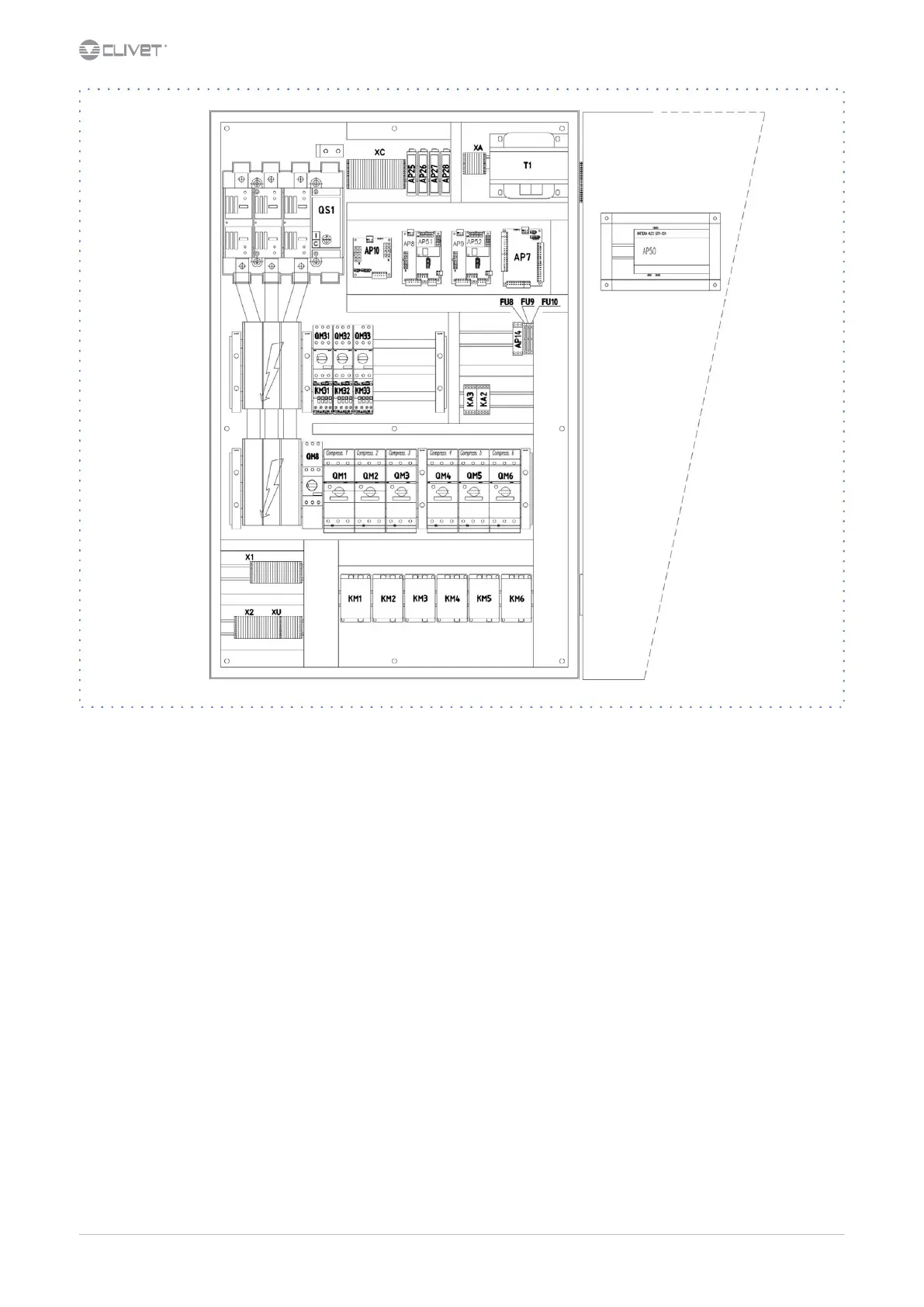

AP7 Main control module FU10 230V aux. circuit fuse
AP8 Compressor control module KA2 Auxiliary relays
AP9 Compressor control module KA3 Auxiliary relays
AP10 Pumps management module utility side KM1-2-3
KM4-5-6
Compressor contactor
AP14 Phase monitor KM31...33 Utility side pump control
AP25 CAN TO CAN converter module QM1...6 Compressor thermal magnetic circuit breaker
AP26 Gateway LonWorks QM8 Auxiliary circuit thermal magnetic circuit breaker
AP27 CAN TO MODBUS converter module QM31...33 Pump motor overload cutout
AP28 DATALOGGER module QS1 Main isolator switch
AP50 Storage battery ST10 High temperature safety thermostat
AP51 / 52 Electronic thermostatic management T1 Auxiliary circuit transformer
FU8 12V aux. circuit fuse XC Terminal block of the customer connections
FU9 24V aux. circuit fuse
Internal unit
