12.2 Partial energy recovery
A conguration which enables the production of hot water free-of-charge while operating in the cooling mode, thanks to the partial recovery
of condensation heat that would otherwise be rejected to the external heat source.
When the temperature of the water to be heated is particularly low, it is wise to insert a ow-rate control valve into the system water circuit,
in order to maintain the temperature at the recovery output at above 35°C and thus avoid the condensation of the refrigerant into the partial
energy recovery device.

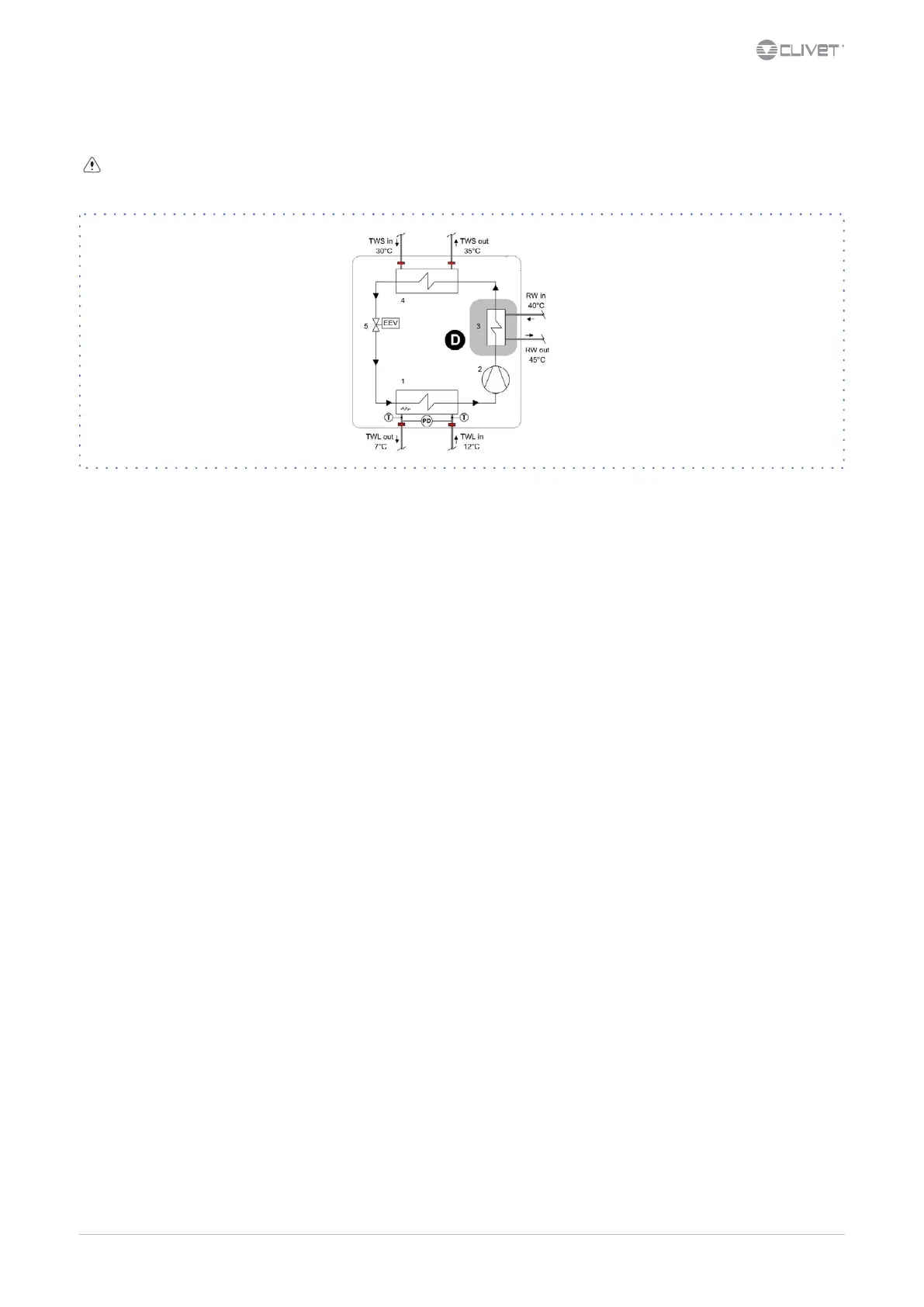

D - Partial recovery device
1. Internal exchanger (evaporator)
2. Compressor
3. Recovery exchanger
4. External exchanger (condenser)
5. Electronic expansion valve
TWS in - Water inlet source side
TWS out - Water outlet source side
TWL in - Water inlet user side
TWL out - Water output user side
RW in - Recovery water inlet
RW out - Recovery water outlet
T - Temperature probe
PD - Dierential pressure switch
