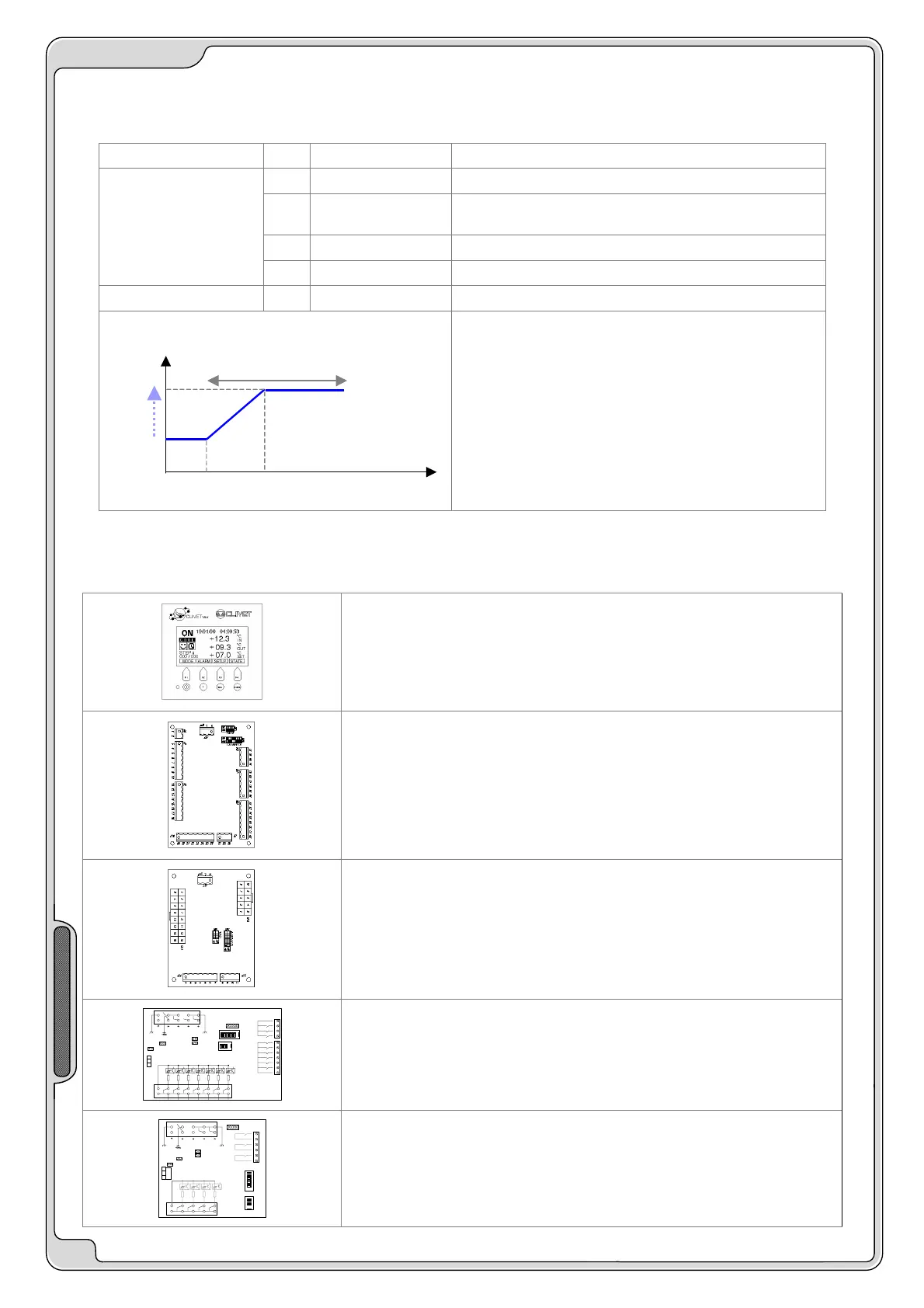

CLIVET WSAT-SC 180F Series User Manual

M01W45H6-06
WSAT-SC
75C-180F
- ELECTRICAL CONNECTIONS -
28
WATER RESET - Optional
It allows the automatic correction of the set-point, according to an external signal of 4-20 mA or 0-10 vcc.
The working process is similar to the above mentioned process. It is necessary the parameter configuration.
MENU NUM Parameter name meaning
11 MaxCWRC WR Summer correction max. value
75 WaterReset
Water Reset enabling:
0 = no; 1 = COOL only; 2 = HEAT only; 3 = always
105 SWRMaxC Summer MAX correction signal
parameter
control
waterreset
108 SWRMinC Summer MIN correction signal
parameter-set-sensors 83 TypeWR Inlet signal type: 0=0-10V ; 1=4-20mA
SUMMER
°C
set point COMPENSATO
par 108 par 105
4 mA 20 mA
par11
CLIVET TALK MODULAR SYSTEM COMPOSITION
CLIVET TALK system is made up of different modules connected to each other with the CAN OPEN protocol.
The system configuration varies according to the typology of the unit and of the accessories: not always the represented
electric modules are all presents on the unit.
INTERFACE
code C5110606
The interface module allows for the control of the operations of the whole machine, the
programming of the different adjustment parameters and also to display the alarms and
the unit status.
CENTRAL MODULE
code C5110694
The central module manages the system configuration, the working mode, the set point,
the thermal adjustment, remote inputs.
SCREW COMPRESSOR MODULE
code C5110705
It manages the cooling circuit (compressors, fans, valves) and relative safety devices.
HL
gn
d
JUMP4
DIP1
DIP2
STRIP
gnd
OFF
ON
1234
OFF
ON
12345678
JUMP1
JUMP2
JUMP3
13579
24810 6
CN2
CN1
161412108642
15131197531
J22
J15
8
91011
1
2
3
45
6
7
COMPRESSOR MODULE - TANDEM / TRIO
CODE C5110673 (TANDEM) – C5110672 (TRIO)
It manages the cooling circuit (compressors, fans, valves) and relative safety devices.
HL
gnd
J17
J12
CN1
CN2
DIP1
DIP2
JUMP4
STRIP
gnd
OFF ON
1234
OFF ON
12345678
123456
97531
108426
246810
13579
JUMP1
JUMP2
JUMP3
EVAPORATOR MODULE
CODE C5110674
It manages components, safety devices, inputs and outputs relative to the water circuit
(pumps, differential manostat, temperature probes)
