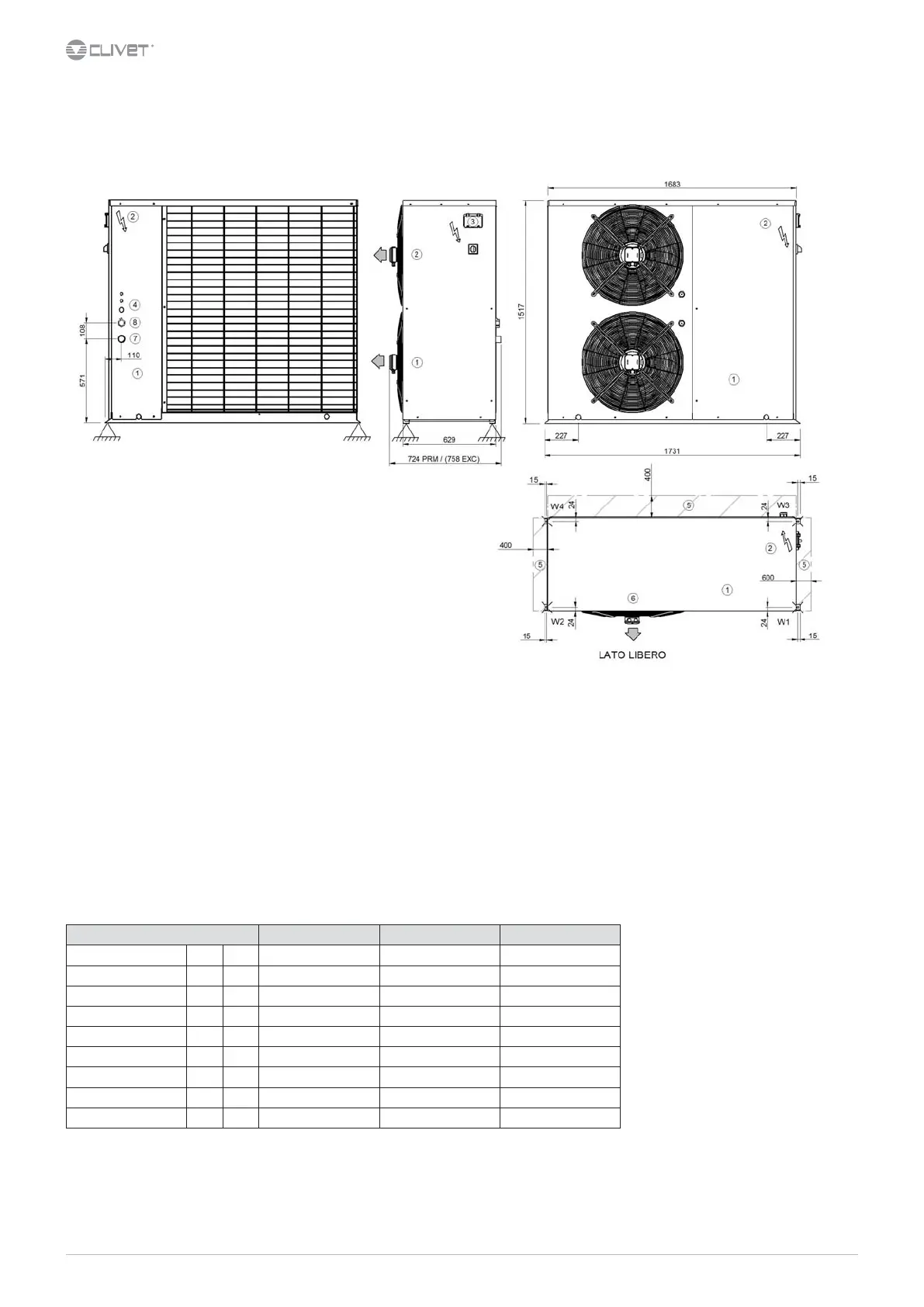

Dimensional drawings - PREMIUM Version
ELFOEnergy Extended Inverter 121 - 131 - 141
1. Compressor compartment
2.
Electr
ical panel
3.
Unit control keypad
4. Power input
5. Functional spaces
6.
Electric fan (supply - r
eturn)
7.
Internal exchanger water inlet (GAS F 1 1/4”)
8. Internal exchanger water outlet (GAS F 1 1/4”)
(M) Air supply
Size 121 131 141
Length mm 1731 1731 1731
Depth mm 724 724 724
Height mm 1517 1517 1517
W1 kg 65 65 65
W2 kg 35 35 35
W3 kg 85 85 85
W4 kg 55 55 55
Operating weight kg 240 240 240
Shipping weight kg 250 250 250
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
DABQ9121 REV01
03/11/2015
