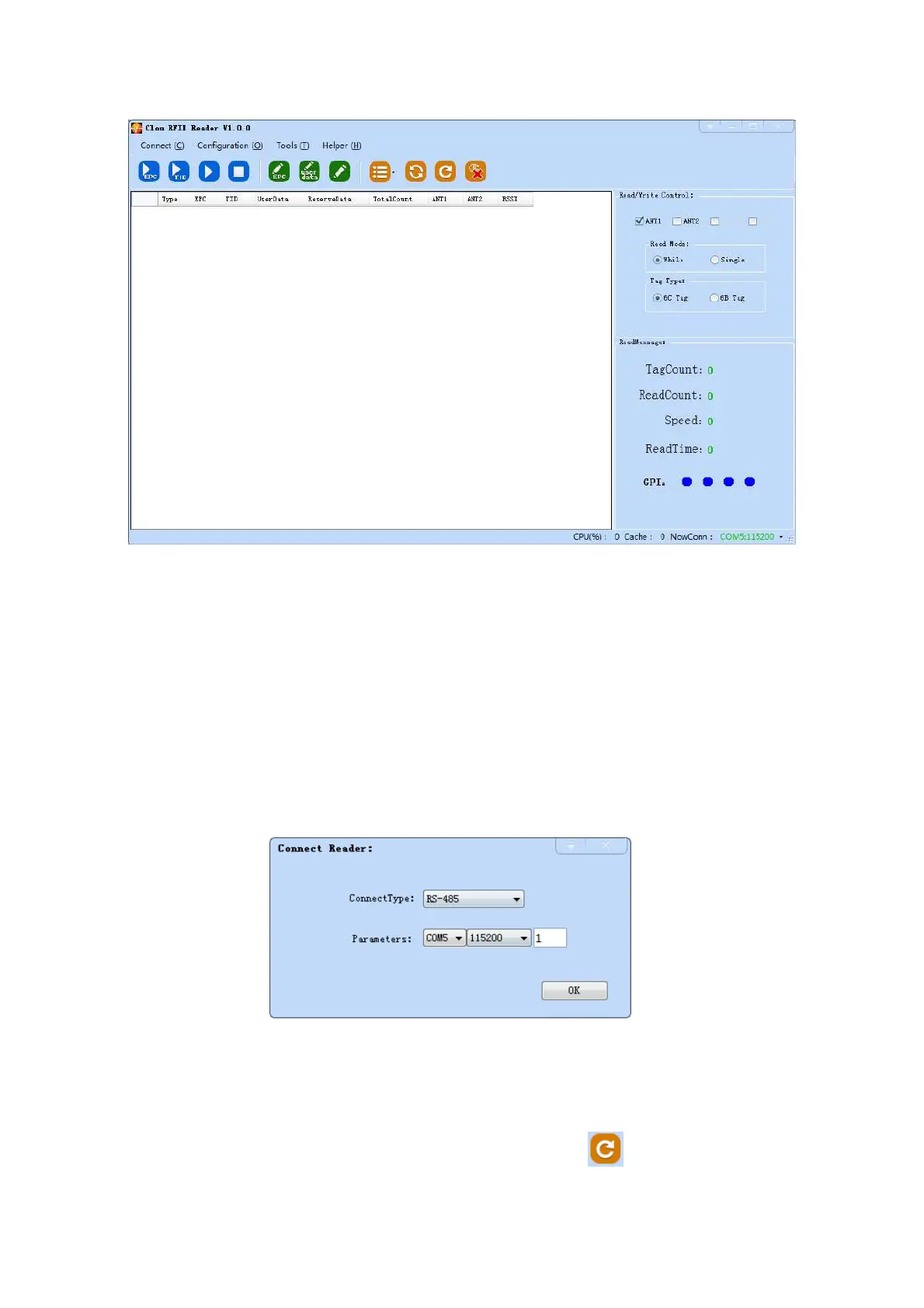

Picture 4‐2 RS232 connection successful
4.4.1.2 RS485 connection
Choose “485 connection ﴾COM﴿” in the draw‐down list of connection way, choose “COM?” ﴾“?” stands for
COM No.”﴿, choose communicate rate as “115200”, input RS485 address and then click “OK” button. As per in
picture 4‐3.
Picture4‐3 485 communication connection
RS485 address default is 1.
RS485 address range is 1~255.
