ACCELERATOR AND BRAKE PEDAL GROUP Pedal Group
2005 Precedent IQ System Electric Golf Car Maintenance and Service Manual Page 5-3
5
Pedal Group Removal, Continued:
7. Loosen turnbuckle (6) until the threaded rod from the pedal group is free of the turnbuckle.
8. Remove two screws (2) on the driver side of the pedal group and two screws (1) on the passenger side
of the pedal group.
9. Slightly lift pedal group from the vehicle to gain access to the connections to the MCOR on the passenger
side of the pedal group.
10. Disconnect the electrical connectors at the MCOR.
11. Remove two screws (1) to separate the MCOR from the pedal group (Figure 5-3, Page 5-3).
MCOR
The pedal group for the Precedent electric vehicle includes a Motor Controller Output Regulator (MCOR)
mounted on the side of the pedal group. The MCOR detects the position of the GO pedal and sends a corre-
sponding voltage to the motor controller.
DEBRIS SHIELDS
Debris shields on the top face of the pedal group prevent excessive debris from contacting the moving parts
of the pedal group. Both shields (3 and 4) are held in place with screws (1) and washers (2) (Figure 5-4,
Page 5-5). When shields are replaced, tighten screws (1) to 53 in-lb (6 N·m).
BRAKE RETURN SPRING
ý
CAUTION
• Spring is under tension. Use caution when working with springs.
The brake return spring (5) provides the pressure needed to return the brake pedal to its upright position
(Figure 5-4, Page 5-5). One end of the spring attaches to a hook on pedal (11) and the other end attaches to
pedal base (12).

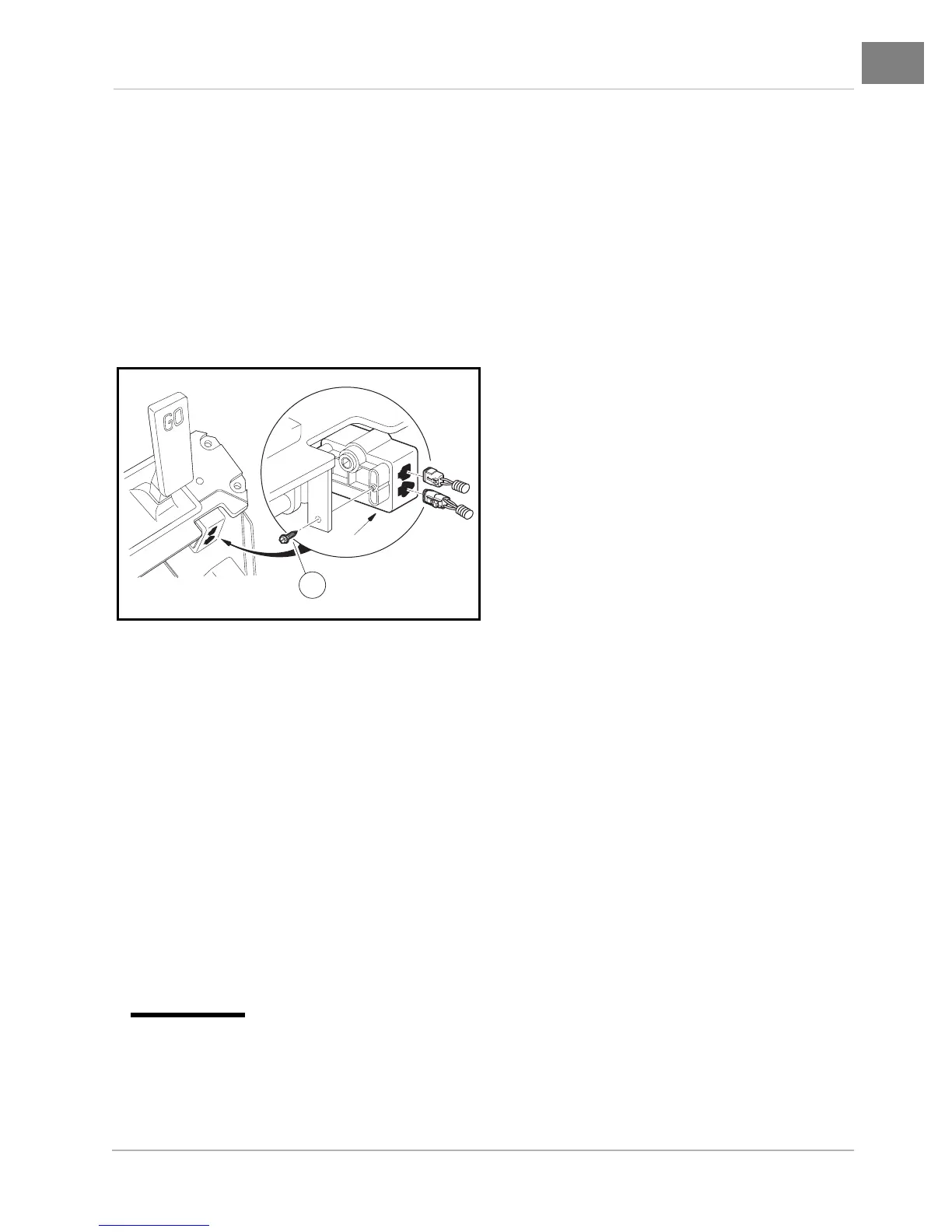

Figure 5-3 MCOR Removal
1
MCOR
