ONWARD HP NON-LIFTED 4-PASSENGER ELECTRIC
Operators Manual
TPCC01DU00EN020 (Edition A)
A strain relief and drip loop is necessary to prevent damage to the charger. The strain relief prevents
tension on the AC plug. The drip loop prevents water damage to the AC plug.

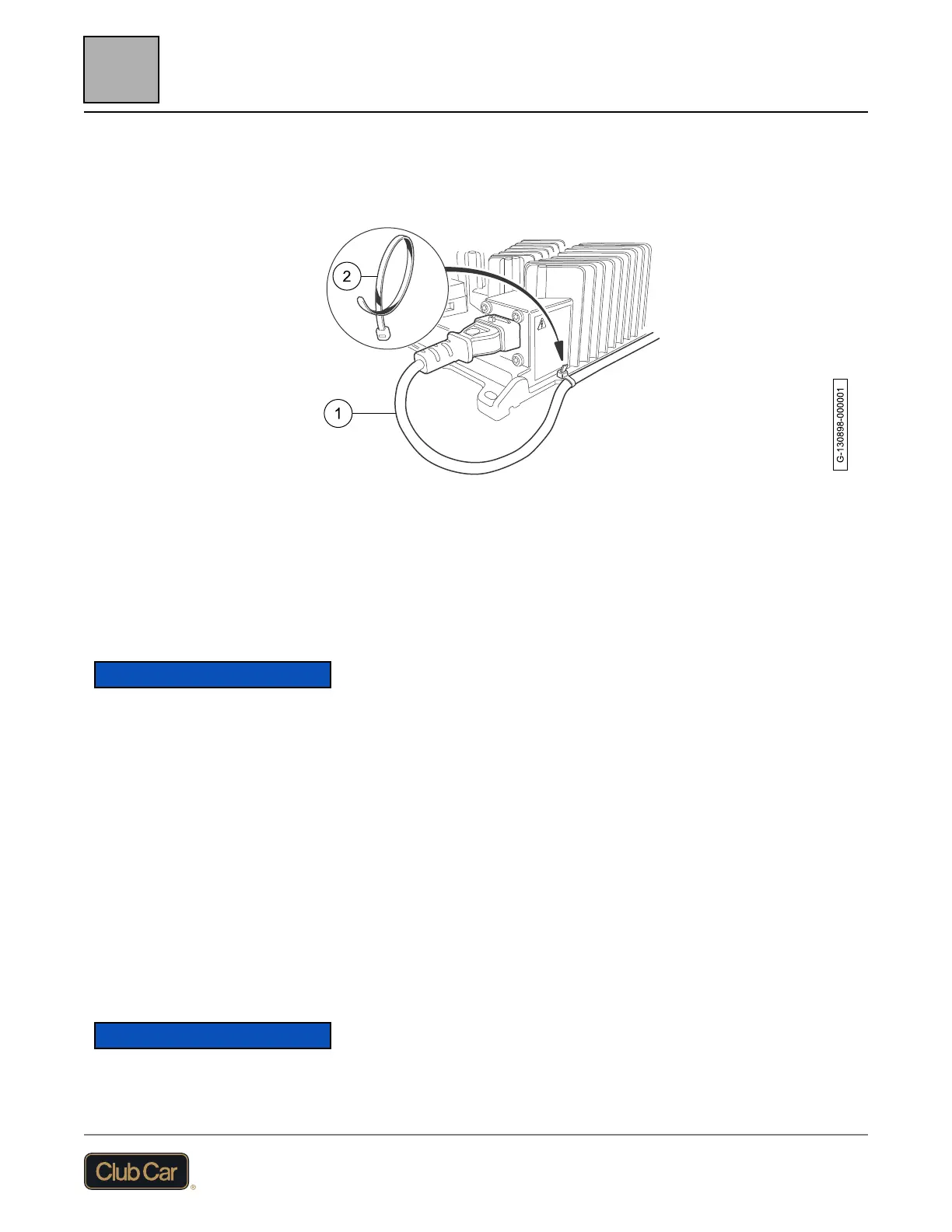

HOW TO MAKE STRAIN RELIEF AND DRIP LOOP
1. Connect the AC cord (1) into the AC plug.
2. Supply sufficient AC cord to make a drip loop and strain relief.
3. Secure the AC cord to the battery charger with a plastic cable tie (2).
INSPECTION AND MAINTENANCE
ELECTRICAL CORDS
NOTICE
AN ELECTRICAL SHORT IN THE DC CORD CAN CAUSE THE 30 AMP
FUSE TO BLOW. IF THERE IS DAMAGE TO THE DC CORD, SPEAK
WITH YOUR LOCAL DEALER OR DISTRIBUTOR.
Examine electrical cords for wear and damage before use. Immediately replace electrical cords for:
• Cracks
• Cuts
• Frayed wiring
• Insulation damage
• Loose connections
• Splices
Make sure that the DC electrical cord has the warning tag attached and that the warning tag is
readable. Replace a missing or damaged warning tag immediately.
ELECTRICAL PLUGS AND RECEPTACLES
NOTICE
IF THE PLUG PINS ARE BENT, SPEAK WITH YOUR LOCAL DEALER
OR DISTRIBUTOR FOR REPAIRS. DO NOT TRY TO REPAIR THE AC
CORD PLUG OR PINS.
Examine electrical plugs for wear and damage before use. Immediately replace electrical plugs for:
• Bent pins
