CM RX-600 - 9. Spare Consumable Parts; 9.1 Spare Consumable Parts

tensioner connecting the
machine body with a gear
motor
Replacement of reversing wheel
bearing and chain If needed
Disassembly and assembly of
shafts make according to fig
no. 5
Table no. 6
9.1 Spare consumable parts.

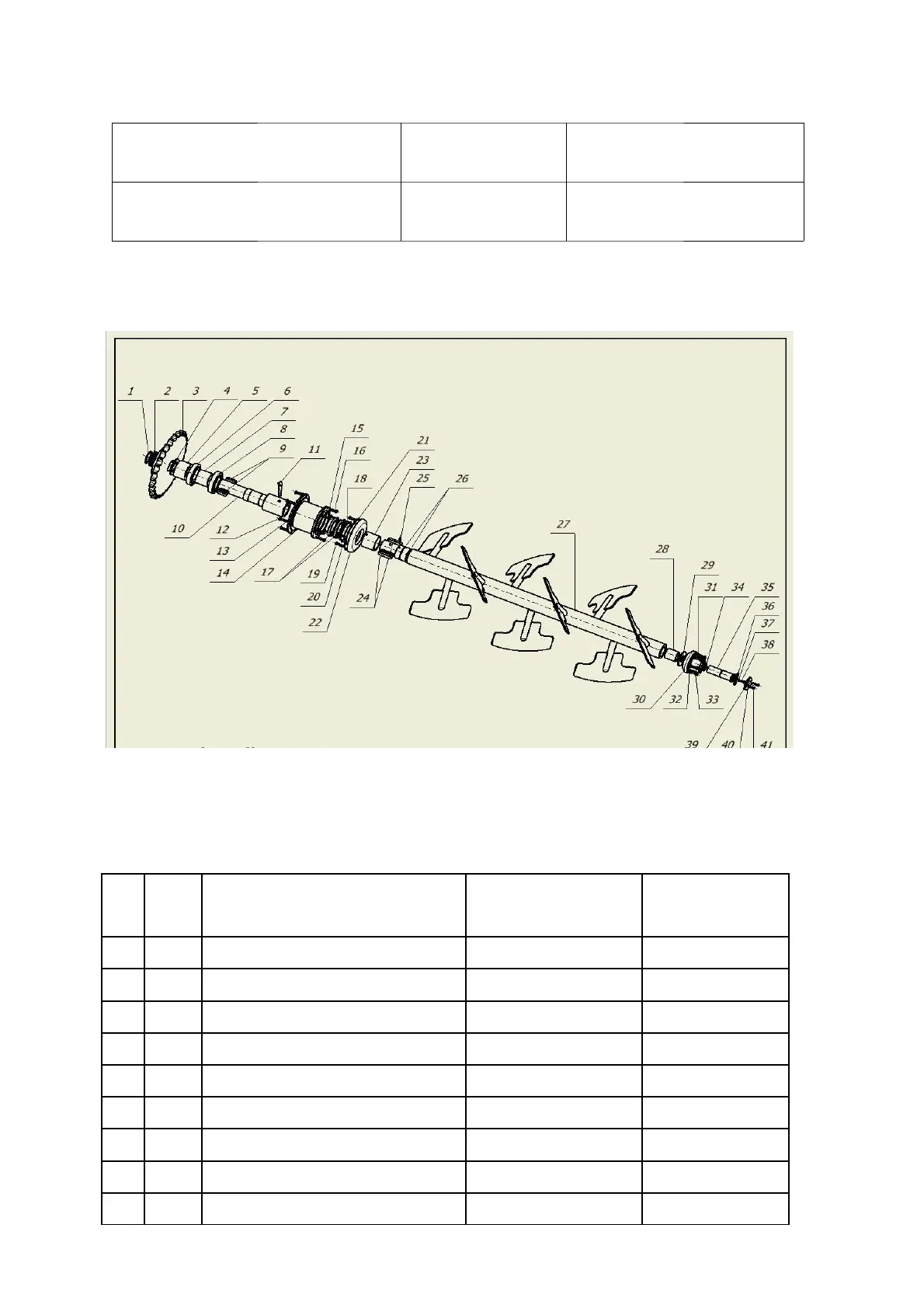

Fig. no. 5
Parts/units related to the agitator shaft presented on Fig. no.5, in table below:
No Qty Part /unit name Drawing/standard
no.
Designation
according
standard
1 1 Snap ring PN-81/M-85111 Z 50
2 1 Locking ring RX-600-01.20.005
3 1 Drive wheel of the agitator shaft RX-600-01.20.006
4 1 Pressure ring RX-600-01.20.003
5 1 Positioning sleeve:1 RX-600-01.20.004
6 1 Ball bearing PN-85/M-86100 55 x 90 x 18 2Z
7 1 Spacer RX-600-01.20.002
8 1 Bearing ball PN-85/M-86100 55 x 90 x 18 2Z
9 2
Parallel key
PN-91/M-85001 A A 14 x 12 x 50
10
