CM Valustar 2401 - Typical Wiring Diagrams

15

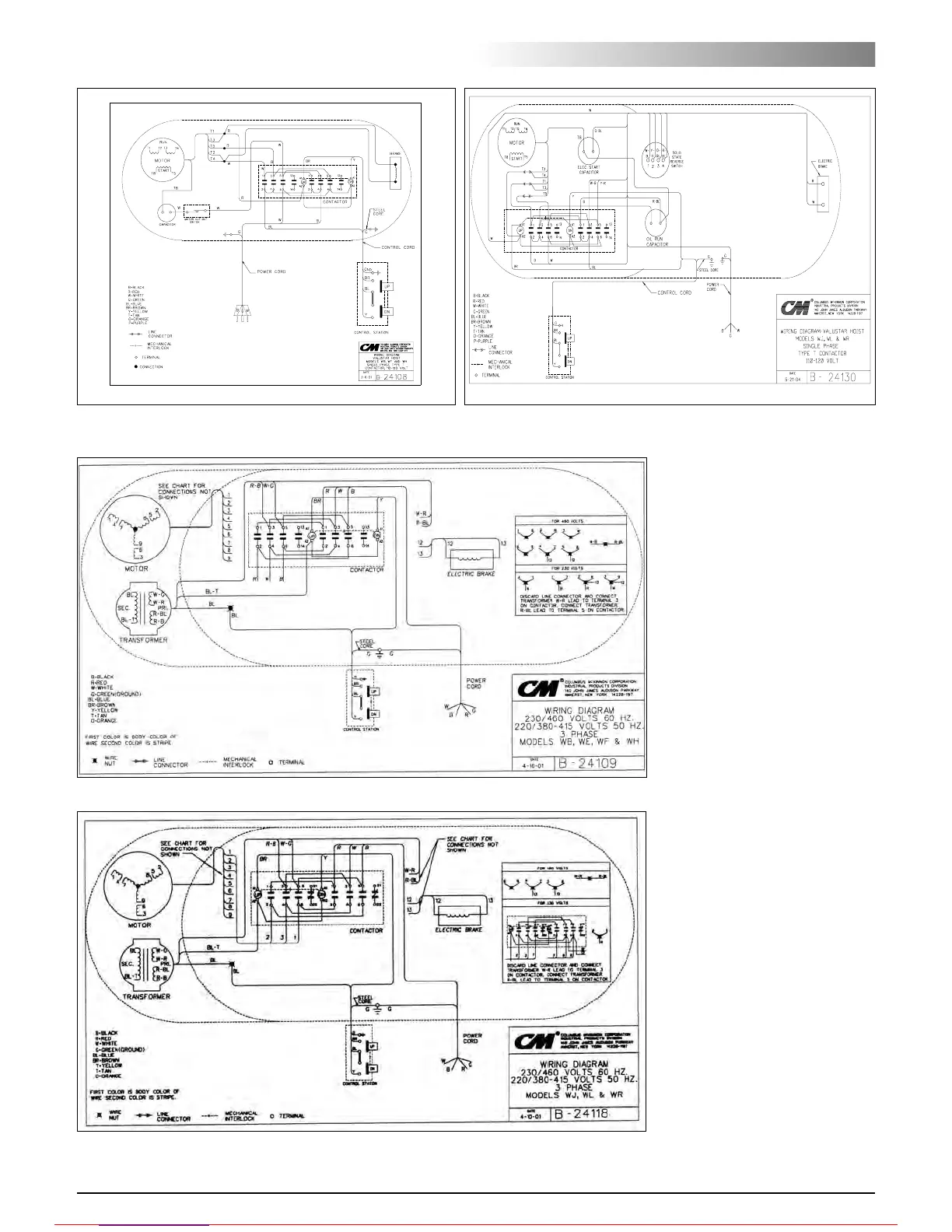

Figure 11. Typical Wiring Diagrams. Wiring Diagrams shown are representative. Consult diagram in Hoist or furnished with unit.
SINGLE PHASE-TYPE ‘T’ CONTACTOR
110-120 VOLT
SINGLE PHASE-TYPE ‘T’ CONTACTOR
110-120 VOLT
THREE PHASE
230/460-3-60
220/380-415-3-50
MODELS WB, WE, WF &
WH
THREE PHASE
230/460-3-60
220/380-415-3-50
MODELS WJ, WL & WR
